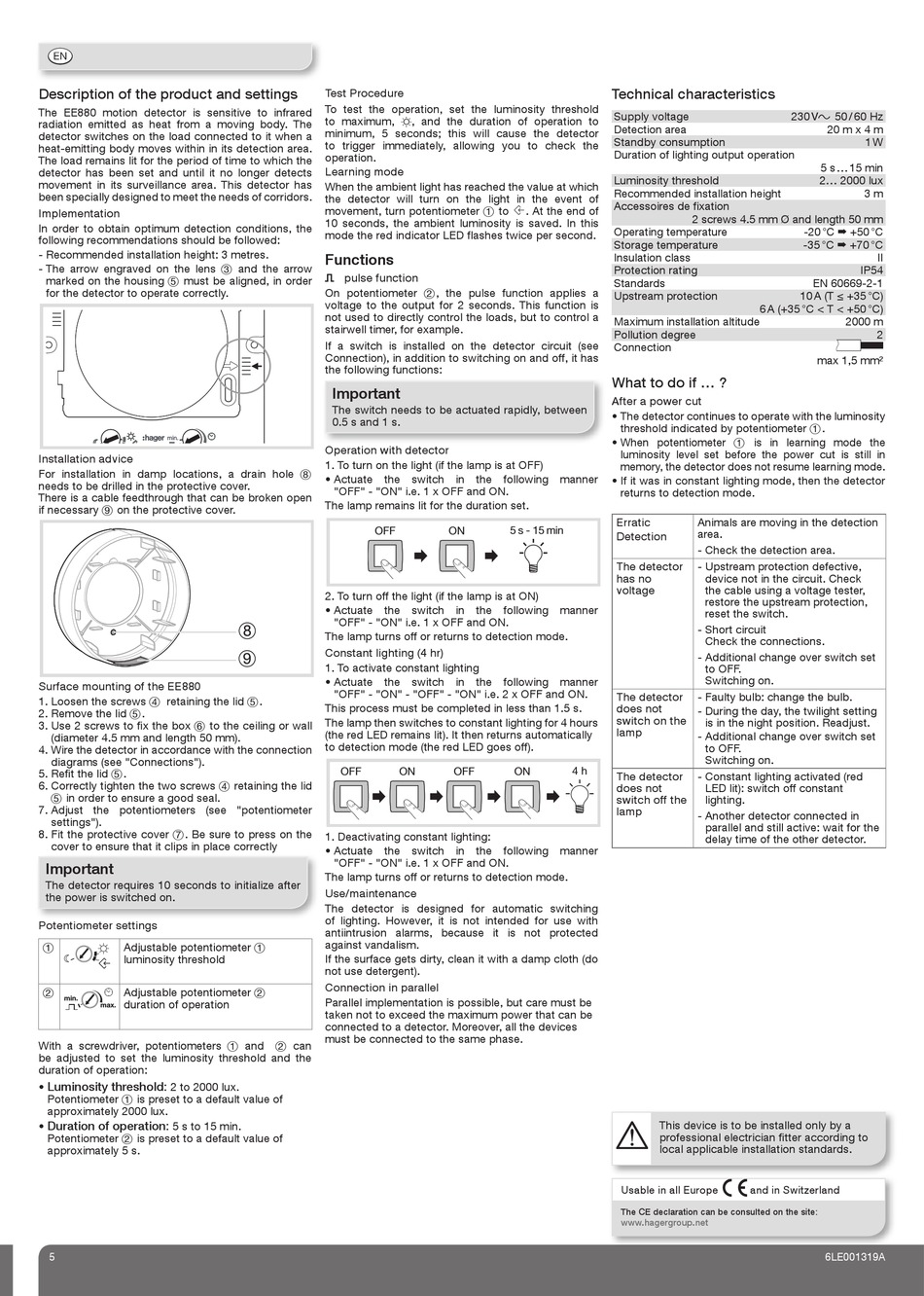

Description of the product and settings
The EE880 motion detector is sensitive to infrared
radiation emitted as heat from a moving body. The
detector switches on the load connected to it when a
heat-emitting body moves within in its detection area.
The load remains lit for the period of time to which the
detector has been set and until it no longer detects
movement in its surveillance area. This detector has
been specially designed to meet the needs of corridors.
Implementation
In order to obtain optimum detection conditions, the
following recommendations should be followed:
- Recommended installation height: 3 metres.
- The arrow engraved on the lens 3 and the arrow
marked on the housing 5 must be aligned, in order
for the detector to operate correctly.
min.
EE880 max.
Installation advice
For installation in damp locations, a drain hole 8
needs to be drilled in the protective cover.
There is a cable feedthrough that can be broken open
if necessary 9 on the protective cover.
Surface mounting of the EE880
1. Loosen the screws 4 retaining the lid 5.
2. Remove the lid 5.
3. Use 2 screws to fix the box 6 to the ceiling or wall
(diameter 4.5 mm and length 50 mm).
4. Wire the detector in accordance with the connection
diagrams (see "Connections").
5. Refit the lid 5.
6. Correctly tighten the two screws 4 retaining the lid
5 in order to ensure a good seal.
7. Adjust the potentiometers (see "potentiometer
settings").
8. Fit the protective cover 7. Be sure to press on the
cover to ensure that it clips in place correctly
Important
The detector requires 10 seconds to initialize after
the power is switched on.
Potentiometer settings
Adjustable potentiometer 1
1
luminosity threshold
Adjustable potentiometer 2
2
min.
duration of operation
max.
With a screwdriver, potentiometers 1 and 2 can
be adjusted to set the luminosity threshold and the
duration of operation:
• Luminosity threshold: 2 to 2000 lux.
Potentiometer 1 is preset to a default value of
approximately 2000 lux.
Duration of operation: 5 s to 15 min.
•
Potentiometer 2 is preset to a default value of
approximately 5 s.
3 5
Test Procedure
To test the operation, set the luminosity threshold
to maximum, y, and the duration of operation to
minimum, 5 seconds; this will cause the detector
to trigger immediately, allowing you to check the
operation.
Learning mode
When the ambient light has reached the value at which
the detector will turn on the light in the event of
movement, turn potentiometer 1 to
10 seconds, the ambient luminosity is saved. In this
mode the red indicator LED flashes twice per second.
Functions
V pulse function
On potentiometer 2, the pulse function applies a
voltage to the output for 2 seconds. This function is
not used to directly control the loads, but to control a
stairwell timer, for example.
If a switch is installed on the detector circuit (see
Connection), in addition to switching on and off, it has
the following functions:
Important
The switch needs to be actuated rapidly, between
0.5 s and 1 s.
Operation with detector
1. To turn on the light (if the lamp is at OFF)
• Actuate the switch in the following manner
"OFF" - "ON" i.e. 1 x OFF and ON.
The lamp remains lit for the duration set.
OFF ON
2. To turn off the light (if the lamp is at ON)
• Actuate the switch in the following manner
"OFF" - "ON" i.e. 1 x OFF and ON.
The lamp turns off or returns to detection mode.
Constant lighting (4 hr)
1. To activate constant lighting
• Actuate the switch in the following manner
"OFF" - "ON" - "OFF" - "ON" i.e. 2 x OFF and ON.
This process must be completed in less than 1.5 s.
The lamp then switches to constant lighting for 4 hours
(the red LED remains lit). It then returns automatically
to detection mode (the red LED goes off).
OFF ON OFF
1. Deactivating constant lighting:
• Actuate the switch in the following manner
"OFF" - "ON" i.e. 1 x OFF and ON.
The lamp turns off or returns to detection mode.
Use/maintenance
The detector is designed for automatic switching
of lighting. However, it is not intended for use with
antiintrusion alarms, because it is not protected
against vandalism.
If the surface gets dirty, clean it with a damp cloth (do
not use detergent).
Connection in parallel
Parallel implementation is possible, but care must be
taken not to exceed the maximum power that can be
connected to a detector. Moreover, all the devices
must be connected to the same phase.

Technical characteristics

Supply voltage
Detection area
Standby consumption
Duration of lighting output operation
Luminosity threshold
Recommended installation height
Accessoires de fixation
. At the end of
Operating temperature
Storage temperature
Insulation class
Protection rating
Standards
Upstream protection
Maximum installation altitude
Pollution degree
Connection
What to do if ... ?
After a power cut
• The detector continues to operate with the luminosity
threshold indicated by potentiometer 1.
• When potentiometer 1 is in learning mode the
luminosity level set before the power cut is still in
memory, the detector does not resume learning mode.
• If it was in constant lighting mode, then the detector
returns to detection mode.
Erratic
5 s - 15 min
Detection
The detector
has no
voltage
The detector
does not
switch on the
lamp
ON 4 h
The detector
does not
switch off the
lamp
This device is to be installed only by a
professional electrician fitter according to
local applicable installation standards.
Usable in all Europe
The CE declaration can be consulted on the site:
www.hagergroup.net
230 V v 50 / 60 Hz
20 m x 4 m
1 W
5 s ... 15 min
2... 2000 lux
3 m
2 screws 4.5 mm Ø and length 50 mm
-20 °C ➡ +50 °C
-35 °C ➡ +70 °C
IP54
EN 60669-2-1
10 A (T ≤ +35 °C)
6 A (+35 °C < T < +50 °C)
2000 m
max 1,5 mm²
Animals are moving in the detection
area.
- Check the detection area.
- Upstream protection defective,
device not in the circuit. Check
the cable using a voltage tester,
restore the upstream protection,
reset the switch.
- Short circuit
Check the connections.
- Additional change over switch set
to OFF.
Switching on.
- Faulty bulb: change the bulb.
- During the day, the twilight setting
is in the night position. Readjust.
- Additional change over switch set
to OFF.
Switching on.
- Constant lighting activated (red
LED lit): switch off constant
lighting.
- Another detector connected in
parallel and still active: wait for the
delay time of the other detector.
å
and in Switzerland
6LE001319A
