(122IO) DELUXE WALL MOUNT SURFACE SKIMMER ENGLISH SIZE: 4.875" X 7.25" PANTONE 295U 04/15/2016

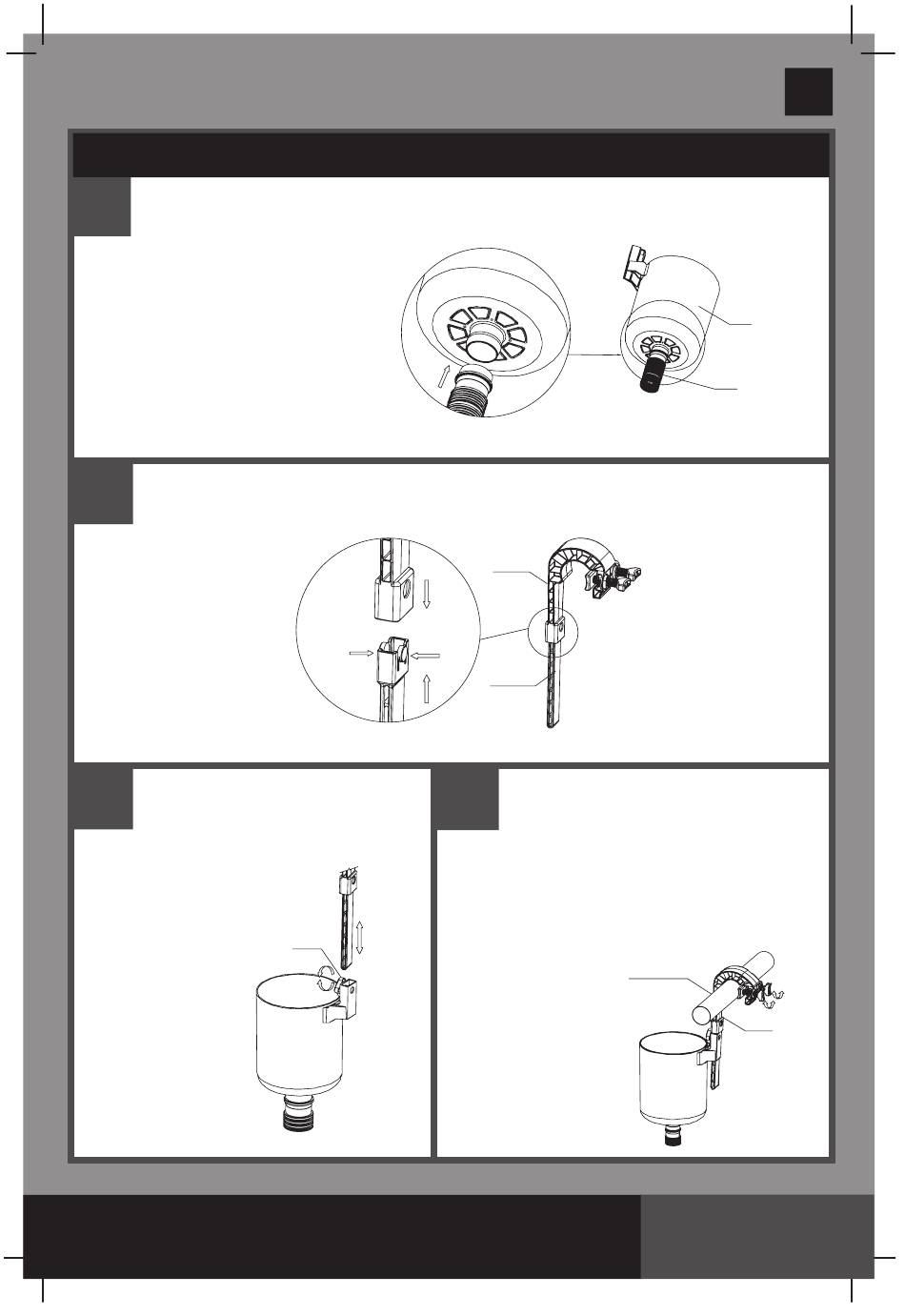

HOOK ASSEMBLY FOR METAL FRAME POOLS

1
Connect the skimmer
hose (11) to the
skimmer (5)
bottom connector.
2
Assemble the hook as shown.
3
Loosen the skimmer
screw (6), attach the
assembled hook and hand
tighten the screw.
NOTE: Do not over
tighten or use tools
such as pliers.
S AVE THESE INSTRUCTIONS
Insert
Press
Press
Insert
4
FRAME Pool Top Beam near the water
outlet connector (lower hose
connection). Adjust the hook by
adjusting the two dove-tail screws, to
be tight on the top
6
Slide
beam. Ensure
the hook
is securely
tightened
over the
pool top
beam.
10
7
Place the whole assembled
hook unit over the top of a
Top Beam
English
122A
5
11
10
