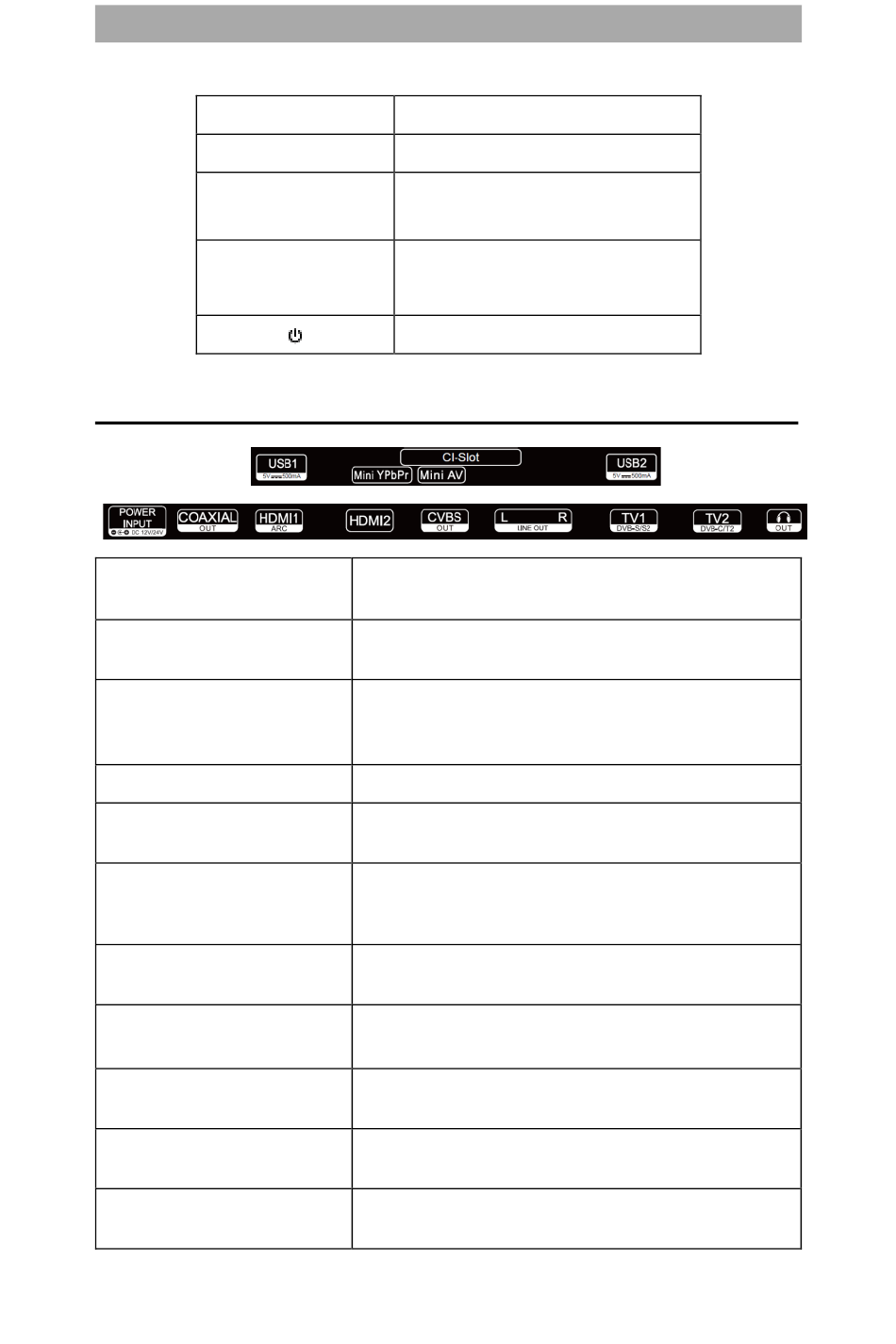

CONNECTIONS
POWER INPUT
(DC IN: 12V / 24V)
COAXIAL (OUT)
HDMI 1 (ARC)
HDMI 2
CVBS (OUT)
L / R (LINE OUT)
TV1 (DVB-S/S2)
TV2 (DVB-C/T2/T2HD)
EARPHONE (OUT)
USB 1
USB 2
MINI AV
MINI YPbPr
CI+SLOT
INPUT Open the input sources menu
MENU Device menu: Open / Close
CH+ CH+: Next program
CH- CH-: Previous program
VOL+
VOL+: Volume up
VOL-: Volume down
VOL-
Power: On / Off (Standby)
Mains connection for the power supply unit or the 12V
car adapter.
Digital audio output for external audio devices (e.g.
amplifiers or soundbars).
Connection for an external HDMI device. e.g. Blu Ray
player / soundbar. HDMI 1 is ARC capable.
Only reflects the TV picture (no sound) from the AV input.
Cinch audio output. For connecting external audio
devices.
TV1: Connection of the satellite antenna.
TV2: Connection of the DVB-T antenna or the cable
system.
3.5mm headphone jack. The internal speakers are muted
when in use.
2x USB connection for USB sticks and hard drives (max.
1TB).
Connection of external AV devices via adapter (not
included) e.g. video recorder
Connection of external AV devices via adapter (not
included) e.g. video recorder.
Slot for CI + modules for decrypting encrypted TV
programs.
