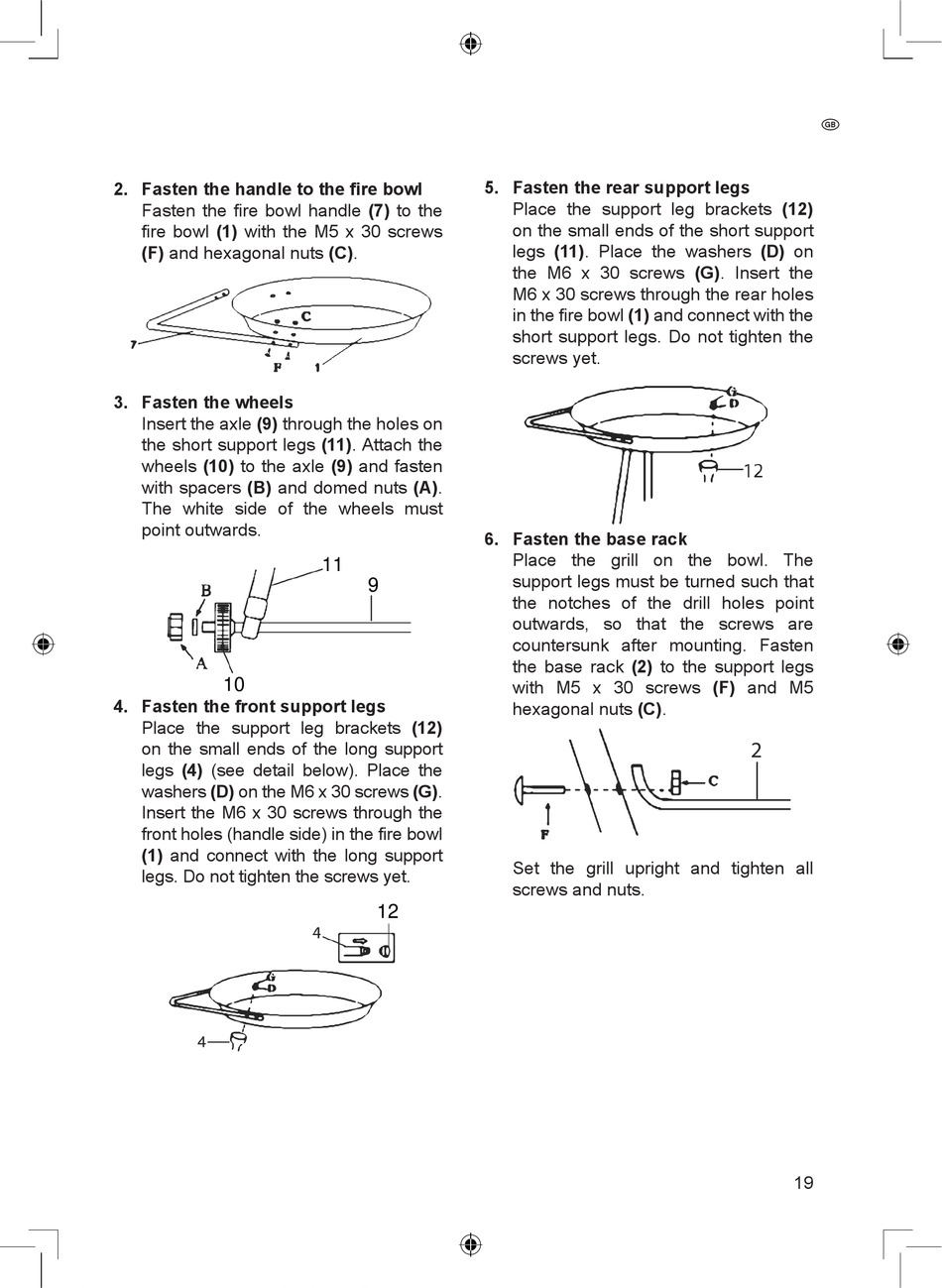

2. Fasten the handle to the fire bowl
Fasten the fire bowl handle (7) to the
fire bowl (1) with the M5 x 30 screws
(F) and hexagonal nuts (C).
3. Fasten the wheels
Insert the axle (9) through the holes on
the short support legs (11). Attach the
wheels (10) to the axle (9) and fasten
with spacers (B) and domed nuts (A).
The white side of the wheels must
point outwards.
10
4. Fasten the front support legs
Place the support leg brackets (12)
on the small ends of the long support
legs (4) (see detail below). Place the
washers (D) on the M6 x 30 screws (G).
Insert the M6 x 30 screws through the
front holes (handle side) in the fire bowl
(1) and connect with the long support
legs. Do not tighten the screws yet.
5. Fasten the rear support legs
6. Fasten the base rack
11
9
12
Place the support leg brackets (12)
on the small ends of the short support
legs (11). Place the washers (D) on
the M6 x 30 screws (G). Insert the
M6 x 30 screws through the rear holes
in the fire bowl (1) and connect with the
short support legs. Do not tighten the
screws yet.
Place the grill on the bowl. The
support legs must be turned such that
the notches of the drill holes point
outwards, so that the screws are
countersunk after mounting. Fasten
the base rack (2) to the support legs
with M5 x 30 screws (F) and M5
hexagonal nuts (C).
Set the grill upright and tighten all
screws and nuts.
