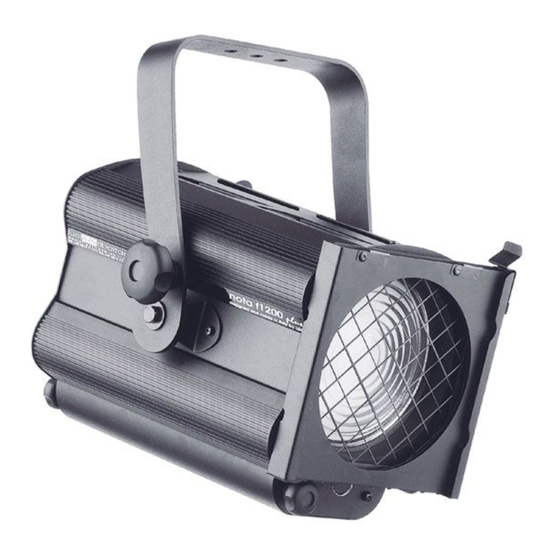

Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing ® 13851000 Nota f1000 plus P.O. black 120V Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
Seite 2
LDR Nota f1200 PO 120V User’s Manual – 1.0 ENGLISH – TABLE OF CONTENTS Important safety norms …………………………………………………………………….... page 2 1. Check box content…………………………………………………………………………. page 3 2. Weight and dimensions…………………………………………………….... page 3 3. Important notice before installation ……………………………………………… page 3 4. Choosing the lamp …………………………………………………………….………….. page 4 5. Lamp‐holder setting ……………………………………………………………………… page 4 6. Installation or replacement of the lamp…………………………………….…. page 4 7. Installation……… ………………………………………………………………………….. page 4 8. Connect to the power supply …………….………………………………………… page 4 9. Cleaning and maintenance ………………………………………………………….. page 5 10. Spare parts ………………………………………………………………………………….. page 5 11. Warranty ……………………………………………………………………………… … …… page 5 ...
Seite 3
LDR Nota f1200 PO 120V User’s Manual – 1.0 ENGLISH Thanks for having chosen Luci della Ribalta srl. We hope our products and services meet your requirements, but should this not be the case, we kindly ask you to contact us directly to help us supply you and all our customers with better and better quality. The product you purchased has been manufactured with maximum care and selected components, but should you, for reasons beyond our control, have received it damaged, we kindly ask you to contact the dealer who ...
Seite 4
LDR Nota f1200 PO 120V User’s Manual – 1.0 * fixing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original manufacturer’s components. * replacement of any part of the wiring system must be carried out exclusively by professional personnel in compliance with the original wiring diagrams and with components identical or ...
Seite 5
LDR Nota f1200 PO 120V User’s Manual – 1.0 4. CHOOSING THE LAMP Should the fixture you have purchased have been delivered without lamp, please refer to the “Compatible Lamps” section on the LDR product’s specification sheet or choose from one of the below‐listed lamps: 1000W G22 120V EGT 3200K 300 hours LDR recommends Philips lamps 5. LAMP‐HOLDER SETTING No lamp‐holder setting is available on this model. 6. INSTALLATION OR REPLACEMENT OF THE LAMP • make sure the unit is cold and disconnected from the mains • if replacing a lamp use a proper thermal protection for your hands (ex. gloves) in case the lamp is still hot • protect the lamp from abrasion and scratches. Do not install or use cracked or broken lamps. In case a lamp cracks or breaks, disconnect from power supply, allow the unit to cool and remove/replace the broken lamp • never touch the lamp bulb with bare hands. Oil and grease can contaminate the quartz surface and reduce the lamp performance and life • do not remove the plastic protection around the lamp until after having installed the lamp • open the lamp‐tray by turning (anti‐clockwise) the ¼ turn fastener. The lamp‐tray will hinge open • insert the lamp in the lamp holder. MAKE SURE THE LAMP IS CORRECTLY POSITIONED AND ...
Seite 6
LDR Nota f1200 PO 120V User’s Manual – 1.0 • To perform a correct wiring, please note that the cores in this mains lead are colour‐coded as follows: Ground: green+yellow – Neutral: blue ‐ Live: brown In case the colours of the cores do not correspond to the colour of the connection points on your plug, please proceed as follows: • The green or green and yellow core must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐yellow • The blue core must be connected to the connection point marked with the letter N or with the symbol or coloured in black • The brown core must be connected to the connection point marked with the letter L or with the symbol or coloured in red • Before you finally position this product for use, temporarily connect it to a properly fused power supply to check the lamp works correctly. • Protect each product with a fuse suitable to the lamp you are using. Should you connect this product to a dimmer pack, please make sure this is fitted with suitable protective fuses. 9. CLEANING AND MAINTENANCE To ensure maximum performance of the product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. • clean all reflective parts such as reflector, mirror and lens opening the product, if necessary. • check the lamp and the lenses and replace any visibly damaged component. • clean air ducts and fans in order to allow proper ventilation activity on the product. ...
Seite 7
LDR Nota f1200 PO 120V User’s Manual – 1.0 ITALIANO Grazie per aver scelto Luci della Ribalta srl. Speriamo che i nostri prodotti e servizi soddisfino le vostre esigenze, ma se così non fosse vi preghiamo di contattarci direttamente per aiutarci ad offrire a voi ed a tutti i nostri clienti un servizio sempre migliore. Il prodotto che avete acquistato è stato fabbricato con il massimo della cura e con componenti di elevata qualità. Nel caso in cui, per ragioni indipendenti dalla nostra volontà, l’aveste ricevuto danneggiato, vi preghiamo di contattare il rivenditore che ve l’ha fornito. Per aiutarvi in questa evenienza, abbiamo inserito un modulo di reclamo alla fine di questo manuale. Leggete attentamente questo manuale prima di utilizzare questa apparecchiatura elettrica ...
Seite 8
LDR Nota f1200 PO 120V User’s Manual – 1.0 * sostituite la lampada, lo specchio e le lenti se danneggiate o deformate dal calore. Assicuratevi che la lampada sia fredda prima di iniziarne la sostituzione. Per eseguire una corretta installazione della lampada vi preghiamo di attenervi alle istruzioni del fabbricante riportate all’interno della confezione della lampada stessa ed al relativo capitolo di istruzioni di questo manuale. * assicuratevi che il prodotto sia scollegato dall’alimentazione e che sia freddo prima di effettuare la sostituzione del fusibile o di qualsiasi altro componente. * la riparazione e/o sostituzione di qualsiasi componente di questo prodotto deve essere effettuata esclusivamente da personale qualificato in conformità con le specifiche norme di ...
Seite 9
LDR Nota f1200 PO 120V User’s Manual – 1.0 3. IMPORTANTE ‐ PRIMA DELL’INSTALLAZIONE • Assicuratevi che il gancio di sospensione sia correttamente montato e ben fissato allo spinotto sulla sommità della forcella • Assicuratevi che il prodotto ed ogni suo accessorio (colour scroller, paraluce) vengano saldamente fissati alla struttura di supporto con un cavo di sicurezza individuale. • Assicuratevi che nessuno dei cavi di sicurezza impedisca in ogni modo il libero movimento del prodotto. 4. LAMPADE COMPATIBILI Nel caso in cui il prodotto vi fosse stato fornito senza lampada, vi preghiamo di consultare la ...
Seite 10
LDR Nota f1200 PO 120V User’s Manual – 1.0 7. INSTALLAZIONE Questa apparecchiatura è dotata di una forcella di sospensione con controllo a palo che consente un'inclinazione di ± 90° sull'asse verticale ed una rotazione di 360° sul piano orizzontale. La forcella è dotata si uno spinotto DIN 16mm per il montaggio dell'apparecchiatura. Prima di installare questo prodotto assicuratevi che la struttura a cui lo state per fissare ne ...
Seite 11
• controllate lo stato dei cablaggi interni ed esterni, e sostituite qualsiasi cavo fosse danneggiato o deformato dal calore o da agenti meccanici. 10. PARTI DI RICAMBIO Tutti i componenti sono disponibili come parti di ricambio. Raccomandiamo l’uso di componenti originali LDR. Nel caso in cui doveste identificare ed ordinare un componente quale parte di ricambio, vi preghiamo di rivolgervi al nostro servizio di assistenza tecnica. 11. GARANZIA La nostra garanzia copre tutti i difetti strutturali e di assemblaggio per un periodo di 12 mesi dalla ...
Seite 12
LDR Nota f1200 PO 120V User’s Manual – 1.0 DEUTSCH Herzlichen Dank, daß Sie sich für Luci della Ribalta entschieden haben. Wir hoffen, daß unser Produkt und unser Service Ihren Ansprüchen gerecht. Sollte dies einmal nicht der Fall sein, so bitten wir Sie, uns direkt anzusprechen, und somit uns zu helfen, Ihnen und unseren weiteren ...
Seite 13
LDR Nota f1200 PO 120V User’s Manual – 1.0 1. INHALT DER VERPACKUNG Prüfen Sie bitte den Ihalt der Verpackung entsprechend dem von Ihnen gekauften Gerät: a. Gerät mit stangbedienbaren Aufhängebügel versehen b. Metallfarbfilterrahmen, 185x185mm, montiert c. Metallschutzgitter, 185x185mm, montiert Bei nicht vollständiger Lieferung, setzen Sie sich bitte mit unserem Verkäufer in Verbindung 2. GEWICHT UND ABMESSUNGEN Nettogewicht: 7,5 kg, ohne zusätzliches Zubehör Bruttogewicht: 10,5 kg Abmessungen der Einpackung: 72x32x32h cm 3. VORSICHT 1. Stellen Sie sicher, daß der Aufhängehaken auf dem Montagezapfen des Aufhängebügel gut festgezogen ist 2. Stellen Sie sicher, daß das Sicherheitsseil am Gerät sowie an den nicht verschraubten Teilen (z.B. Farbwechsler oder Torblende) montiert ist und dieses die Bewegung des ...
Seite 14
LDR Nota f1200 PO 120V User’s Manual – 1.0 4. AUSWAHL DER LAMPE Sollte der von Ihnen gekaufte Scheinwerfer ohne Lampe geliefert worden sein, so benutzen Sie zur Auswahl der Lampe bitte den Hinweis "Kompatible Lampen" in den Technischen Daten des jeweiligen Produktes von LDR, oder wählen Sie aus folgender Liste: 1000W G22 120V EGT 3200K 300 Std LDR empfehlt Philips 5. VERSTELLUNG DES LAMPENSOCKELS Keine Verstellung des Lampensockels ist auf diesem Modell möglich 6. EINSETZEN bzw AUSTAUSCH DER LAMPE • Vor dem Einsetzen bzw. Austausch der Lampe Netzspannung ausschalten und Lampe sowie ...
Seite 15
LDR Nota f1200 PO 120V User’s Manual – 1.0 8. VERBINDUNG MIT DEM STROHMNETZ • Stellen Sie sicher, daß der Netzstecker, den Sie am Gerät anbringen, für die Lampenleistung ausgelegt ist. • Beziehen Sie sich zur korrekten Verkabelung auf das am Ende des Netzkabels angebrachte Etikett. • Der folgende Farbcode ist für die elektrischen Leiter zu beachten: Gelbgrün: Erdleiter ‐ Blau:Neutralleiter ‐ Braun oder schwarz: Phase • Bevor Sie den Scheinwerfer endgültig einsetzen, überprüfen Sie die korrekte Funktion der Lampe durch Verbinden mit einem durch eine Sicherung geschützten Netanschluß. • Schützen Sie das Gerät durch eine der Lampenleistung entsprechenden Sicherung. Wird das Gerät über einen Dimmer gespiesen, so muß dieser mit entsprechenden Sicherungen ausgestattet sein. 9. REINIGUNG UND WARTUNG Zur optimalen Funktion des Gerätes empfehlen wir eine Periodische Wartung bei kaltem und vom Netz getrennten Gerät. • reinigen Sie alle reflektierenden Teile des Geräts wie Spiegel, Reflektoren oder Linsen. Falls nötig, öffnen Sie das Gerät. • kontrollieren Sie Lampe, Splitterschutz und Linse, und ersetzen Sie die beschädigte Teile. • reinigen Sie die Lüftungskanäle des Lampengehäuses bzw. (wo vorhanden) den Lüfter, um eine normale Luftzirkulation zu gewährleisten. • überprüfen Sie die interne und externe Verkabelung und ersetzen Sie jegliches durch Hitze ...
Seite 16
Konformitätserklärung certificat de conformité certificado de conformidad I Noi sottoscritti dichiariamo, sotto la nostra completa responsabilità, che i prodotti: GB We hereby declare under our own responsibility, that the products listed here below: D Wir beglaubigen, daß die nachfolgend genannten Produkte: F Nous certifions sous notre responsabilitè, que les produits mentionnés ci‐dessous: E Los que subscriben, declaran, bajo su responsabilidad, que los productos aquì listados: ® 13851000 Nota f1200 plus P.O. black 120V I sono conformi alle seguenti norme ed ai requisiti delle seguenti direttive CEE: GB conform to the following standards and to the requirements of following EEC directives: D den nachfolgend aufgeführten Normen und EEC‐Vorschriften entsprechen: F sont conformes aux normes et prescriptions CEE ci‐aprés: E cumplen de hecho con las siguientes normas y directivas CEE: EN 61000‐3‐2, EN61000‐3‐3, EN 55024, EN 55022 EN 60‐598‐2‐17 1989 including amendments 1/2 EN 60‐598‐1 1992 including amendment 1 CE marking directive 93/68 EEC Low voltage directive 73/23/EEC as amended by directive 93/98/EEC EMC directive 89/336/EEC as amended by directive 91/263/EEC and 92/31/EEC Luci della Ribalta srl Fabiano Besio...
Seite 17
Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones fax: +39 0376 772140 Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ ® 13851000 Nota f1200 plus P.O. black Prodotto difettoso 120V Faulty product Defekte s Produkt Produit défectueux Producto defectuoso Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
