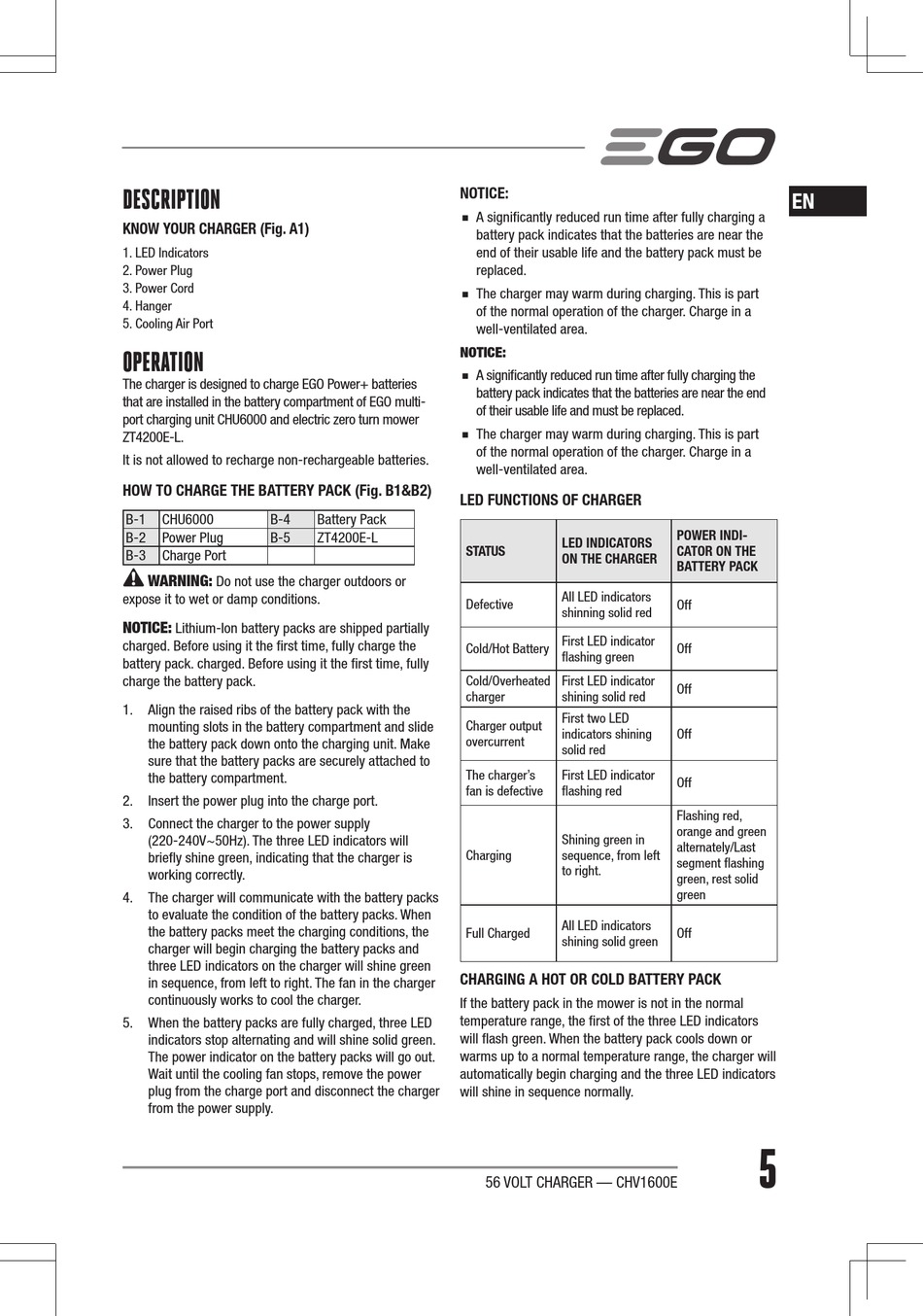

Ego Power+ CHV1600E Bedienungsanleitung Seite 5

DESCRIPTION
KNOW YOUR CHARGER (Fig. A1)
1. LED Indicators
2. Power Plug
3. Power Cord
4. Hanger
5. Cooling Air Port
OPERATION
The charger is designed to charge EGO Power+ batteries
that are installed in the battery compartment of EGO multi-
port charging unit CHU6000 and electric zero turn mower
ZT4200E-L.
It is not allowed to recharge non-rechargeable batteries.
HOW TO CHARGE THE BATTERY PACK (Fig. B1&B2)
B-1 CHU6000 B-4
B-2 Power Plug B-5
B-3 Charge Port
WARNING:
Do not use the charger outdoors or
expose it to wet or damp conditions.
NOTICE:
Lithium-Ion battery packs are shipped partially
charged. Before using it the first time, fully charge the
battery pack. charged. Before using it the first time, fully
charge the battery pack.
1. Align the raised ribs of the battery pack with the
mounting slots in the battery compartment and slide
the battery pack down onto the charging unit. Make
sure that the battery packs are securely attached to
the battery compartment.
2. Insert the power plug into the charge port.
3. Connect the charger to the power supply
(220-240V~50Hz). The three LED indicators will
briefly shine green, indicating that the charger is
working correctly.
4. The charger will communicate with the battery packs
to evaluate the condition of the battery packs. When
the battery packs meet the charging conditions, the
charger will begin charging the battery packs and
three LED indicators on the charger will shine green
in sequence, from left to right. The fan in the charger
continuously works to cool the charger.
5. When the battery packs are fully charged, three LED
indicators stop alternating and will shine solid green.
The power indicator on the battery packs will go out.
Wait until the cooling fan stops, remove the power
plug from the charge port and disconnect the charger
from the power supply.
NOTICE:
◾
A significantly reduced run time after fully charging a
battery pack indicates that the batteries are near the
end of their usable life and the battery pack must be
replaced.
◾
The charger may warm during charging. This is part
of the normal operation of the charger. Charge in a
well-ventilated area.
NOTICE:
◾
A significantly reduced run time after fully charging the
battery pack indicates that the batteries are near the end
of their usable life and must be replaced.
◾
The charger may warm during charging. This is part
of the normal operation of the charger. Charge in a
well-ventilated area.
LED FUNCTIONS OF CHARGER
Battery Pack
ZT4200E-L
STATUS
Defective
Cold/Hot Battery
Cold/Overheated
charger
Charger output
overcurrent
The charger's
fan is defective
Charging
Full Charged
CHARGING A HOT OR COLD BATTERY PACK
If the battery pack in the mower is not in the normal
temperature range, the first of the three LED indicators
will flash green. When the battery pack cools down or
warms up to a normal temperature range, the charger will
automatically begin charging and the three LED indicators
will shine in sequence normally.
56 VOLT CHARGER — CHV1600E
POWER INDI-
LED INDICATORS
CATOR ON THE
ON THE CHARGER
BATTERY PACK
All LED indicators
Off
shinning solid red
First LED indicator
Off
flashing green
First LED indicator
Off
shining solid red
First two LED
indicators shining Off
solid red
First LED indicator
Off
flashing red
Flashing red,
orange and green
Shining green in
alternately/Last
sequence, from left
segment flashing
to right.
green, rest solid
green
All LED indicators
Off
shining solid green
