Brow infill removal and installation

The infill is positioned at the front of the respirator between the headband and the
frame with the concussion straps (if fitted) located inside, relative to the infill.

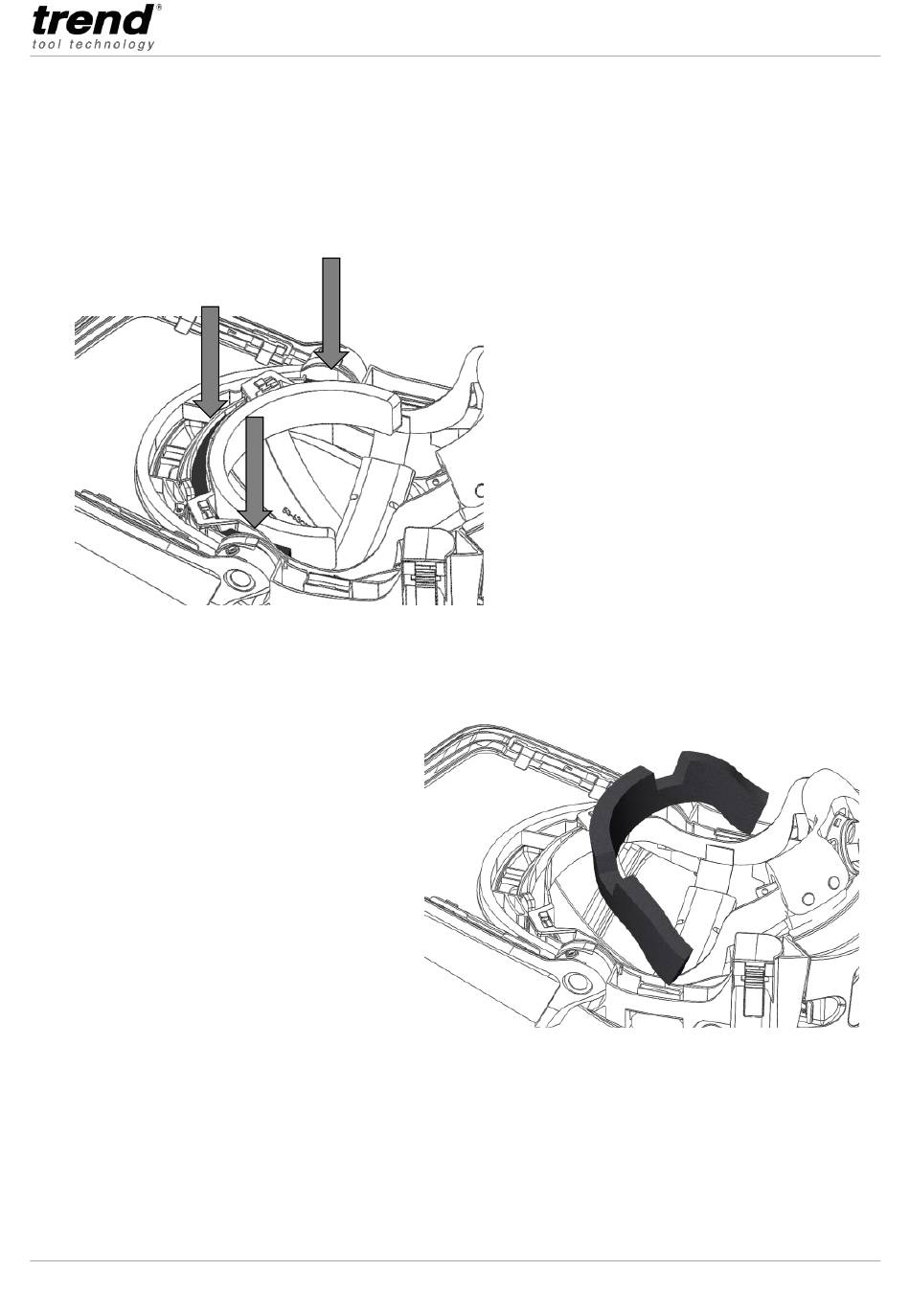

Figure 31
To fit the new infill first turn the
respirator upside down to gain access
to the headband. (Figure 32)
Ensure correct orientation of the infill
prior to fitting.
SERVICING
Remove the brow infill by turning
respirator upside down to gain access
to the headband. Then push on the
infill between the headband and the
frame. (Figure 31)
The infill is retained with low tack
adhesive strips.
Figure 32
AIRPRO MAX
29
