SolaX Power X3-Hybrid-G4 Installationsanleitung Seite 52

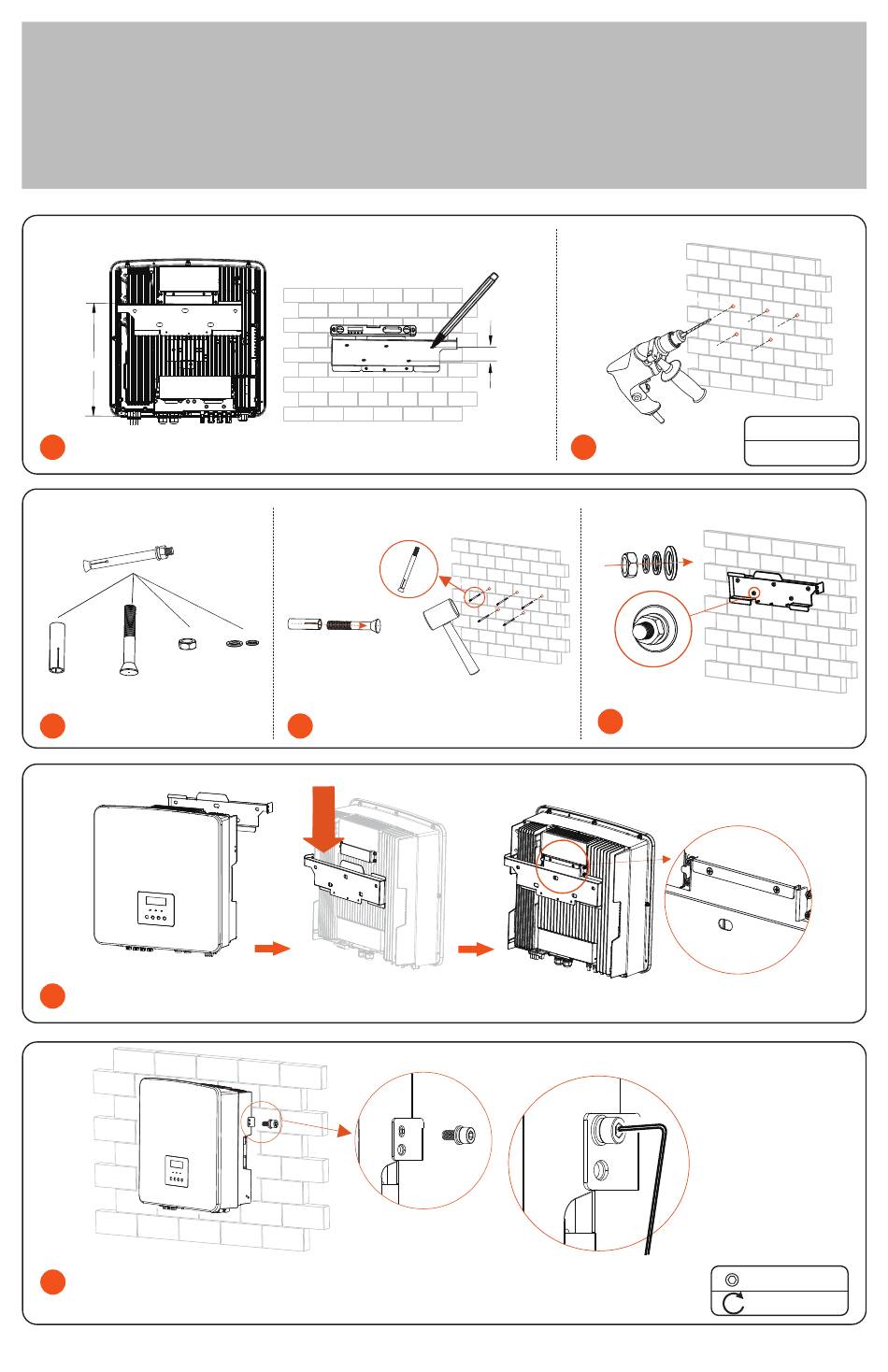

Mechanical Installation / Mechanische Installation / Installation mécanique /
Instalación mecánica / Instalação mecânica / Mechanische installatie / Installazione
meccanica / Instalacja mechaniczna / Mechanická instalace / Mekanisk installation
/Instalare mecanică / Механичен монтаж / Mekanisk installation / Μηχανική
εγκατάσταση / Mehaaniline paigaldus / Mekaaninen asennus / Mehanička ugradnja /
Mechanikai telepítés / Mechaninis montavimas / Mehāniskā uzstādīšana / Mechanická
inštalácia / Mehanska namestitev
360 mm
1
Screw
Expansion
Expansion
tube bolt
3
6
7
Locking the second hole on a fixed position on the wall is for the safety of the inverter.
Spirit level
Washers
4
Marker
45 mm
2
Rubber mallet
Ø 8 drill bit
Hammer drill
Depth: 65 mm
5
M5
1.2± 0.1 N·m
51
