The symbol
between light-output and the illuminated surface must be more than 0.1 meters.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.
The maximum ambient temperature T
Operate the device only after having become familiarized with its functions. Do not permit operation by
persons not qualified for operating the device. Most damages are the result of unprofessional operation!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, crash etc.

INSTALLATION

In order to design the desired patterns, draw the form onto the surface or wrap the LED RGB Ribbon around
the desired form and attach the LED RGB Ribbon with adhesive tape or a few drops of glue.
Connect the power cable of the LED RGB Ribbon to the LED RGB Ribbon Controller.
Up to 15m 24V LED RGB ribbon can be controlled with a single controller.
Up to 20m 12V LED RGB ribbon can be controlled with a single controller.

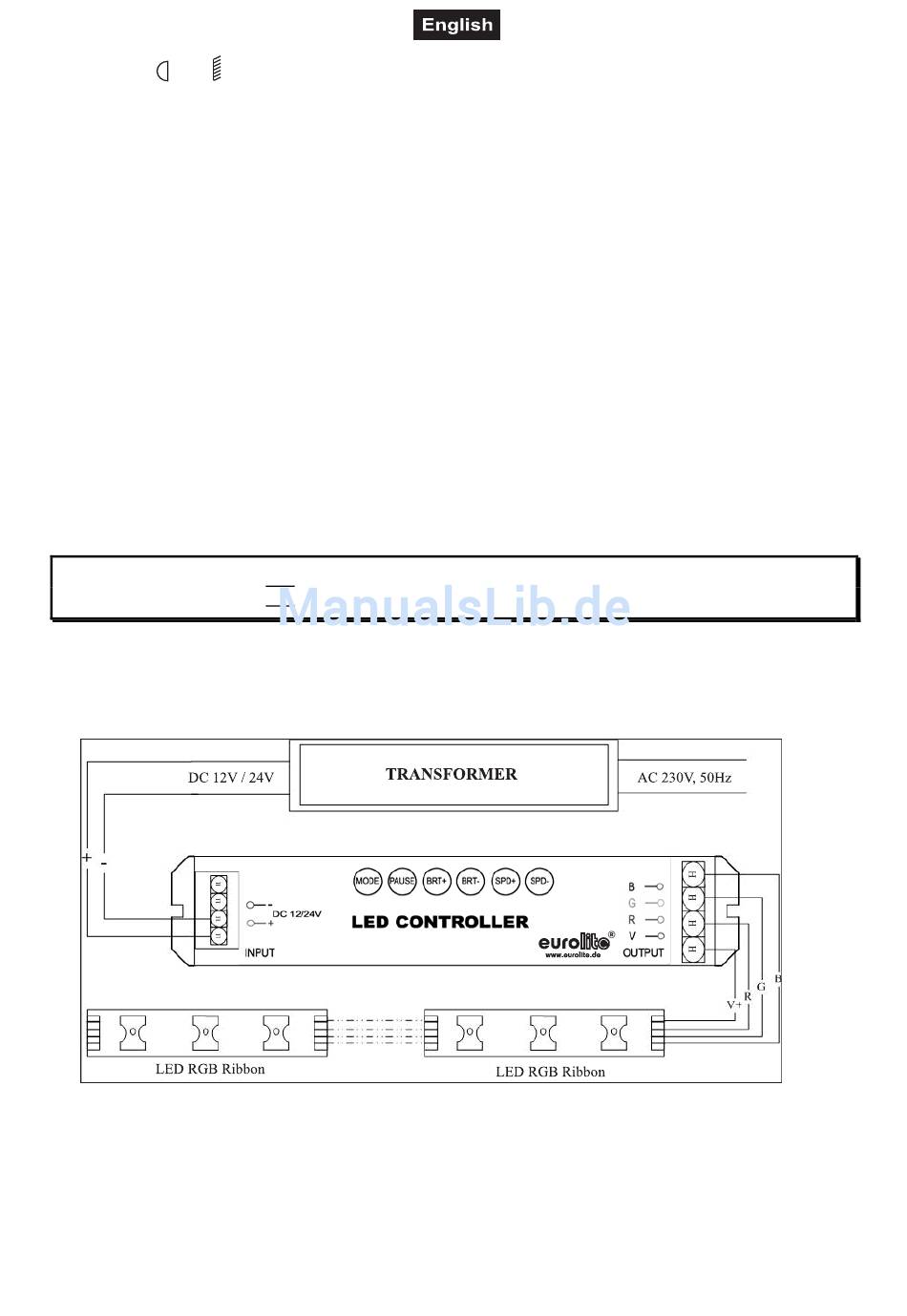

Connect the LED RGB Ribbon Controller to the transformer. Connect the transformer to the mains (see
graphic). Make sure that the outlet is in a dry area.

OPERATION:

The Controller has 6 buttons with following functions:
Mode: Press to change modes.
Pause: Press once to hold the current color, press again to continue color change
determines the minimum distance from lighted objects. The minimum distance
= 45° C must never be exceeded.
a
