Wiring
Before connecting or disconnecting any wires, ensure that all power supplies have been switched off and all wires
are potential-free to prevent equipment damage and avoid electrical shock. Terminations are made on the
dismountable terminal blocks in the base of the module, which accept up to 2.5 mm² wires. Follow the wiring

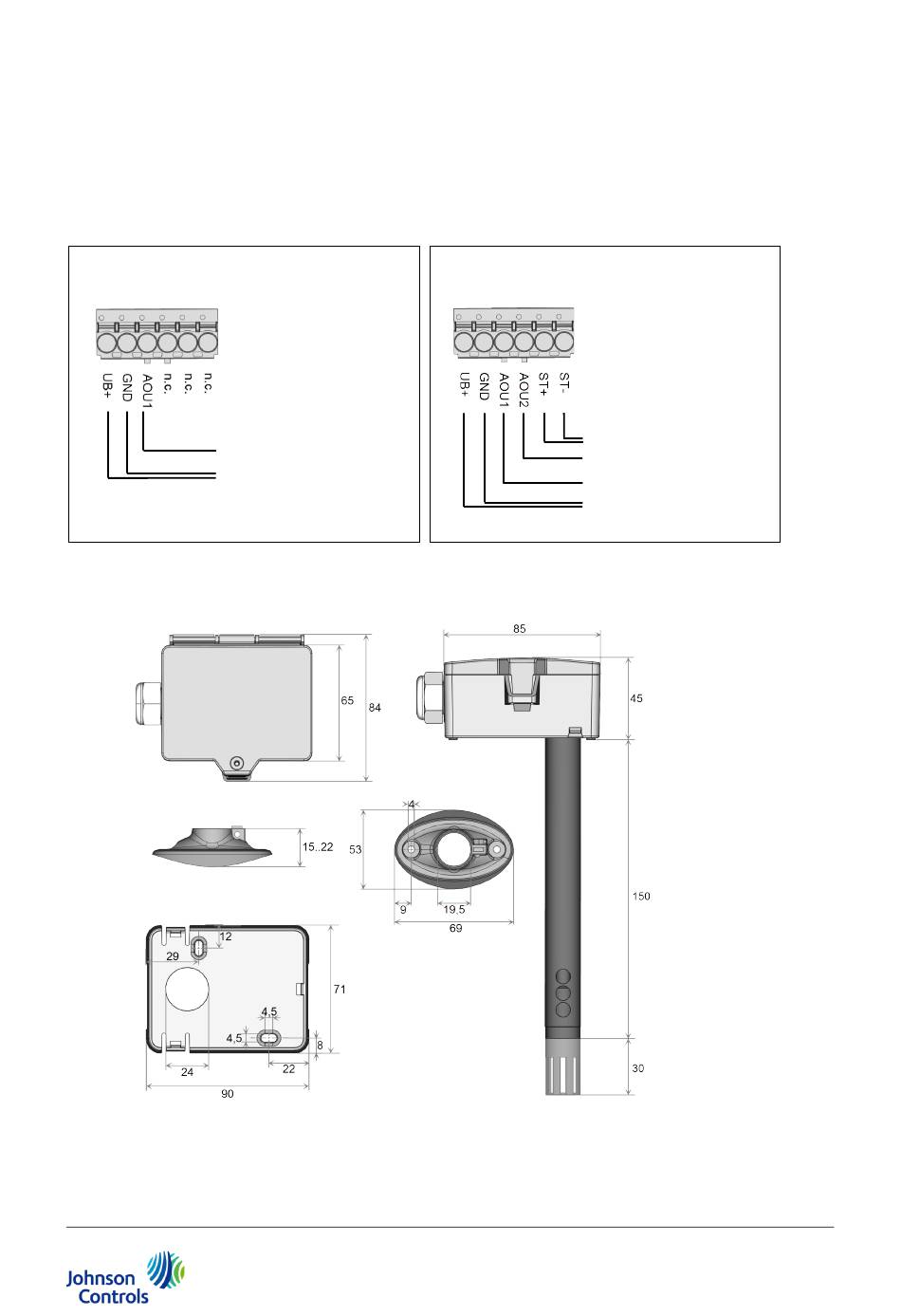

diagrams shown in the figure below. All wiring to the module is at safety extra low voltage (SELV) and must be
separated from power line voltage wiring. Do not run wiring close to transformers or high frequency generating
equipment. Complete and verify all wiring connections before applying power to the controller to which the module
is connected.
SCD-P1000
CO2 - 0..10 V
15..35 V = | 19..29 V ~
Dimensions (mm)
SCD-P1xxx | -P2xxx Differential Pressure Transmitter
SCD-P201x
only SDP-P2016..17
passive sensor
Temperature - 0..10 V
CO2 - 0..10 V
15..35 V = | 19..29 V ~
4
