Johnson Controls NSA7000 Installationsanleitung

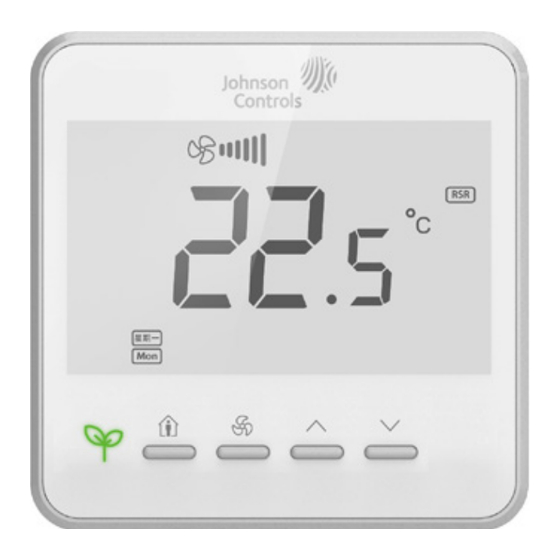

Flush-Mounted NSA7000 Series Network Sensor
Installation Instructions
Code No. 24-11070-00000-Rev.A 08.2017
87.75
°C
•
室温
• Ambient
• Ambiante
• Umgebung
• Ambiente
• Ambiente
• Atmosfeer
• Omgivnin
• Prostředí
• Otoczenia
• Среда
• Omgivelse
MAX MIN MAX MIN
45 °C -0 °C 60 °C -10 °C
113 °F -32 °F 140 °F -14 °F
MAX 90% RH MAX 90% RH
MIN 10% RH MIN 10% RH
87.75
Figure 1
> 50 cm (19.68 inch)
> 150 cm (59.05 inch)
Figure 2
Figure 4
Figure 5
1
39.20
87.75
14.20
o
F
℃/
Pin 6 Pin 5 Pin 4
PWR COM PWR
(sensor) (sensor) (tool)
SA PWR 15V DC
COM BUS COM
- SA BUS -
+ SA BUS +
60.00
OFF
AUTO
Figure 3
Pin 3 Pin 2 Pin 1
COM SA BUS SA BUS
(tool) - +
