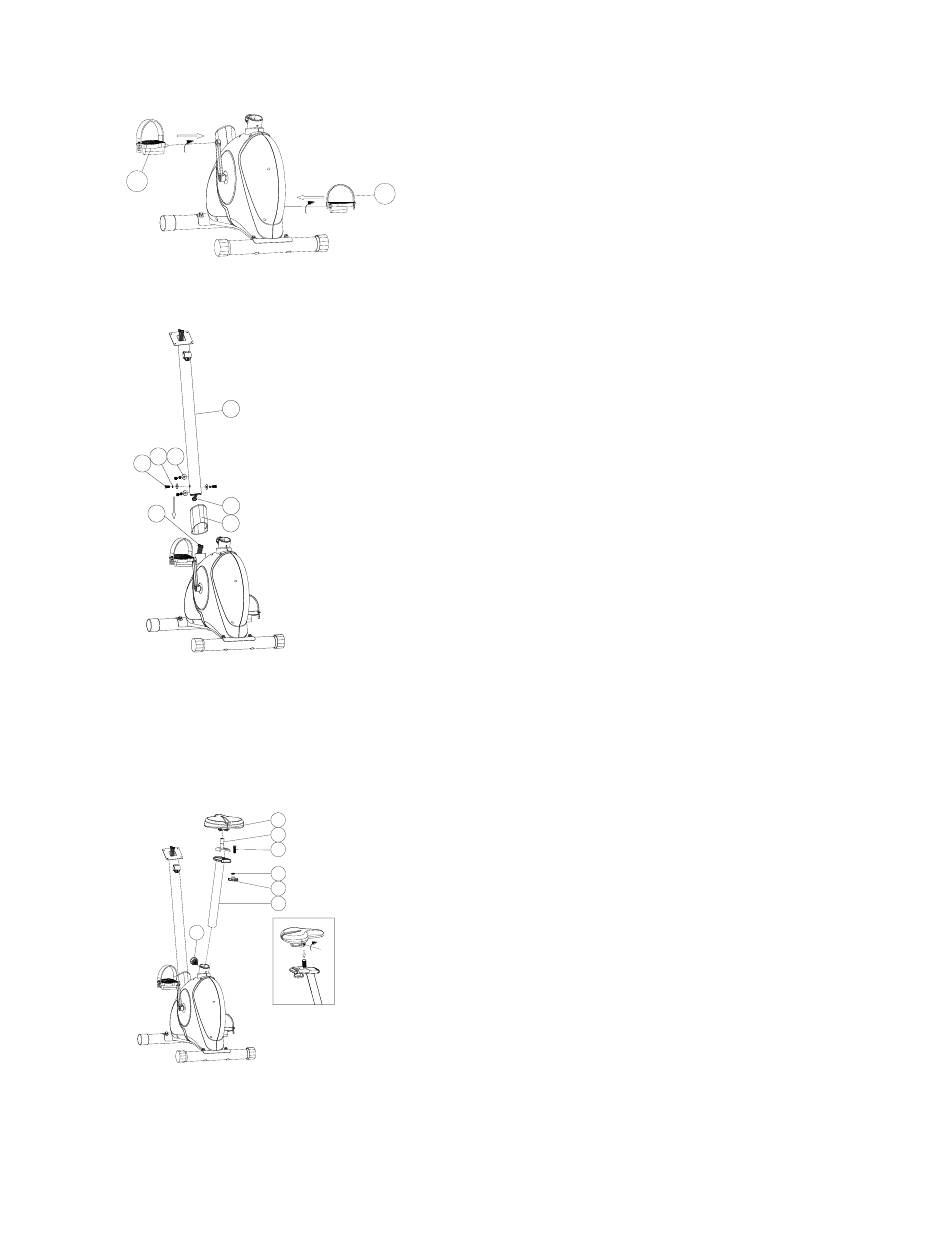

Step 2: Assembling the pedals
12L
STEP 2
Attach the left pedal (12 L) to the left crank (39 L).
Attach the right pedal (12 R) to the right crank (39 R).
Step 3: Assembling the handle bar post and connecting the computer cable
3
36 4
5
8
9
10
STEP 3
Place the handlebar post (3) in a vertical position. Place the front plastic cover (10) at the bottom off the handlebar post (3). Keep the
upper computer cable (8) hanging from the handle bar post until the plastic cover has been attached.
Connect the upper computer cable (8) to the lower computer cable (9).
Place the handlebar post (3) in the main frame (46) and screw the handlebar post (3) in with four curved washers (4), four spring washers
(36) and four Allen bolts (5).
Step 4: Assembling the saddle
54
53
52
50
49
56
48
STEP 4
Assemble the seat gliding set (53) on the seat post (56) and screw it in with the square neck carriage bolt (52), washer (50) and knob (49).
Then put the seat post (56) in the main frame (46) and screw the seat post (56) in with the quick pin (48).
