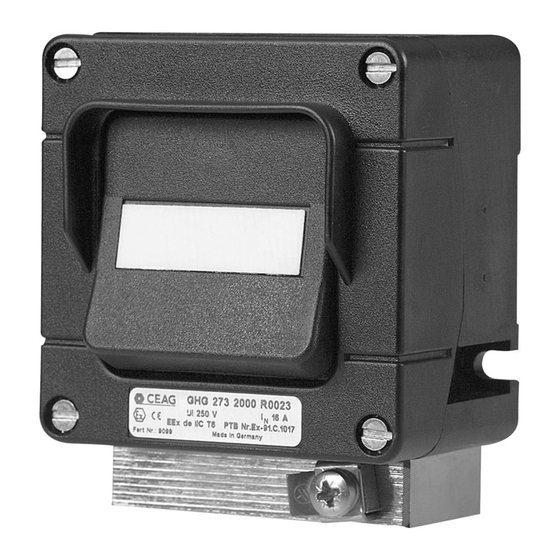

Explosionsgeschützte Installationsschalter Typ GHG 273 Technische Angaben Maßbilder in mm 1.1 Technische Daten GHG 273 EG-Baumusterprüfbescheinigung: PTB 98 ATEX 3121 Gerätekennzeichnung nach 2014/34/EU D II 2 G Ex de IIC T6 und Norm EN 60079-0: D II 2 D Ex tD A21 IP66 T80 °C IECEx Konformitätsbescheinigung: IECEx BKI 07 .0036 Gerätekennzeichnung...
Gerät beschädigt werden. Industrie atmosphäre“ gewährleisten: – schlagfestes Polyamid – Edelstahl AISI 316 L Bei einem Einsatz in extrem aggressiver Atmosphäre, können Sie zusätzliche Informationen über die Chemikalienbeständigkeit der eingesetzten Kunststoffe bei Ihrer zuständigen Cooper Crouse-Hinds (CCH) / EATON Niederlassung erfragen.
Schaltereinsatz und der Gehäusedeckel um 180° zu Bild 1 drehen (siehe Bild 2). Gerätehalter Größe 1 Der Installationsschalter ist zur Befestigung auf den CCH / EATON-Geräte- Befestigungslöcher „B“ haltern Größe 1 mittels selbstschneidende Schrauben geeignet (siehe Bild 1).
Im Rahmen der Wartung sind vor allem die Teile, von denen die Zünd- schutzart abhängt, zu prüfen (z.B. Unversehrtheit der druckfesten Alle nicht benutzten metrischen CCH / EATON KLE sind mit dem Komponenten, des Gehäuses, der Dichtungen und der Kabel- und bescheinigten CCH / EATON-Verschluss für metrische KLE zu verschlie-...
Explosions protected installation switches type GHG 273 Technical data Dimensions in mm 1.1 Technical data GHG 273 EC-Type Examination Certificate: PTB 98 ATEX 3121 Marking acc. to 2014/34/EU D II 2 G Ex de IIC T6 and standard EN 60079-0: D II 2 D Ex tD A21 IP66 T80 °C IECEx Certificate of Conformity: IECEx BKI 07 .0036...
Applications other than described are not permitted without Cooper They shall be used for their intended purpose and in perfect and Crouse Hinds (CCH) / EATON`s prior written consent. clean condition. For the operation, the instructions stated in section 7 of the The requirements of the IEC/EN 60079-31 regarding excessive dust operating instructions shall be observed.
Fig. 1 180° (see fig.2). Size 1 apparatus holder The installation switch is suitable for fixing onto CCH / EATON apparatus Fastening holes “B” holders size 1 by means of self-cutting screws (see fig. 1). The respective mounting instructions shall be observed.
Overtightening might impair the protection. operating instructions will have to be observed. All vacant metric CCH / EATON cable entries shall be closed with the certified CCH / EATON blanking plug for metric cable entries. Repairs / Overhaul / Modification Flange and metal plates* Repairs may only be carried out with genuine CCH / EATON spare parts.
Interrupteurs d’éclairage pour atmosphères explosives type GHG 273 Caractéristiques techniques Dimensions en mm Caractéristiques techniques GHG 273 CE-Certificat de Conformité: PTB 98 ATEX 3121 Marquage selon 2014/34/UE D II 2 G Ex de IIC T6 et directive EN 60079-0: D II 2 D Ex tD A21 IP66 T80 °C IECEx Certificat de Conformité: IECEx BKI 07 .0036 Marquage selon IEC 60079-0:...
Si les vis sont forcées, il est possible que l’appareil soit endommagé. – polyamide anti-choc – acier spécial AISI 316 L. En cas d‘utilisation en atmosphère extrèmement corrosive, vous pouvez obtenir des informations complémentaires sur la résistance chimique des plastiques utilisés chez la succursale Cooper Crouse-Hinds / EATON de votre région.
L ’interrupteur d’éclairage convient à un montage sur les plaques de Trous de fixation ”B“ montage CCH / EATON taille 1, avec vis autotaraudeuses (voir fig. 1). Les instructions pour le montage devront être respectées. Ouverture du dispositif / Raccordement électrique...
Les plaques à brides sont montées de telle façon à ce que l’indice de devront être exécutées que par CCH / EATON ou par un élec tricien protection IP soit respecté. Il faut également veiller au bon état du joint qualifié...
