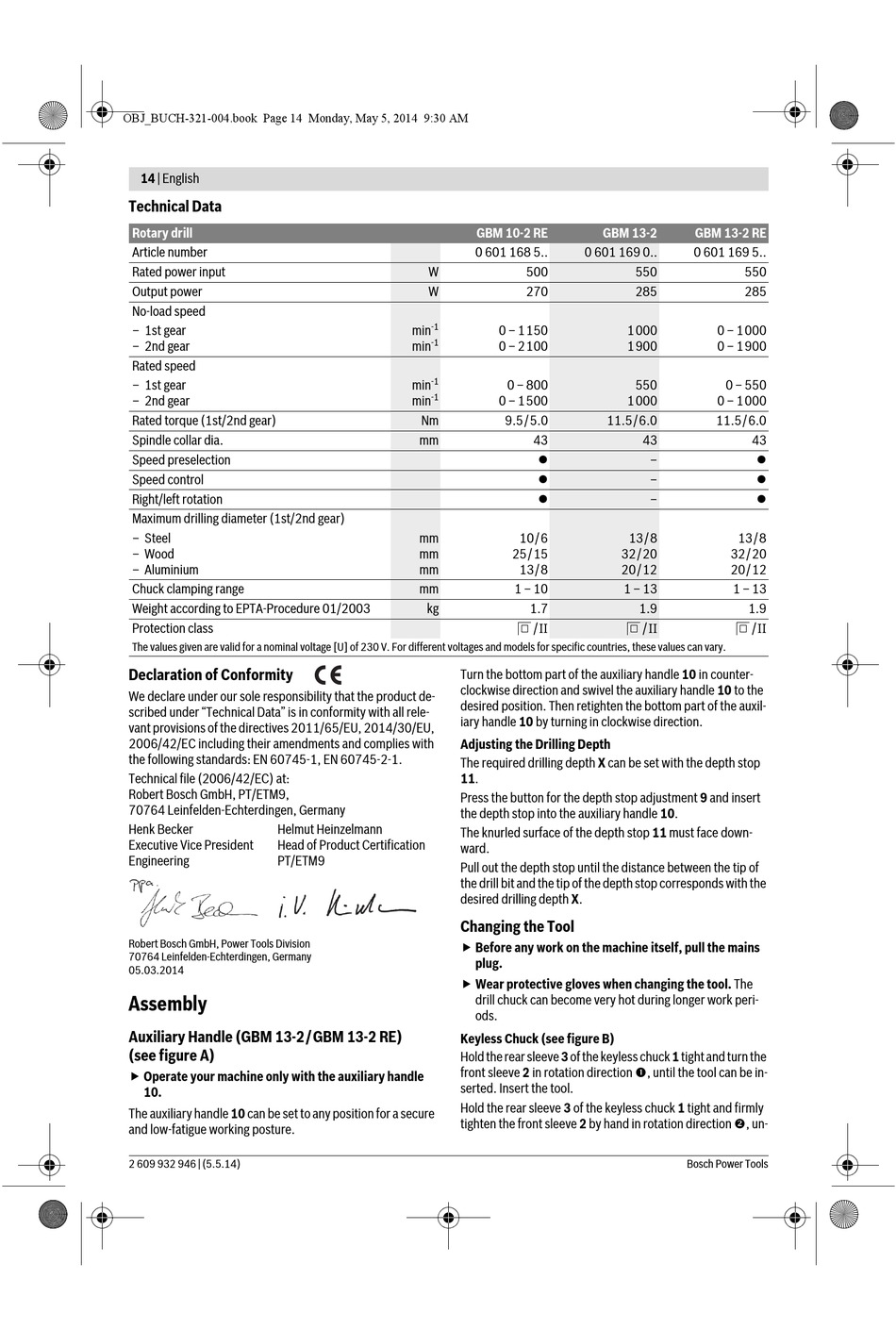

14 | English
Technical Data
Rotary drill
Article number
Rated power input
Output power
No-load speed
– 1st gear
– 2nd gear
Rated speed
– 1st gear
– 2nd gear
Rated torque (1st/2nd gear)
Spindle collar dia.
Speed preselection
Speed control
Right/left rotation
Maximum drilling diameter (1st/2nd gear)
– Steel
– Wood
– Aluminium
Chuck clamping range
Weight according to EPTA-Procedure 01/2003
Protection class
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
Declaration of Conformity
We declare under our sole responsibility that the product de-
scribed under "Technical Data" is in conformity with all rele-
vant provisions of the directives 2011/65/EU, 2014/30/EU,
2006/42/EC including their amendments and complies with
the following standards: EN 60745-1, EN 60745-2-1.
Technical file (2006/42/EC) at:
Robert Bosch GmbH, PT/ETM9,
70764 Leinfelden-Echterdingen, Germany
Henk Becker Helmut Heinzelmann
Executive Vice President Head of Product Certification
Engineering PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, Germany
05.03.2014
Assembly
Auxiliary Handle (GBM 13-2/GBM 13-2 RE)
(see figure A)
 Operate your machine only with the auxiliary handle
10.
The auxiliary handle 10 can be set to any position for a secure
and low-fatigue working posture.
2 609 932 946 | (5.5.14)
GBM 10-2 RE
0 601 168 5..
W 500
W 270
-1
min 0 – 1150
-1
min 0 – 2100
-1
min 0 – 800
-1
min 0 – 1500
Nm 9.5/5.0
mm 43



mm 10/6
mm 25/15
mm 13/8
mm 1 – 10
kg 1.7
/II
Turn the bottom part of the auxiliary handle 10 in counter-
clockwise direction and swivel the auxiliary handle 10 to the
desired position. Then retighten the bottom part of the auxil-
iary handle 10 by turning in clockwise direction.
Adjusting the Drilling Depth
The required drilling depth X can be set with the depth stop
11.
Press the button for the depth stop adjustment 9 and insert
the depth stop into the auxiliary handle 10.
The knurled surface of the depth stop 11 must face down-
ward.
Pull out the depth stop until the distance between the tip of
the drill bit and the tip of the depth stop corresponds with the
desired drilling depth X.
Changing the Tool
 Before any work on the machine itself, pull the mains
plug.
 Wear protective gloves when changing the tool. The
drill chuck can become very hot during longer work peri-
ods.
Keyless Chuck (see figure B)
Hold the rear sleeve 3 of the keyless chuck 1 tight and turn the
front sleeve 2 in rotation direction , until the tool can be in-
serted. Insert the tool.
Hold the rear sleeve 3 of the keyless chuck 1 tight and firmly
tighten the front sleeve 2 by hand in rotation direction , un-
GBM 13-2 GBM 13-2 RE
0 601 169 0.. 0 601 169 5..
550 550
285 285
1000 0 – 1000
1900 0 – 1900
550 0 – 550
1000 0 – 1000
11.5/6.0 11.5/6.0
43 43
–
–
–
13/8 13/8
32/20 32/20
20/12 20/12
1 – 13 1 – 13
1.9 1.9
/II /II
