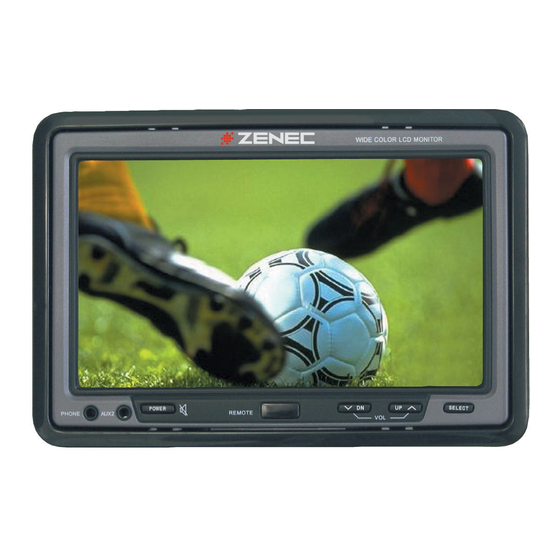

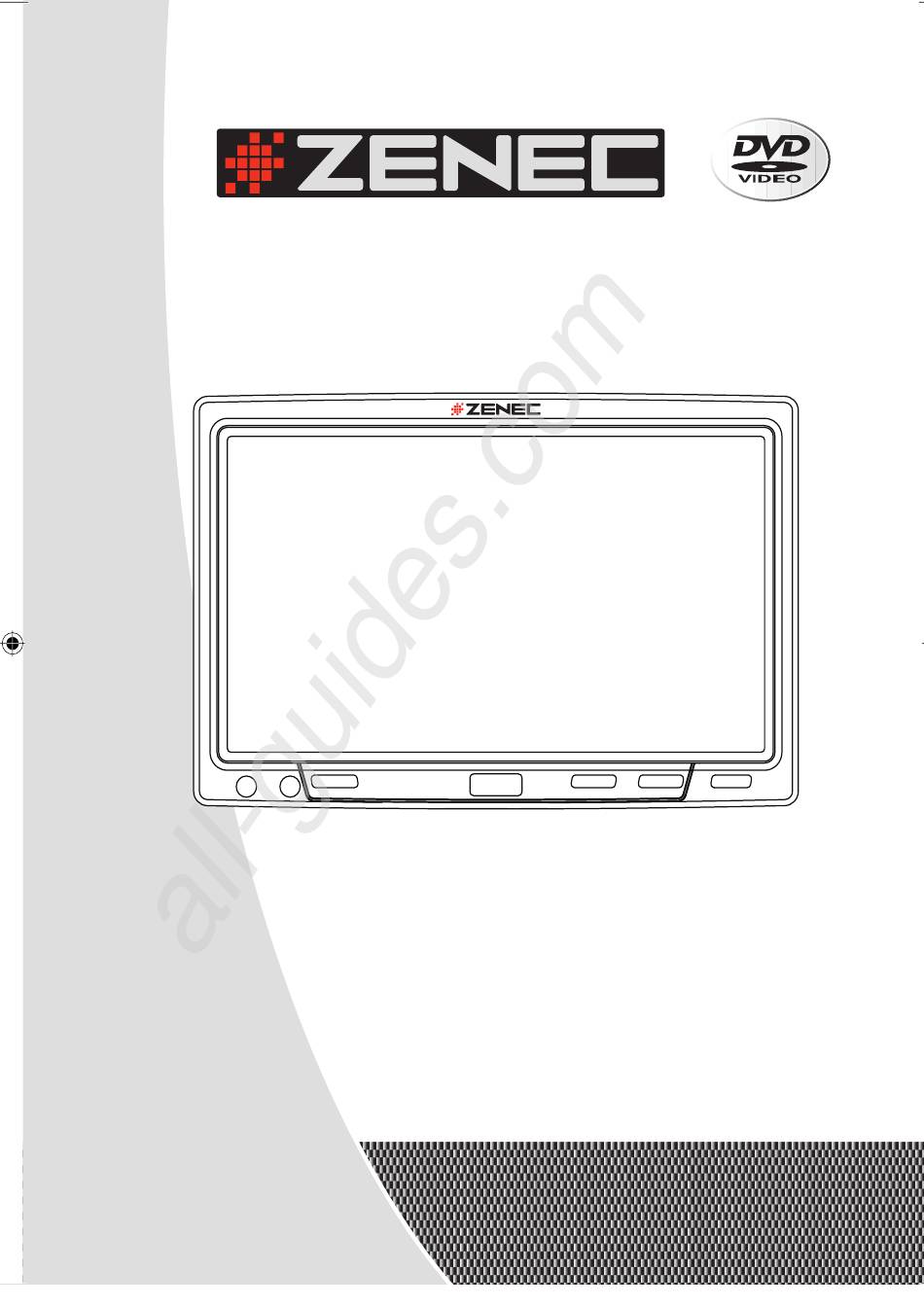

All manuals and user guides at all-guides.com 7" TFT LCD COLOR MONITOR WIDE COLOR LCD MONITOR POWER VOL -- < VOL -- < SELECT PHONE AUX2 REMOTE MODEL NO: ZEM-W701USM INSTRUCTION MANUAL...
Produktes nutzen können. Lesen Sie sich vor allem die Garantiebestimmungen genau durch, um im Falle eines Defektes den optimalen Service und Kundendienst nutzen zu können. Sollten Sie dennoch Fragen haben, wenden Sie sich bitte an Ihren ZENEC–Händler oder den jeweiligen Landesvertrieb.
Bewahren Sie deshalb die Garantieunterlagen gut auf. - Unsachgemäße Reparaturversuche oder Manipulationen am Gerät führen zum Erlöschen der Garantiegewährleistung. INSTALLATION: Der ZENEC ZEM-701USM verfügt über einen externen Kabelbaum mit folgenden Anschlüssen: ■ Gelb: + 12V (Dauerstrom) ■ Rot: + 12 V ACC (Zündung) ■...
All manuals and user guides at all-guides.com An der Bedienfront befinden sich zusätzlich noch zwei Klinkenbuchsen für den Anschluss weiterer externen Komponenten: ■ Phone: Anschlussmöglichkeit für einen Kopfhörer - Die Lautstärke kann über die Volumenregelung des Monitors verändert werden. ■ AUX 2: Anschlussmöglichkeit für eine externe Videoquelle TASTENBELEGUNG (MONITOR UND FERNBEDIENUNG)
All manuals and user guides at all-guides.com BEDIENUNG: Power – Taste: Zum Ein und Ausschalten des Monitors. Wenn Sie die Taste während des Betriebs nur kurz drücken, wird die Muting–Funktion aktiviert. Um den Monitor auszuschalten muss die Taste ca. 2 Sekunden gedrückt werden. Zum einschalten genügt dagegen ein kurzer Tastendruck. Select bzw.
■ IR-remote control SPECIAL FEATURES 16:9 High Quality Wide Screen Display Panel: The ZEM-W701USM is a TFT active matrix 16:9 widescreen video monitor, featuring a 7“ high quality color LCD screen. It deploys a TFT panel with 336’960 dots resolution, to give you excellent picture detail. The anti-glare coating guarantees a high contrast picture even during daylight viewing.
- Please note: The warranty is void when you attempt to repair or open this device yourself. INSTALLATION: The ZENEC ZEN-701USM comes with an external cable harness with the following in- and outputs: ■ Yellow: + 12V (Battery) ■...
Seite 8
All manuals and user guides at all-guides.com - You can adjust the volume of the headphones with the monitor volume control. ■ AUX IN: Connection available to connect an external video source INTRODUCTION (MONITOR AND REMOTE CONTROL)
Seite 9
All manuals and user guides at all-guides.com OPERATION: Power button: Press POWER button to switch on / off the unit. Press to mute the volume at power on state or press and hold over 2 sec, to turn it off. Select resp.
2 YEARS LIMITED WARRANTY Dear customer Thank you for purchasing this ZENEC product. It is advisable to keep the original packing material for any future transporting of the product. Should your ZENEC product require warranty service, please return it to the retailer from whom it was purchased or the distributor in your country.
Seite 11
All manuals and user guides at all-guides.com WARRANTY / GARANTIE ZENEC Model: ZEM-W701USM Serial Number: ..........................Date of Purchase: ......................... Your name: ........................... Your address: ..........................City: .............................. State: ........ZIP or Postal Code ................ Country: ............................Your phone number: ........................
