Speaker Level Inputs; Right; Desinged By Elac Made In China Off; T6.3A L 250V - ELAC Reference VARRO Serie Bedienungsanleitung

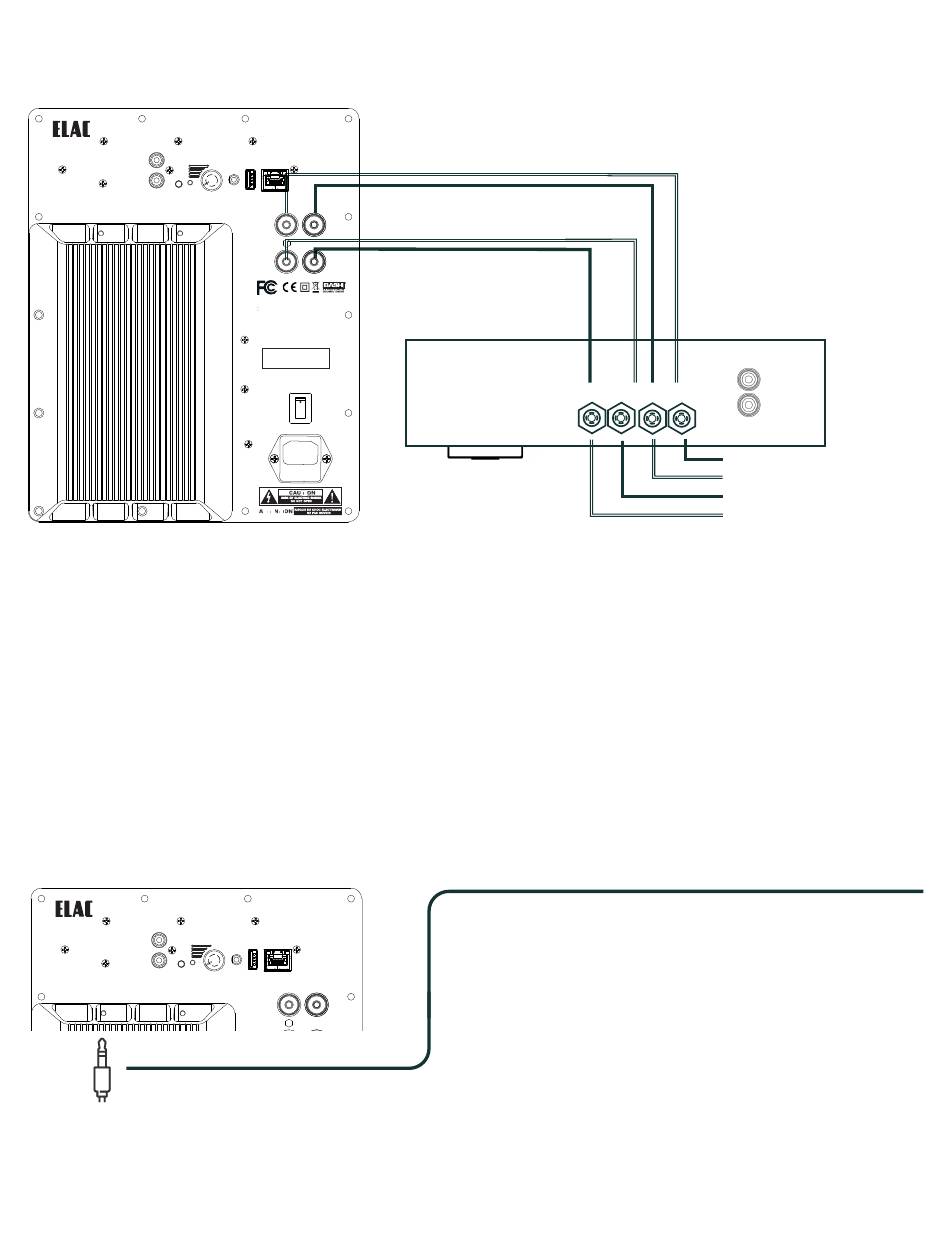

Speaker Level Input Connection
Reference Subwoofer Series
LEFT
1938 N. Batavia St. Suite K
Orange, CA 92865
LINE IN
Fraunhoferstraße 16
24118 Kiel
Deutschland
www.elac.com

RIGHT

WIRELESS
LFE VOLUME
PAIR/RESET
1. Connect the Left and Right Speaker Outputs of your Amplifier/Integrated Am-
plifier/Receiver to the speaker level inputs on the subwoofer.
2. You will also connect the same speaker level outputs on your Amplifier to
your speakers.
12Volt Trigger
Reference Subwoofer Series
LEFT
1938 N. Batavia St. Suite K
Orange, CA 92865
LINE IN
Fraunhoferstraße 16
24118 Kiel
Deutschland
www.elac.com
RIGHT WIRELESS
LFE PAIR/RESET VOLUME
Reference Subwoofer RS500 RS700 | www.elac.com
Model : RS700-SB
SERVICE
ETHERNET
12V
TRIGGER
LEFT
SPEAKER LEVEL
INPUTS
RIGHT
THIS DEVICES COMPLIES WITH PART 15 OF THE FCC RULES
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1 THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE
2 THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATIONS
CONTAINS FCC ID: A8TBM70ABCDEFGH
CONTAINS IC ID: 12246A-BM70BLES1F2
CONTAINS FCC ID: NKR-SWA12
CANTAINS IC: 4441A-SWA12
CAN ICES-3(B)/NMB-3(B)

SERIAL NUMBER

POWER

ON
Desinged by Elac
Made in China
OFF

T6.3A L 250V

100-120
220-240 VAC
50/60Hz 6.3A
Model : RS700-SB
SERVICE ETHERNET
12V
TRIGGER
LEFT
SPEAKER LEVEL
INPUTS
RIGHT
THIS DEVICES COMPLIES WITH PART 15 OF THE FCC RULES
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1 THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE
2 THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATIONS
CONTAINS FCC ID: A8TBM70ABCDEFGH
CONTAINS IC ID: 12246A-BM70BLES1F2
CONTAINS FCC ID: NKR-SWA12
CANTAINS IC: 4441A-SWA12
CAN ICES-3(B)/NMB-3(B)
SERIAL NUMBER
POWER
ON
Desinged by Elac
Made in China
OFF
T6.3A L 250V
100-120
220-240 VAC
50/60Hz 6.3A
+
Amplifier
The 12Volt trigger will shift control of powering the
subwoofer to an external 12 Volt source.
Applying an input of 5 - 12 Volts will turn on the amplifi-
er. A voltage of 0 will turn off the amplfier.
Note:
To enable 12 Volt Trigger, you need to set power mode
to 12VOlt with ELac Sub Control 3.0 APP
AUDIO IN
SPEAKER OUT
-
+ -
TO SPEAKERS
Page 4
