4.2 Node address (Host-ID)

Each EtherNet/IP™ node is addressed by an 8 bit Node address in an EtherNet/IP™
segment. This address has only local significance, i.e. it is unique within an
EtherNet/IP™ segment. The adjusted Node address corresponds to the Host-ID and
is part of the IP address.
Table 1: Construction of the IPv4 address
The Node address is adjusted by means of two HEX rotary switches, which are read-
in only in the POWER-ON momentum. Additional adjustments during operation are
not recognized therefore. See also chapter Obtaining the IP parameter on page 167.
Table 2: Switch activation
Node addresses 1...254 may used for the measuring system.

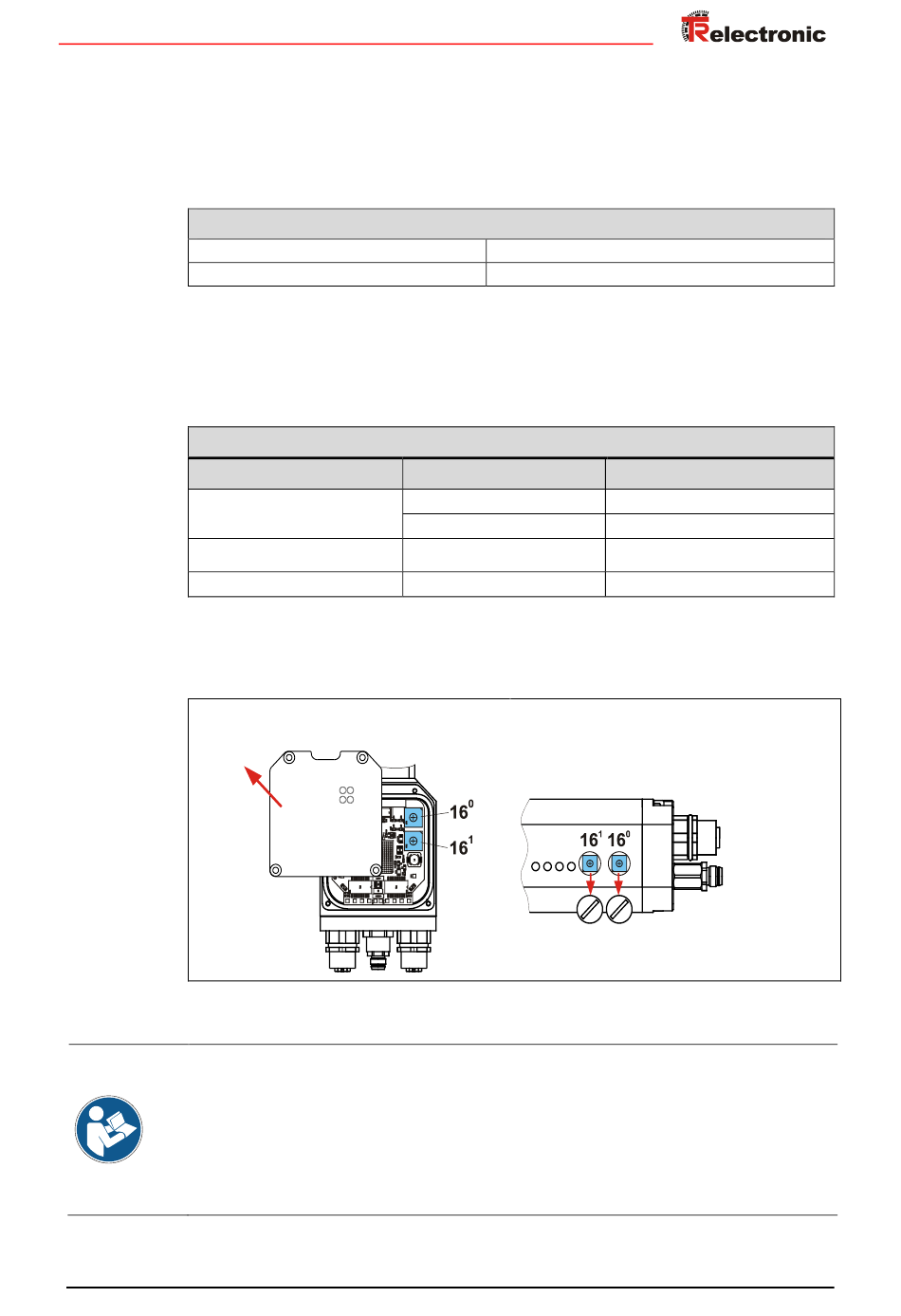

Figure 3: EtherNet/IP™ Node address, switch assignment
If the HEX rotary switches are active, the following definitions are valid:
●
IP address = 192.168.1.<adjusted Node address>
●
Subnet mask = 255.255.255.0
●
Default Gateway = 192.168.1.254
Configuration via FLASH or DHCP server, see "Attribute 5, Interface Configuration"
from page 167.
