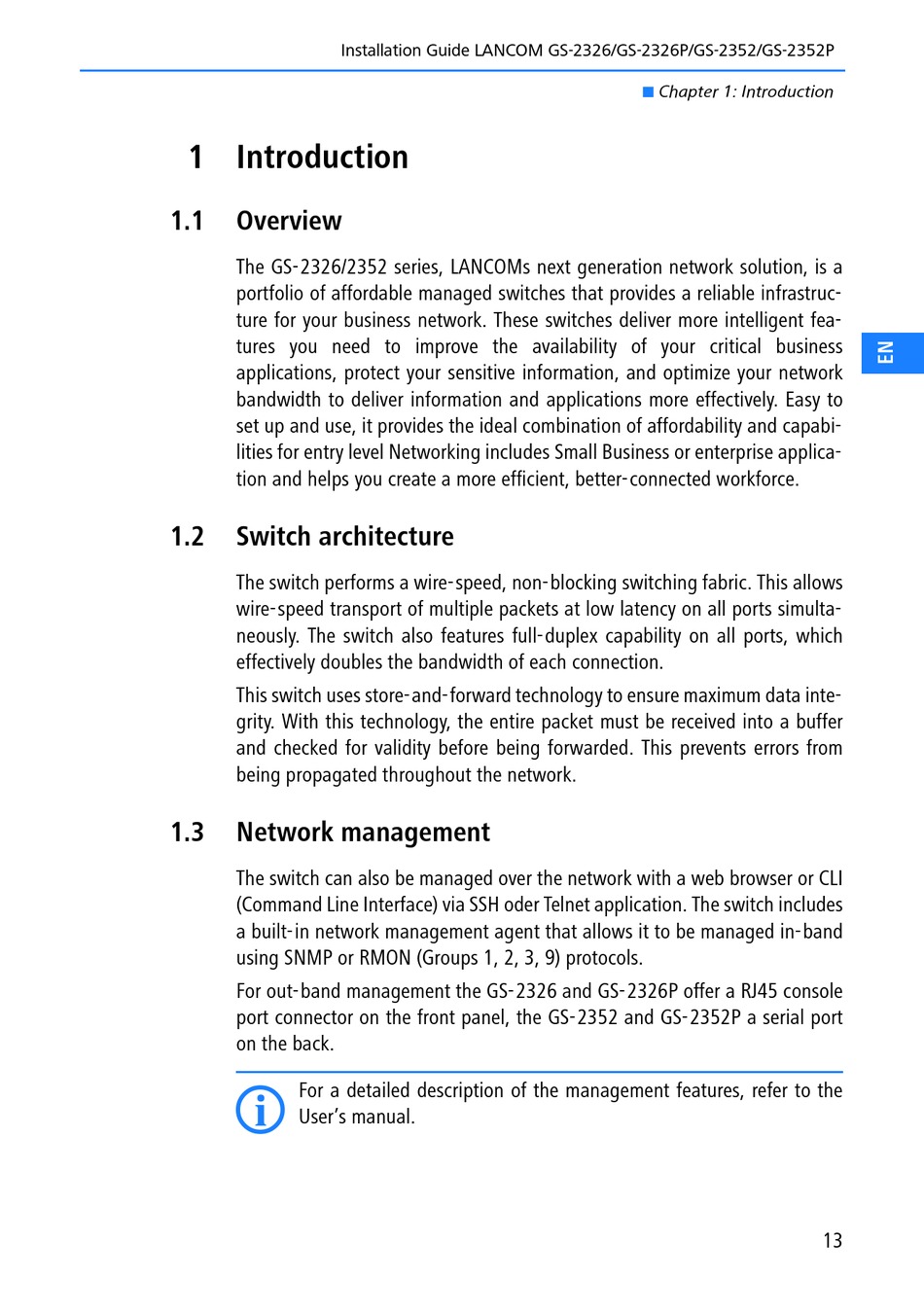

Installation Guide LANCOM GS-2326/GS-2326P/GS-2352/GS-2352P
1 Introduction
1.1 Overview
The GS-2326/2352 series, LANCOMs next generation network solution, is a
portfolio of affordable managed switches that provides a reliable infrastruc-
ture for your business network. These switches deliver more intelligent fea-
tures you need to improve the availability of your critical business
applications, protect your sensitive information, and optimize your network
bandwidth to deliver information and applications more effectively. Easy to
set up and use, it provides the ideal combination of affordability and capabi-
lities for entry level Networking includes Small Business or enterprise applica-
tion and helps you create a more efficient, better-connected workforce.
1.2 Switch architecture
The switch performs a wire-speed, non-blocking switching fabric. This allows
wire-speed transport of multiple packets at low latency on all ports simulta-
neously. The switch also features full-duplex capability on all ports, which
effectively doubles the bandwidth of each connection.
This switch uses store-and-forward technology to ensure maximum data inte-
grity. With this technology, the entire packet must be received into a buffer
and checked for validity before being forwarded. This prevents errors from
being propagated throughout the network.
1.3

Network management

The switch can also be managed over the network with a web browser or CLI
(Command Line Interface) via SSH oder Telnet application. The switch includes
a built-in network management agent that allows it to be managed in-band
using SNMP or RMON (Groups 1, 2, 3, 9) protocols.
For out-band management the GS-2326 and GS-2326P offer a RJ45 console
port connector on the front panel, the GS-2352 and GS-2352P a serial port
on the back.
For a detailed description of the management features, refer to the
I
User's manual.
