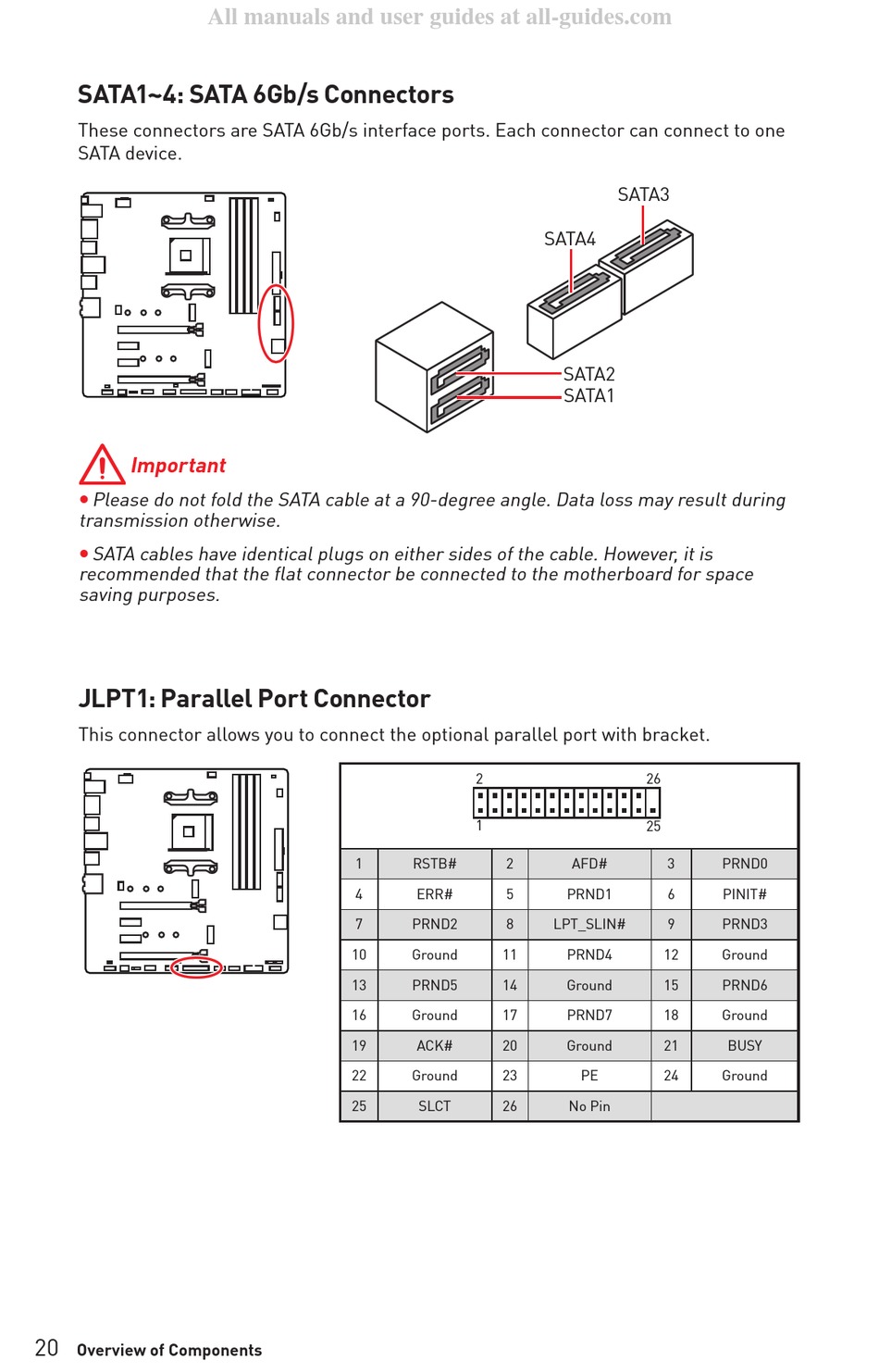

SATA1~4: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
y
transmission otherwise.
SATA cables have identical plugs on either sides of the cable. However, it is
y
recommended that the flat connector be connected to the motherboard for space
saving purposes.

JLPT1: Parallel Port Connector

This connector allows you to connect the optional parallel port with bracket.
