Connection-Terminal - Canton Smart Sub 12 Kurzanleitung

English

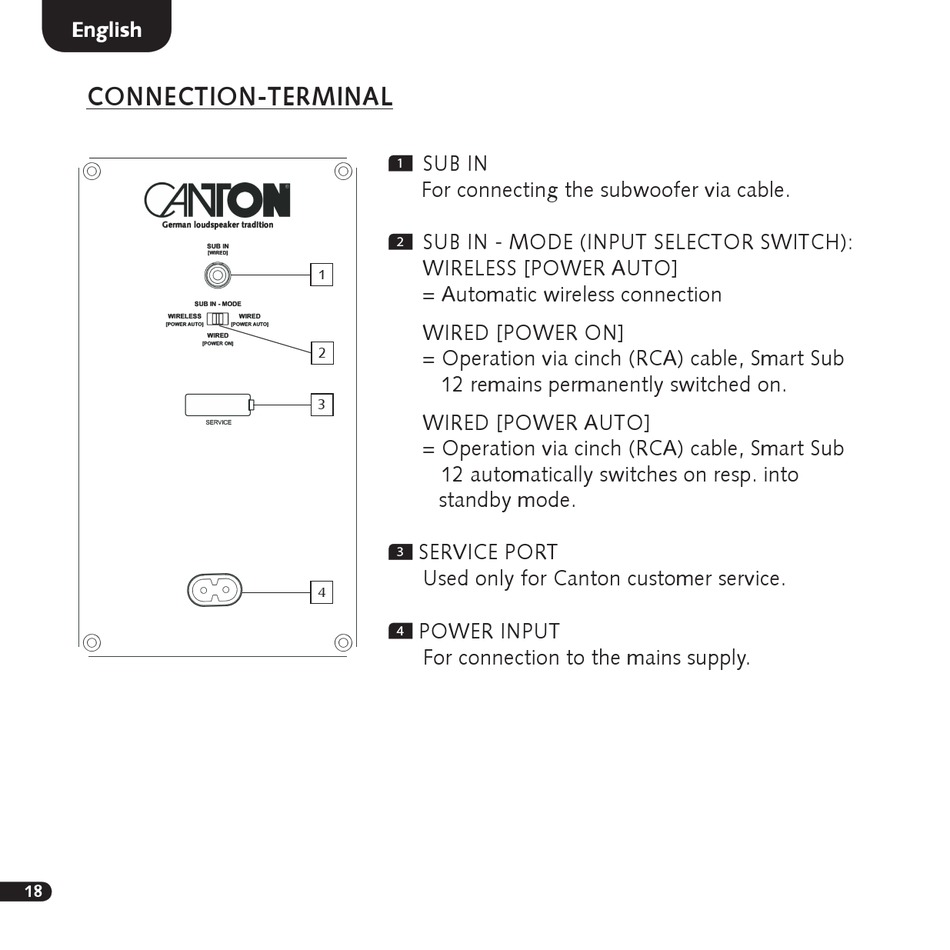

CONNECTION-TERMINAL

@
German loudspeaker tradition
SUB IN -MODE
WIRELESS mm
[POWER AUTO]
[POWER ON]
@
18
@
SUBIN
[WIRED]
1
WIRED
[POWER AUTO]
WIRED
2
3
SERVICE
4
@
SUB IN
1
For connecting the subwoofer via cable.
SUB IN - MODE (INPUT SELECTOR SWITCH):
2
WIRELESS [POWER AUTO]
= Automatic wireless connection
WIRED [POWER ON]
= Operation via cinch (RCA) cable, Smart Sub
12 remains permanently switched on.
WIRED [POWER AUTO]
= Operation via cinch (RCA) cable, Smart Sub
12 automatically switches on resp. into
standby mode.
SERVICE PORT
3
Used only for Canton customer service.
POWER INPUT
4
For connection to the mains supply.
