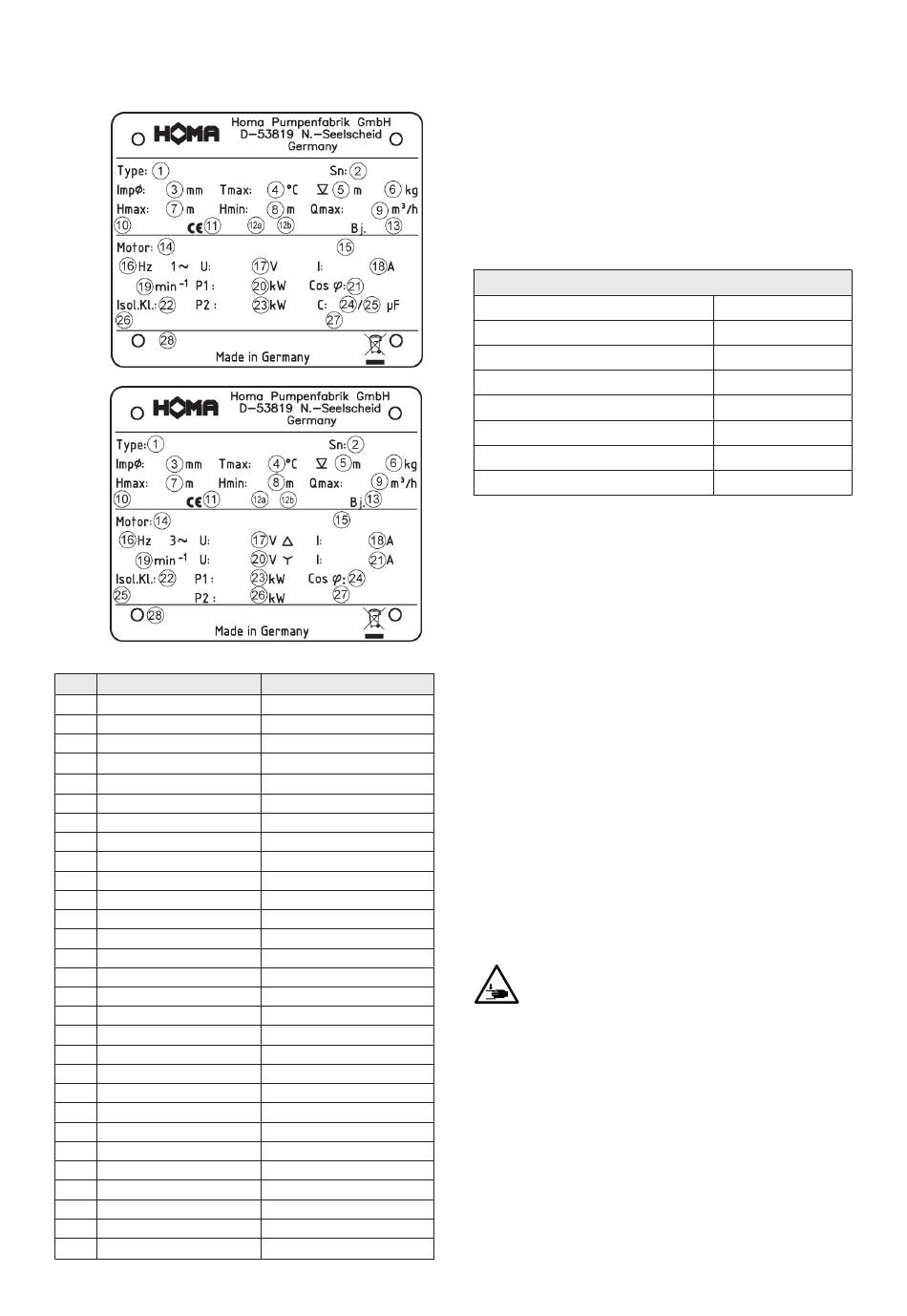

3.3.1. Nameplate

1Ph
3Ph
No. 1 Ph
1 Typ description
2 Serial number
3 Impeller diameter
Temperature of medium
4
5 Immersion depth
6 Weight
7 Hmax (delivery head max)
8 Hmin (delivery head min)
9 Qmax (delivery volume max) Qmax (delivery volume max)
10 Standard
11 Construction product test lab
12a Year type test
12b Declaration of performance
13 Build year
14 Motor type
15 IE Marking
16 Frequency
17 Voltage
18 Nominal current
19 Motor RPM
20 Power P1
21 Cos phi
22 Insulation class
23 Power P2
24 Start condenser
25 Operating condenser
26 Protection class
27 Operating class
Text field sales
28
26 | EngliSH
3 Ph
Typ description
Serial number
Impeller diameter
Temperature of medium
Immersion depth
Weight
Hmax (delivery head max)
Hmin (delivery head min)
Standard
Construction product test lab
Year type test
Declaration of performance
Build year
Motor type
IE Marking
Frequency
Voltage - 3Phase
Nominal current - 3Phase
Motor RPM
Voltage - Star Connection
Nominal current Star connection
Insulation class
Power P1
Cos phi
Protection class
Power P2
Operating class
Text field sales
3.3.2. Motor
The motor consists of an engine block and the engine
shaft with the impeller assembly. The circuit for power
supply is designed for the maximal mechanical perfor-
mance according to the characteristics or the nameplate
of the pump. The cable inlets as well as the circuit are
sealed resistant to jet water towards the pumped medi-
um. The shaft bearing is carried out by means of robust,
maintenance-free and permanently lubricated antifriction
bearings.
General motor nameplate data
Operating mode
Permitted medium temperature
Insulation class
Protection class
Cable length H501 - H508
Cable length H511
Voltage H...W
Voltage H...D

3.3.3. Monitoring devices

Temperature sensor
All pumps in alternating current version are provided with
a temperature sensor set in the motor winding, which
switches the motor off in the event of overheating of the
winding.
Checking direction of rotation
No check is required for single-handed motors, since
these always run in the correct direction.
Three-phase motors have the correct direction of rotat-
ing if connected to an anti-clockwise rotating field (U, V,
W -> L1, L3, L2). For smaller pumps the check can be
carried out by observation of the start-jerk. For this, place
the pump vertically onto the floor, slightly onto the edge
and switch on for a short time. When seen from above,
the pump rebounds slightly clockwise in correct direction
of rotation.
The direction of rotation is correct if the pump moves
clockwise, since the motor starts anti-clockwise when
seen from above.
Warning - rotating impeller!
Do not touch the rotating impeller or do not reach the
pump chamber through the pressure socket! Never
put your hands into the pump chamber or touch the
rotating parts in operating mode. Switch the machine
off and let the rotating parts come to gridlock before
carrying out maintenance work or repair work!
Furthermore it is possible to check the direction of ro-
tation with a 'motor and phase rotation indicator'. This
measuring device is held towards the engine block of the
running pump from externally and shows the direction of
rotation by means of LED.
S3 40%
35°C, short-term 60°C
F
IP68
10 meters
20 meters
230V / 1Ph / 50Hz
400V / 3Ph / 50Hz
