Eneo HDB-2080Z03IR D Schnellinstallations-Anleitung Seite 19

All manuals and user guides at all-guides.com

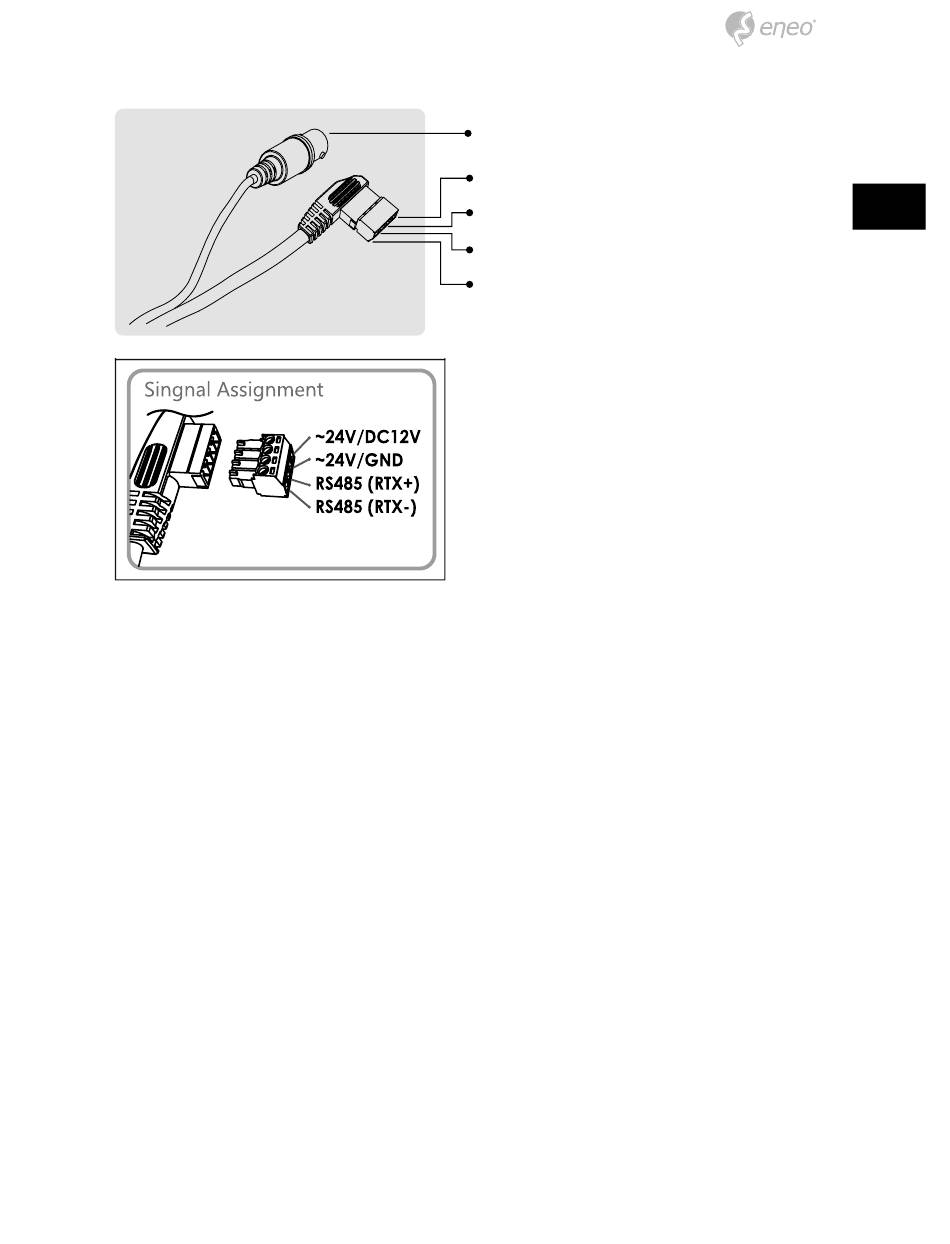

VIDEO (BNC)
AC24V/DC12V (Red wire)
EN
AC24V/GND (Black wire)
RTX+/RS485 (White wire)
RTX-/RS485 (Gray wire)
Attach the Signal Assignment Sticker in a visible spot for wiring reference.
