3. Display and buttons

4. Mounting instructions

The Smart1.0 can be used as portable unit or surface mounted on the
wall. Follow the below drawing to finish the wall mounting or a for battery
change.

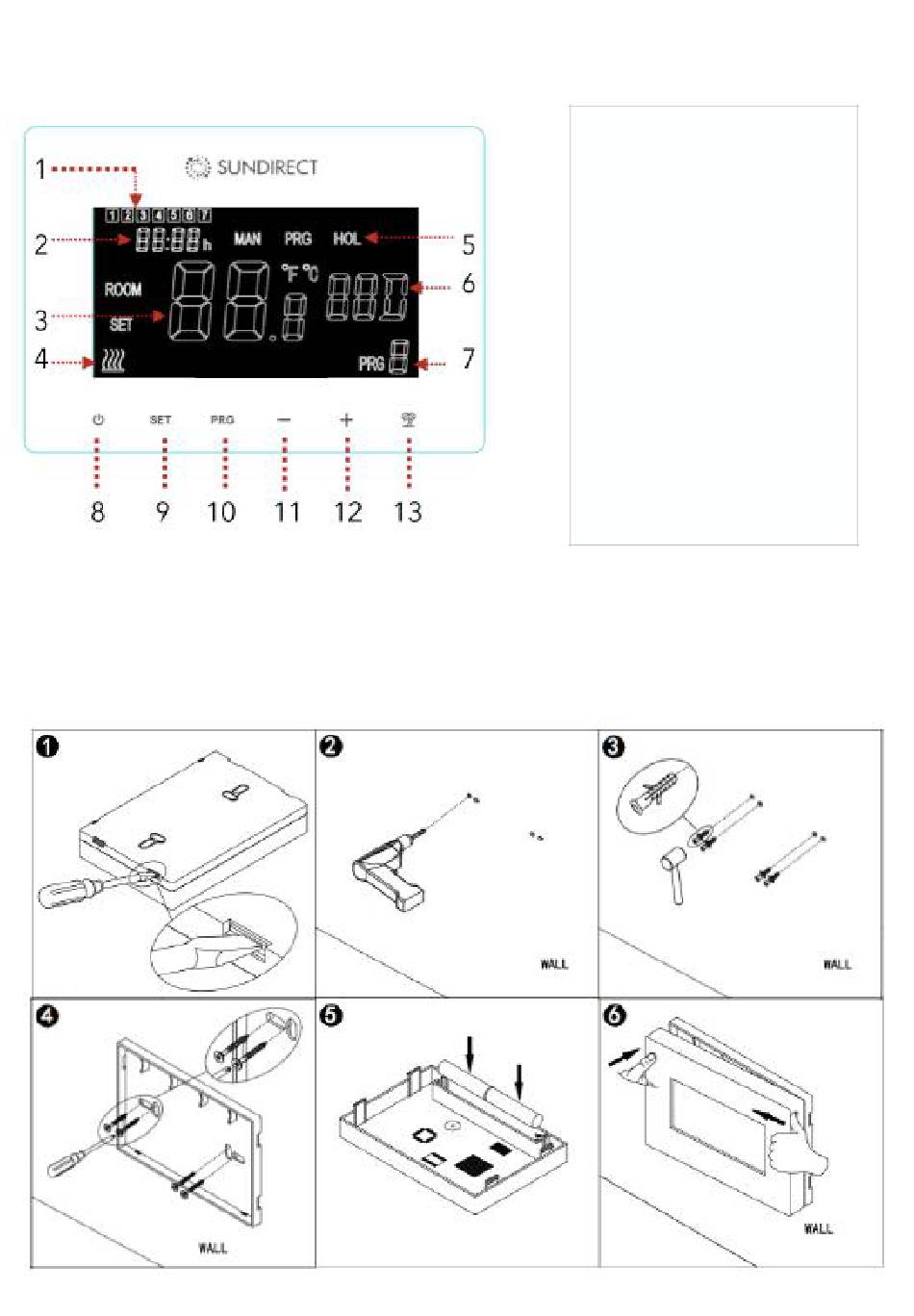

1: Weekday
2: Time
3: Temperature
4. Heat-on status
5: Operation Modes
6: Holiday dates
7: PRG period
8: Power button
9: SET button
10: PRG button
11: - button
12: + button
13: Holiday button
