Technical Specifications - Connect IT CHP-0800-DD Benutzerhandbuch

BLUETOOTH HEADPHONES
CHP-0800-DD
1

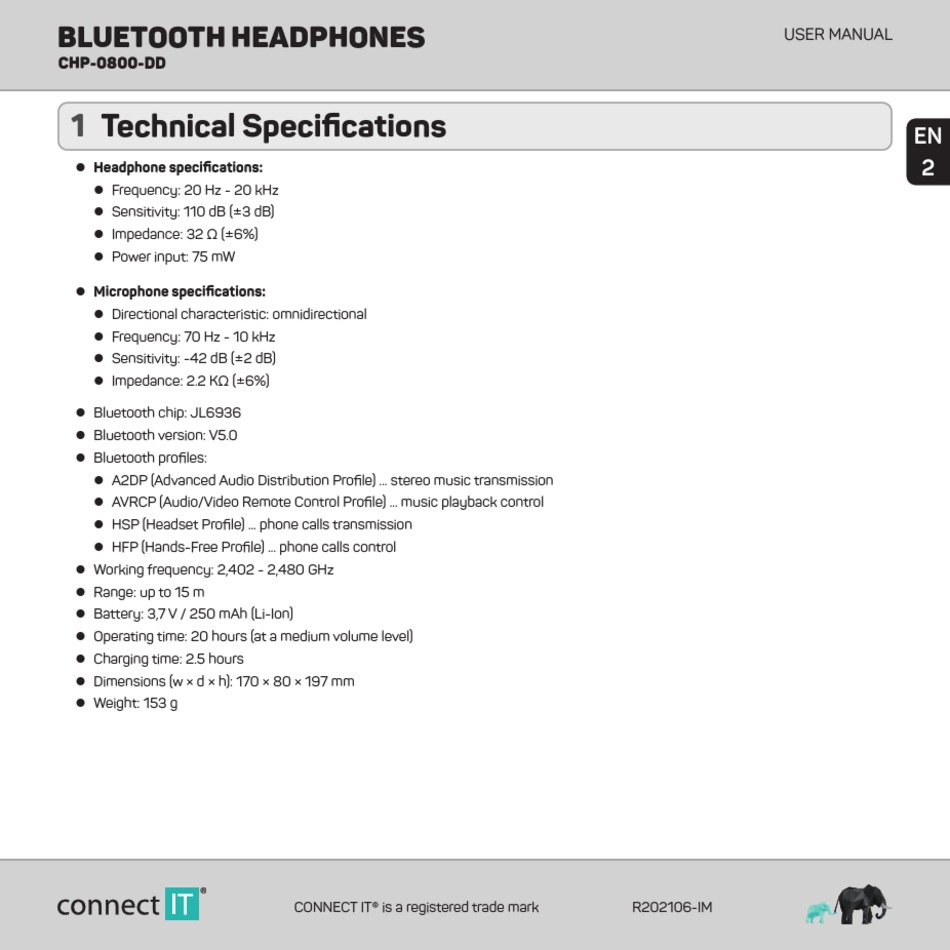

Technical Specifications

 Headphone specifications:
 Frequency: 20 Hz - 20 kHz
 Sensitivity: 110 dB (±3 dB)
 Impedance: 32 Ω (±6%)
 Power input: 75 mW
 Microphone specifications:
 Directional characteristic: omnidirectional
 Frequency: 70 Hz - 10 kHz
 Sensitivity: -42 dB (±2 dB)
 Impedance: 2.2 KΩ (±6%)
 Bluetooth chip: JL6936
 Bluetooth version: V5.0
 Bluetooth profiles:
 A2DP (Advanced Audio Distribution Profile) ... stereo music transmission
 AVRCP (Audio/Video Remote Control Profile) ... music playback control
 HSP (Headset Profile) ... phone calls transmission
 HFP (Hands-Free Profile) ... phone calls control
 Working frequency: 2,402 - 2,480 GHz
 Range: up to 15 m
 Battery: 3,7 V / 250 mAh (Li-Ion)
 Operating time: 20 hours (at a medium volume level)
 Charging time: 2.5 hours
 Dimensions (w × d × h): 170 × 80 × 197 mm
 Weight: 153 g
