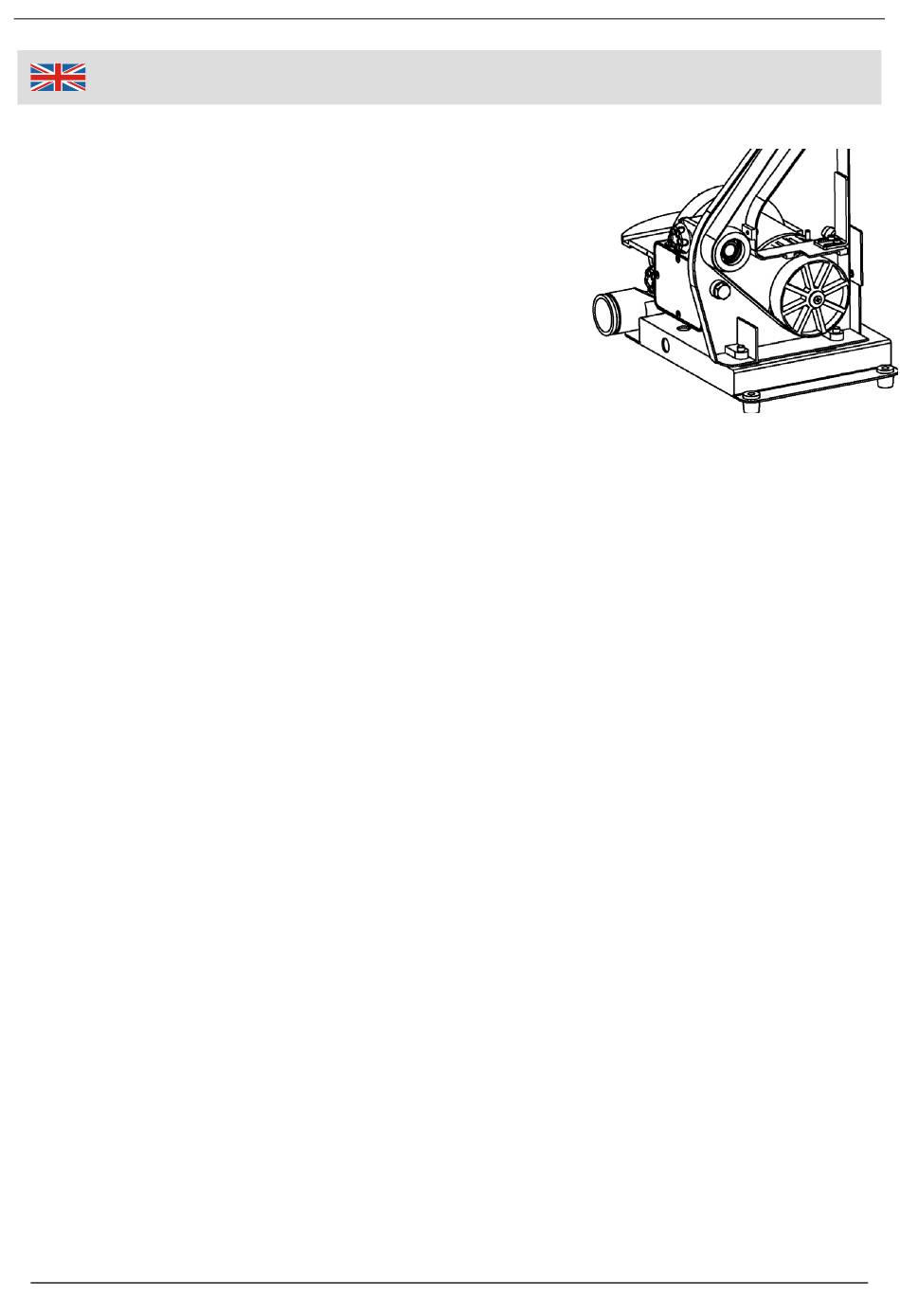

Removing and Inserting the Sanding Belt

1. Unscrew the cover locking knob (25) and
remove the acrylic glass cover.
2. Unscrew both Philips screws that fixed the
sanding belt bracket cover (27).
3. Remove the cover. The rear drive wheel is
spring supported. Press the adjusting knob
(49) to push the wheel slightly forwards in
order to remove the sanding belt out of the
wheels.
4. Insert the new sanding belt onto the wheels.
5. Turn the belt with your hand and observe, if the belt runs in the middle of
the wheels or if the belt moves sideward. Turn the adjusting knob (49) to
adjust the position of the wheel and to correct the run of the sanding belt.
6. Attach the sanding belt bracket cover (27) again and tighten the cover with
the Philips screws.
7. Place the acrylic glass cover onto the bracket cover (27) and fix them with
the cover locking knob (25).

Removing the Sanding Disc

The sanding disc (67) is glued to the sanding dish (70).
1. To remove the sanding disc, detach the sanding dish table (64) and the
sanding dish guard (71).
2. Carefully remove the used sanding disc.
3. Remove remaining adhesive residues.
4. Stick a new sanding disc of the same diameter onto the dish.
5. After fixing a new sanding disc, attach the sanding dish guard and the
sanding dish table onto the sander, as explained above.

Maintenance and Care
