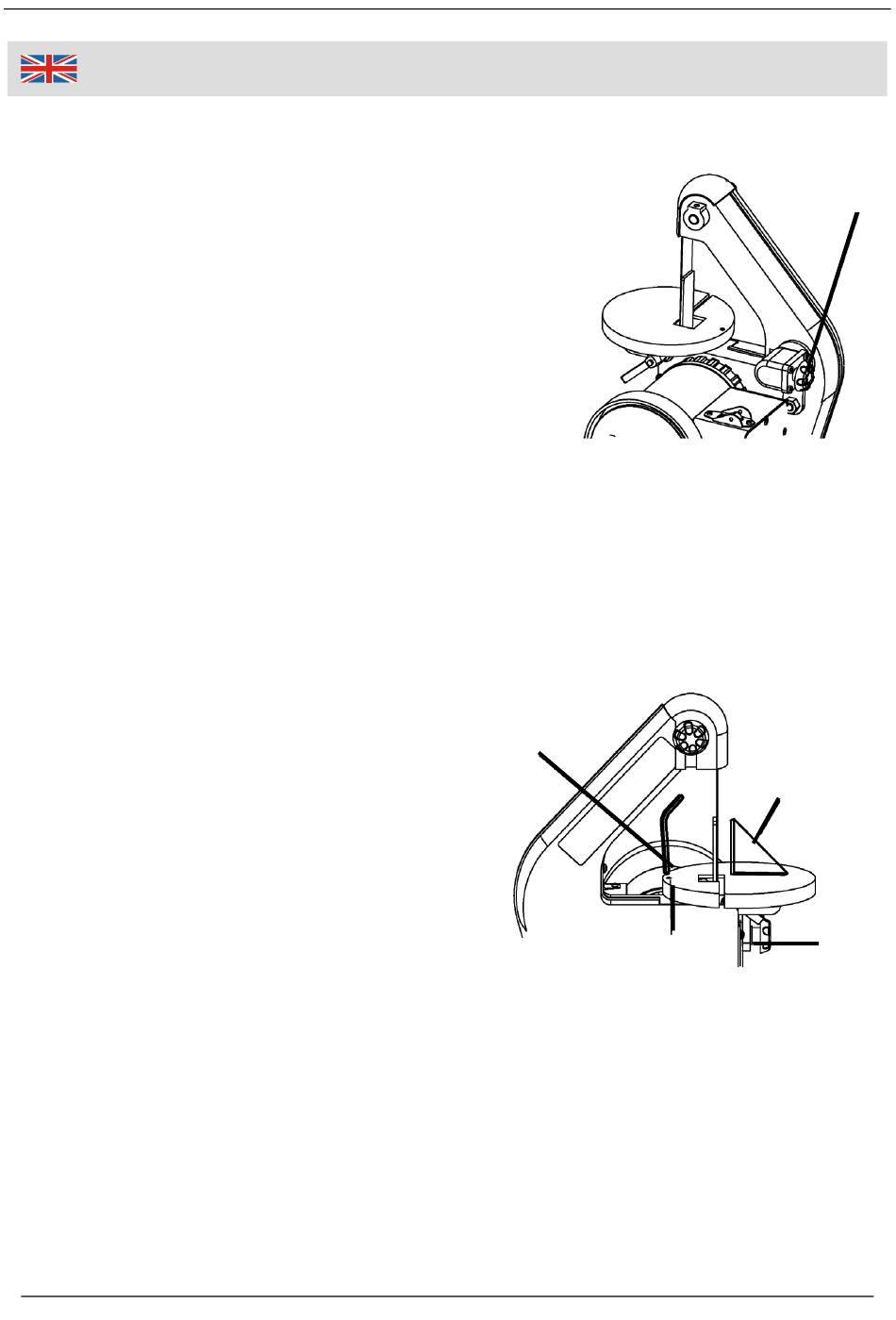

Adjusting the Sanding Belt (Fig. 4)
Belt adjustment is factory set, so that the sanding
belt will run centrically through the pulleys.
1. If the sanding belt does not run straight,
adjust the run of the sanding belt with the
adjusting knob (49).
2. If you turn the knob clockwise, the belt moves
to the right (facing the sander). By turning
counter clockwise the belt moves to the left.
Adjusting the Sanding Table (Fig. 5)
For most work, mount the sanding table to 90° angle to the sanding belt. The
sander is equipped with a positive stop in order to enable quick positioning the
sanding table to 90° angle to the sanding belt.
Adjust the positive stop as follows:
1. Loosen the locking lever (43) and
position the table to visual judgement
to 90°.
2. Use a right-angled triangle.
3. Place the one leg of the triangle, as
shown, on the table and hold the
other leg against the sanding belt.
Check, if the table is in 90° angle to
the belt. Adjust the table if necessary.
4. If the table surface is in 90° angle to the belt, tighten the Hex Socket
Screw (40) on the upper end of the table as far as possible. The bottom
side of the screw should slightly touch the plate underneath the table. Now
you can reposition the table to exactly 90° angle without new adjustment.
5. The sanding table can be mounted in different angles to the belt. Loosen
the locking lever (43) and tilt the table up to the required angularity. The
table edge is situated in front of the belt but too far from the belt.
Operation
Allen Wrench
15
Fig. 4
Fig. 5
Triangle
43
40
49
