1 INSTALLATION AND OPERATING INSTRUCTIONS
• TYPE 694 is a domestic regulator used to supply
gas to utilities at specific pressure and flow, as
indicated on the label (2).
• Make sure the regulator inlet and outlet are
compatible with the cylinder and the appliance
being used.
• The gas cylinder must always be kept in vertical
position. Do not move the cylinder during the
operation. When the device is used outdoors, it
shall be positioned or protected against direct
penetration by any tracking water.
• TYPE 694 versions featuring a release valve (the
marking "PRV" is visible on the label (2)) are
generally not type-approved for use in closed
premises (see local laws on the subject).
• TYPE 694 operating temperature range is 0/+50°C
for Butane and -20/+50°C for Propane and LPG.
• Never look for gas leaks with a live flame. Use
instead a solution of water and soap.
• In the event of any faults being found, close the gas
supply and immediately contact your gas supplier.
• Avoid that the hole on the cover (VENT) is
obstructed or stopped (9).
• This regulator is not for use in caravans and motor
caravans.
• For a permanent use outside the house, install the
regulator in a position protected from the weather,
paying great attention to the position of the vent
hole (9).

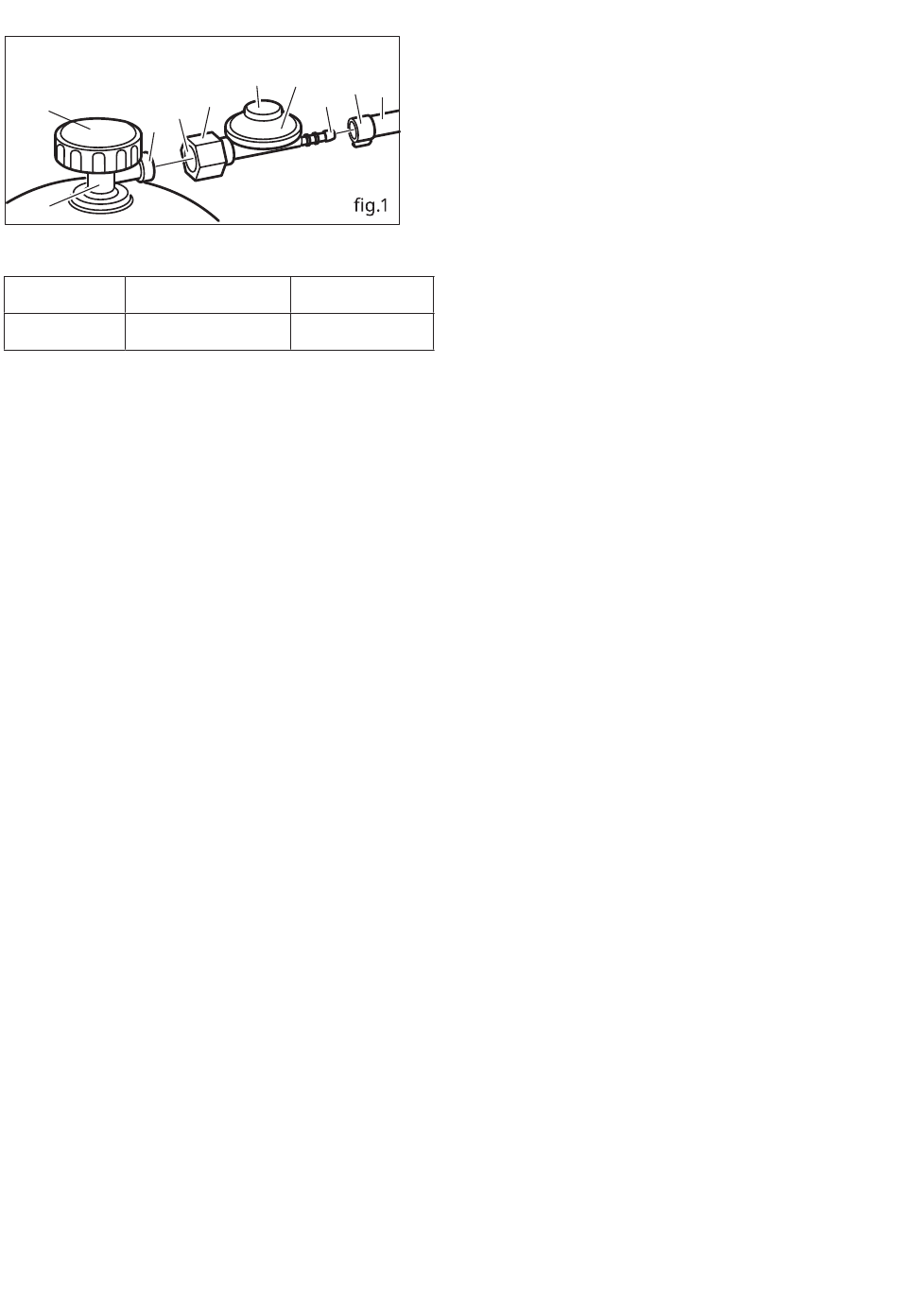

2 FITTING THE RUBBER HOSE (fig.1)
• Connect the end of the hose (4) to the regulator
outlet, if necessary with the aid of soapy water.
• Fasten the hose using clamps (8). Do not over
tighten to prevent damaging the hose (in some
countries, the hose clamps and the hose are of
standards dimensions.
3 FITTING THE REGULATOR ON THE VALVE
• Ensure cylinder valve is closed (7). Remove plastic
bung (6) if present.
• Before fitting the regulator to the cylinder, fit the
2
9
1
3
5
OUTLET
G ¼ MALE L.H.
tubing (4) ensuring that the nozzle (3) is completely
covered and hold firmly by a hose clip (8): make
sure that all valves and appliances are turned off
• Check all connections and ensure that they are free
8 4
from dirt and undamaged.
• When required, check that the gasket is present
and that is in good condition.
• The regulator should be supported and the
connection (1) fitted to the cylinder valve outlet and
tightened with a spanner.
4 GAS LEAKS
All gas leaks, however small, are dangerous and must
be eliminated. Escaping gas can normally be traced by
smell or sound but liquid detergent should be brushed
over the area to confirm the location of the leak.
NEVER look for a leak with a naked flame On cylinders,
if a leak is suspected, turn off gas supply immediately,
and extinguish any standing pilot lights or naked
flames. Ventilate the room if possible. If the cylinder
is indoors, move the cylinder outdoors to a safe place,
and call your dealer for advice.
5 EXCESS FLOW VALVE(EFV)
The TYPE 694 can be equipped with a safety device
"excess flow valve" designed to stop gas escaping in
case of accidental detachment or breakage of the
rubber hose used to supply gas to the user appliance.
The marking "excess flow" on the label (2) shows the
presence of this device on the TYPE 694.
The flow limiting device should operate as follows:
1. In the event of the hose moving from its correct
position:
• Close the cylinder valve,
• Fit the hose correctly back on the regulator hose
connection.
• Open the cylinder valve
• Wait at least 20 seconds before opening the
application again.
2. In case of the flow of gas being higher than the
capacity of the regulator, contact your gas supplier.
To ensure correct operation of the flow limiting
device during gas supply, the appliances hose length
should be 1.5m at maximum. In normal conditions of
use, in order to ensure the correct operation of the
installation, it is recommended that this regulator is
changed within 10 years of the date of manufacture. 10
years is a recommendation which may be replaced by
national rules or code of practice.
IMPORTANT: Never leave the regulator connected
to the cylinder valve when the rubber hose is not
correctly fitted in its housing as the flow limiting device
has not been designed to guarantee the gas supply
shut off function.
The product must never be tampered with or
dismantled; any such procedures lead to forfeiture of
warranty cover on the product and the manufacture
declines all consequent responsibility.
USER INSTRUCTIONS
Before proceeding, make certain that you understand
the WARNING statements in this manual.
• Preparation before cooking – To prevent foods
