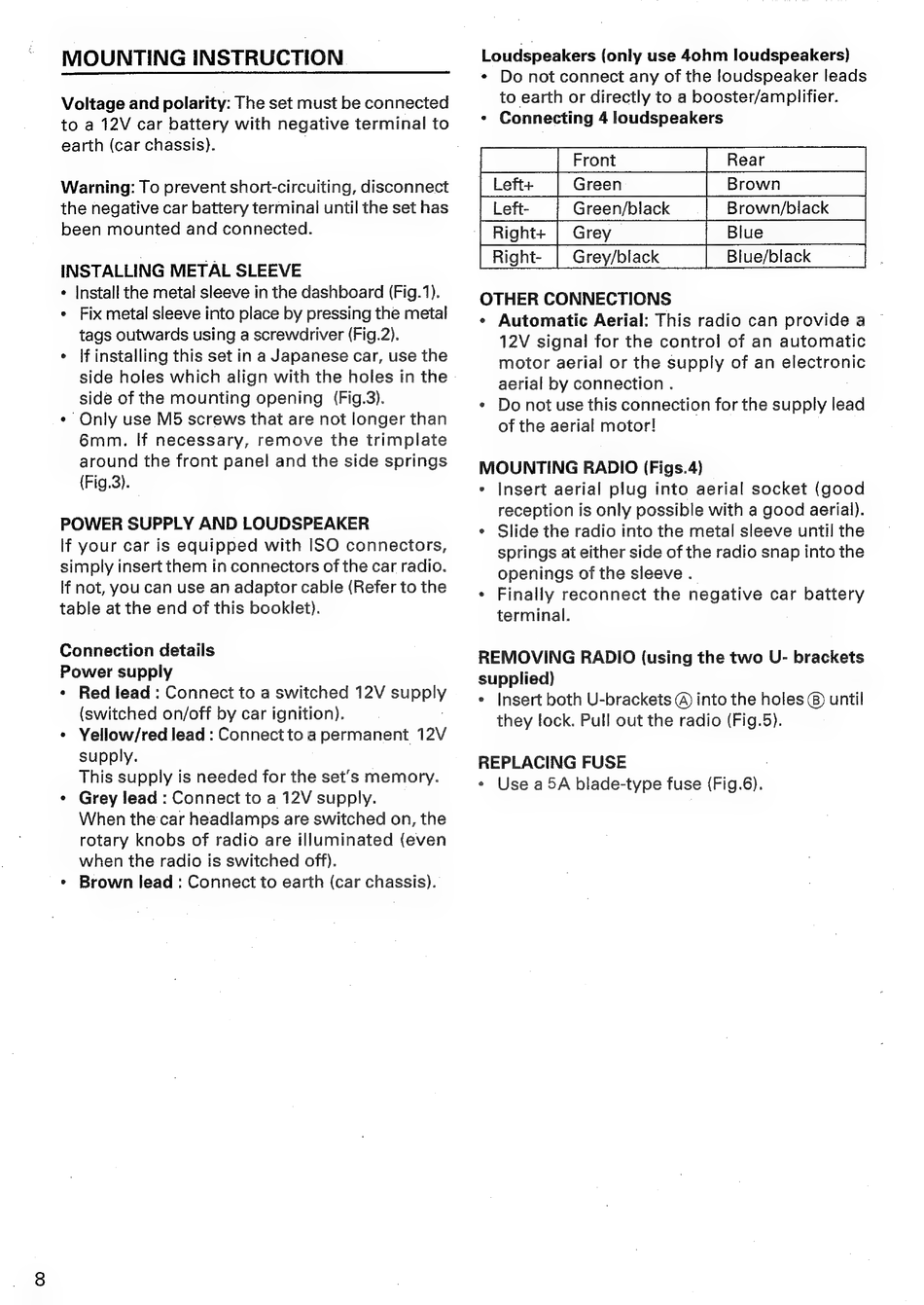

MOUNTING INSTRUCTION
Voltage and polarity: The set must be connected
to a 12V car battery with negative terminal to
earth (car chassis).
Warning: To prevent short-circuiting, disconnect
the negative car battery terminal until the set has
been mounted and connected.
INSTALLING METAL SLEEVE
Install the metal sleeve in the dashboard (Fig.1).
Fix metal sleeve into place by pressing the metal
tags outwards using a screwdriver (Fig.2).
If installing this set in a Japanese car, use the
side holes which align with the holes in the
side of the mounting opening
(Fig.3).
* Only use M5 screws that are not longer than
6mm.
If necessary,
remove
the trimplate
around the front panel and the side springs
(Fig.3).
POWER SUPPLY AND LOUDSPEAKER
lf your car is equipped with ISO connectors,
simply insert them in connectors of the car radio.
If not, you can use an adaptor cable (Refer to the
table at the end of this booklet).
Connection details
Power supply
¢ Red lead : Connect to a switched 12V supply
(switched on/off by car ignition).
* Yellow/red lead : Connect to a permanent 12V
supply.
This supply is needed for the set's memory.
¢ Grey lead : Connect to a 12V supply.
When the car headlamps are switched on, the
rotary knobs of radio are illuminated (even
when the radio is switched off).
* Brown lead : Connect to earth (car chassis).
| Left+
Loudspeakers (only use 4ohm loudspeakers)
* Do not connect any of the loudspeaker leads
to earth or directly to a booster/amplifier.
¢ Connecting 4 loudspeakers
| | Front
|
Rear
jLefty | Green
| Brown
:
OTHER CONNECTIONS
* Automatic Aerial: This radio can provide a
©
12V signal for the control of an automatic
motor aerial or the supply of an electronic
aerial by connection .
* Do not use this connection for the supply lead
of the aerial motor!
MOUNTING RADIO (Figs.4)
* Insert aerial plug into aerial socket (good
reception is only possible with a good aerial).
* Slide the radio into the metal sleeve until the
springs at either side of the radio snap into the
openings of the sleeve .
- Finally reconnect the negative car battery
terminal.
REMOVING RADIO (using the two U- brackets
supplied)
* Insert both U-brackets @ into the holes ®) until
they lock. Pull out the radio (Fig.5).
REPLACING FUSE
« Use a 5A blade-type fuse (Fig.6).
