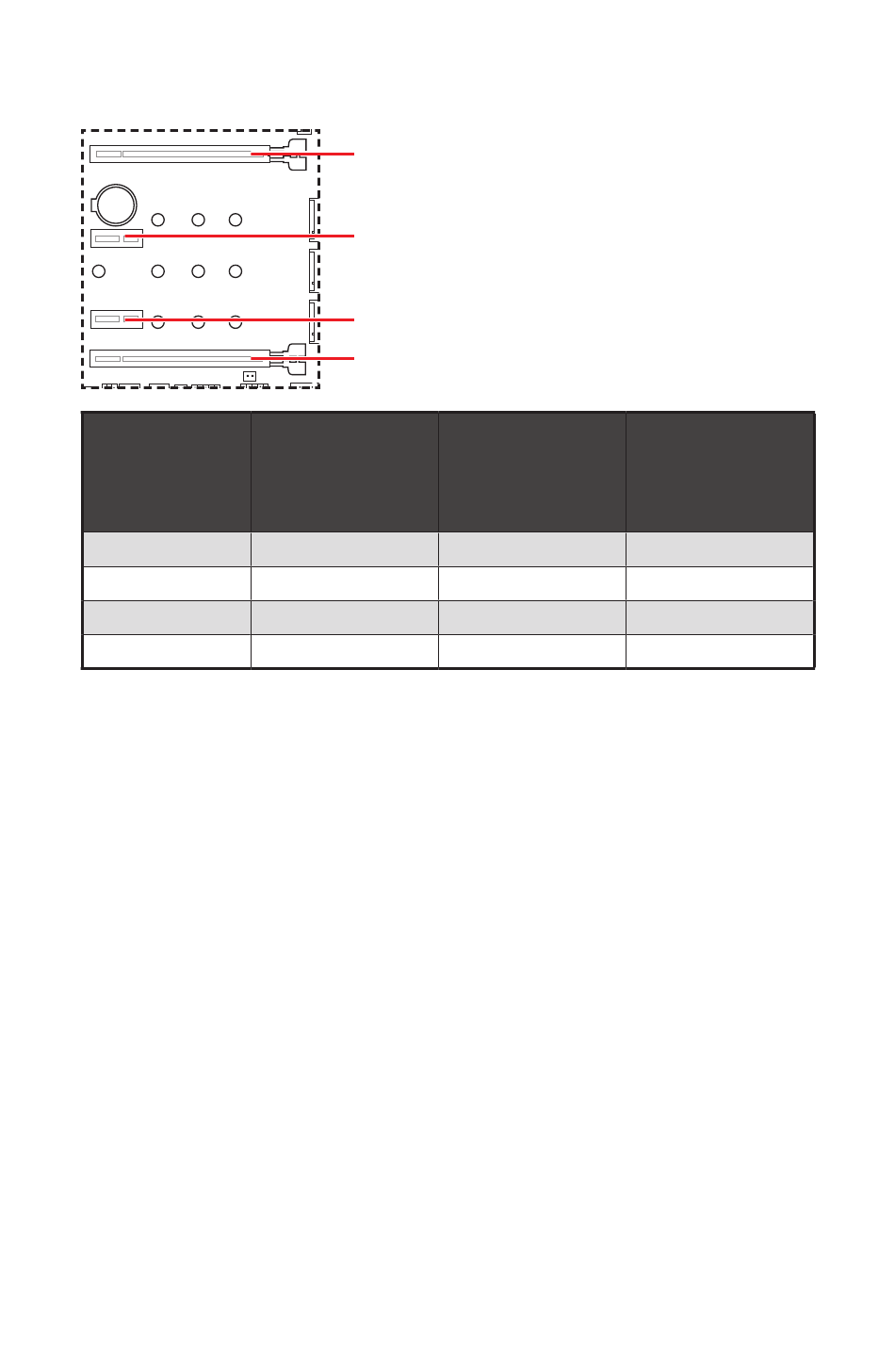

PCI_E1~4: PCIe Expansion Slots

BAT1
Slots
PCI_E1 (CPU)
PCI_E2 (Chipset)
PCI_E3 (Chipset)
PCI_E4 (Chipset)
⚠
Important
If you install a large and heavy graphics card, you need to use a tool such as MSI
∙
Gaming Series Graphics Card Bolster to support its weight to prevent deformation of
the slot.
∙ For a single PCIe x16 expansion card installation with optimum performance, using
the PCI_E1 slot is recommended.
When adding or removing expansion cards, always turn off the power supply and
∙
unplug the power supply power cable from the power outlet. Read the expansion
card's documentation to check for any necessary additional hardware or software
changes.
The PCI_E4 slot will be unavailable, when installing M.2 SSD into the M2_4 slot.
∙
PCI_E1: PCIe x16 slot (CPU)
PCI_E2: PCIe x1 slot (Chipset)
PCI_E3: PCIe x1 slot (Chipset)
PCI_E4: PCIe x4 slot (Chipset)
AMD Ryzen™
5000/ 3000 series
processors
PCIe 4.0 x16
PCIe 3.0 x1
PCIe 3.0 x1
PCIe 4.0 x4
AMD Ryzen™ 5000
G-/ 4000 G-/ 2000
series processors
PCIe 3.0 x16
PCIe 3.0 x1
PCIe 3.0 x1
PCIe 3.0 x4
AMD Ryzen™ 3000
G-/ 2000 G- series
processors
PCIe 3.0 x8
PCIe 3.0 x1
PCIe 3.0 x1
PCIe 3.0 x4
