Always close the chuck guard and
pulley cover before you start the
machine.
Secure workpiece to the table with
clamps or a vice to prevent rotating with
the drill bit.
When using a vice, always fasten it to
the table.
Check the save clamping of the
workpiece, chuck and tools before
starting the machine.
Never do any works "freehand" (hand-
holding the work piece rather than
supporting it on the table).
Support long workpieces with helping
roller stands.
Always adjust the depth stop to prevent
drilling into the table or into the
worholding device.
Feed a drill bit into the material with
only enough force to allow the drill bit to
work. Feeding too slowly may cause
burning of the workpiece or tool.
Feeding too quickly may cause the
motor to stop and/or the drill bit to break.
Do not use wire wheels or grinding
wheels on this machine.
Never cut magnesium-
high danger to fire!
Measurements and adjustments may
be carried out when the machine is at a
standstill only.
In case of danger push the
emergency stop button.

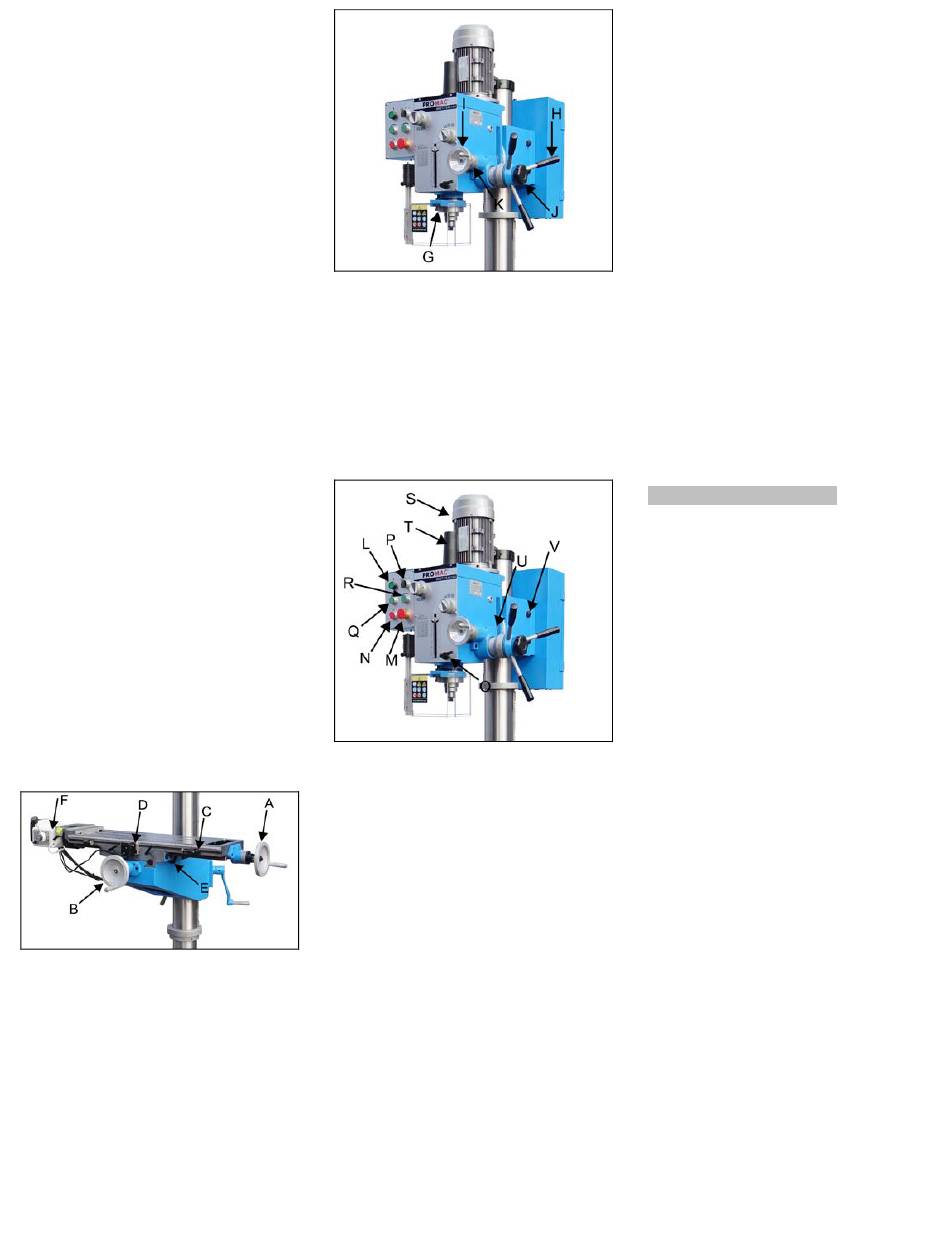

6.1 Controls
Fig 2
A....X-axis handwheel
B....Y-axis handwheel
C....X-axis adjustable stop
D....X-axis slide lock
E....Y-axis slide lock
F....X- axis power feed
Fig 3
G....Drill depth stop adjustment knob
H....Downfeed handles
I.....Fine feed hand wheel
J.....Fine feed engagement knob
K....Fine feed dial
Fig 4
L....Power ON button / Power Light
M....Emergency stop button
N....Power OFF button
O....Quill lock handle
P....Drilling / Tapping Switch
Q....Foward button
R....Reverse button
S....Motor
T....Draw bar cover
U....Head tilting lock nuts
V....Z-axis slide lock
6.2 Spindle speeds selection
The correct spindle speed depends on
the type of machining, the cutting
diameter, the material to be machined
and the cutting tool.
These are recommended max. speeds
for a 10mm high speed steel (HSS) tool
(e.g. drill bit).
Aluminium, brass
Cast iron
Mild steel
High carbon steel
Stainless steel
If a carbide (HM) tool is used about 5
times higher speeds can be chosen.
Generally speaking, the larger in
relation the cutting diameter, the
smaller the possible RPM.
For example:
Milling mild steel with an end mill of
20mm allows a speed of
400 RPM max.
with HSS tool
2000 RPM max.
with carbide tool
7. Setup and adjustments
Warning:
Setup and adjustment work may only
be carried out after the machine is
protected against accidental starting.
Press emergency stop button!
7.1 Changing spindle speeds
Speeds may only be changed at
complete spindle standstill.
WARNING:
Changing speeds during spindle or
motor rotation will damage the gears.
Refer to the speed chart whenever
changing speeds.
7.2 Arbor replacement
Remove the draw bar cover (T, Fig 4).
Select the lowest spindle speed to keep
the spindle from turning.
Loosen the drawbar with a wrench.
Loosen the drawbar 2 to max 3 full
turns.
Tap the drawbar head with a rubber
mallet to dislodge the tool taper.
7.3 Adjusting the Depth Stop
To drill multiple holes at the same
preset depth, use the depth stop:
1500 RPM
1000 RPM
800 RPM
600 RPM
300 RPM
