Index Part
No. No.
QS .............. JMDT764016X-QS1 .... Main power switch .................... JCH13-20 20/41000 ............................ AC21A 380V 20A
QF1 ............ JMDT764016X-QF1 .... Circuit breaker ........................... JCM6-25 ........................................... GV2ME14C/6-10A
QF2 ............ JMDT764016X-QF1 .... Circuit breaker ........................... DZ47-63 C2 .............. 230/400V-GB10963.1/IEC60898.1
QF3 ............ JMDT764016X-QF1 .... Circuit breaker ........................... DZ47-63 C2 .............. 230/400V-GB10963.1/IEC60898.1
QF4 ............ JMDT764016X-QF1 .... Circuit breaker ........................... DZ47-63 C2 .............. 230/400V-GB10963.1/IEC60898.1
TC .............. JMDT764016X-TC ....... Transformer ............................... JBK5-340 ........................................................ 400V 24V
SB1............. JMDT764016X-SB1 ..... Emergency stop button ............. LA125H-BS542 .........................................AC15 240V 3A
SB2............. JMDT764016X-SB2 ..... Power ON button ....................... LA125J-11D/206A ................................................ AC24V
SB3............. JMDT764016X-SB3 ..... Forward ...................................... LA125H-BA31 ..........................................AC15 240V 3A
SB4............. JMDT764016X-SB4 ..... Reverse ...................................... LA125H-BA31 ..........................................AC15 240V 3A
SB5............. JMDT764016X-SB5 ..... Power OFF button ...................... LA125H-BA42 ..........................................AC15 240V 3A
SQ1 ............ JMDT764016X-SQ1 .... Spindle Guard Switch ................. KW-7 ............................................................... 16A 125V
SQ2 ............ JMDT764016 V-SQ2 Open the door and power off
SQ3 ............ JMDT764016X-SQ2 .... Tapping micro switch ................. KW3-0Z ........................................................... 16A 125V
SQ4 ............ JMDT764016X-SQ3 .... Tapping limit switch ................... KW3-0Z ........................................................... 16A 125V
KM1 ........... JMDT764016X-KM1 ... Contactor ................................... 3TH82 ................................ Ui=660V Ith=30A 24V/50HZ
KM2 ........... JMDT764016X-KM2 ... Contactor ................................... 3TH82 ................................ Ui=660V Ith=30A 24V/50HZ
KM3 ........... JMDT764016X-KM2 ... Contactor ................................... 3TH82 ................................ Ui=660V Ith=30A 24V/50HZ
SA1 ............ JMDT764016X-SA1..... Drilling / Tapping Switch ............ LA125H-BD33 ..........................................AC15 240V 3A
K1 .............. JMDT764016X-K1 ....... Dual Speed Switch ..................... LW28-20/5 ......................................... Ui=690V Ith=20A
KT............... JMDT764016X-KT ....... Time relay .................................. H3Y-2 ............................................................. 24VAC 5A
M1 ............. JMDT764016X-M1 ..... Motor ......................................... 400V/50Hz/3PH ............................................ 1.1/1.5kw

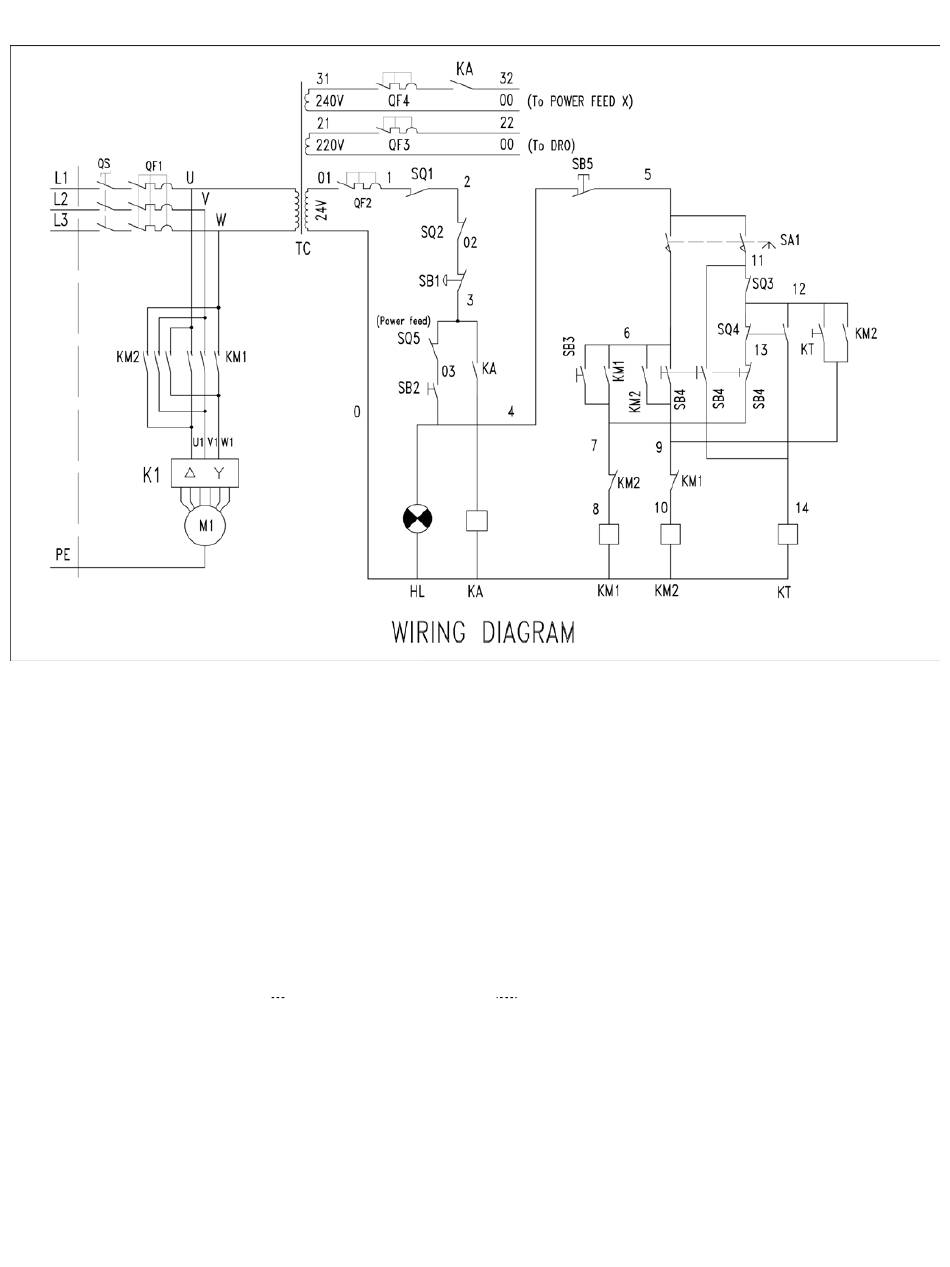

JMDT-764016X Wiring Diagram
Description Type
JWM6-11 ................................................................... TH
Spec.
