Die Removal And Replacement - Malco SCSRC1 Anleitungsblatt

WARNING: Blade and Die Servicing
Both the blade and die components feature sharp edges. Wear safety glasses and gloves when servicing. The blade and die
both feature reversible cutting edges for extended service life. The Blade and Die are also replaceable as a set.
J
M
N

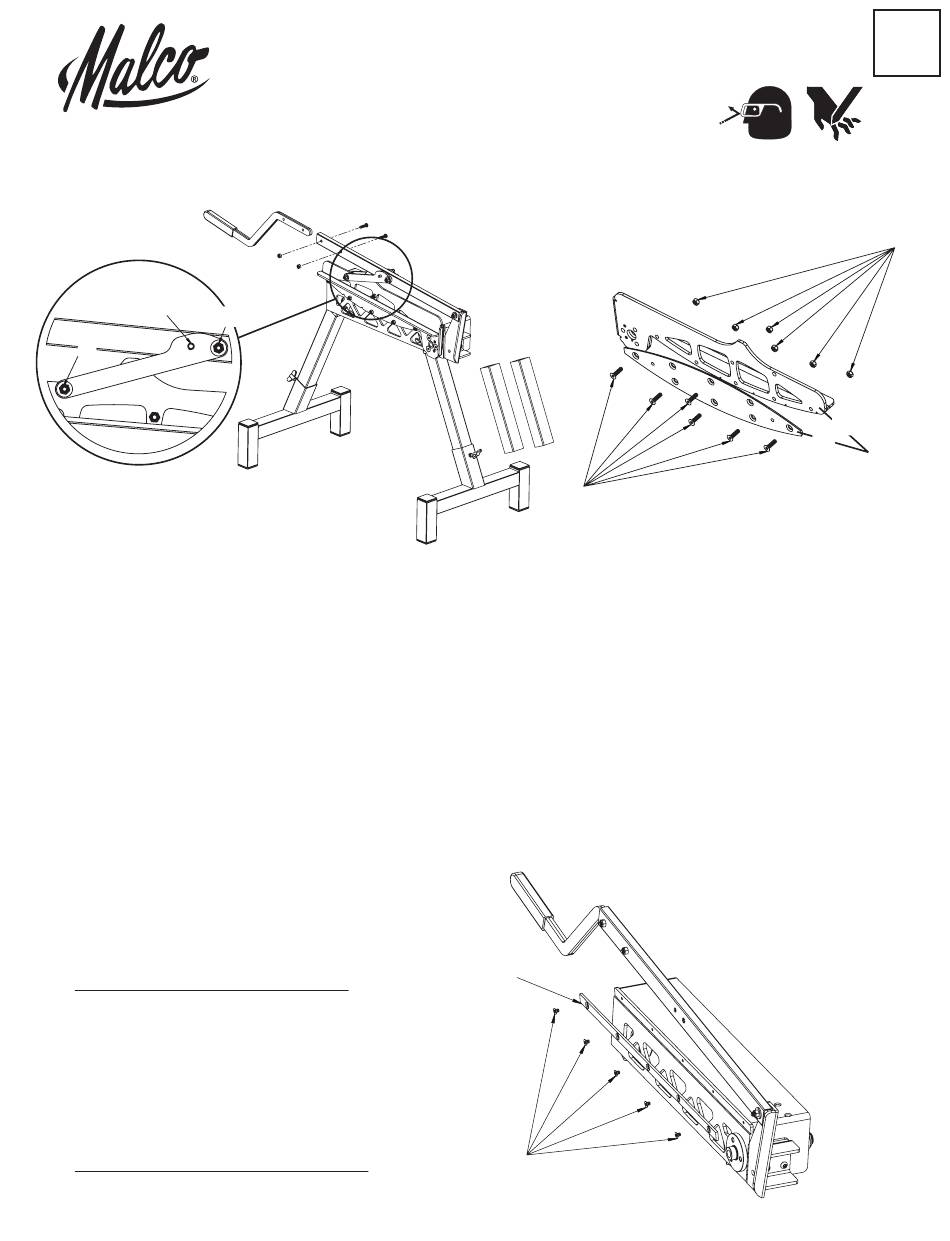

Blade Removal &
Replacement:
1. Close the tool and replace the cross pin lock J.
2. Locate and remove the 2 of the 3-M10 flat head screws K around the pivot. Loosen the third screw but leave in place for now.
3. Locate and remove the linkage bolt M closest to the cross pin.
4. Locate and loosen the other linkage bolt N slightly, to aid in reassembly. DO NOT REMOVE.
Caution! Heavy and Sharp: Keep a firm grip on blade assembly throughout remaining steps.
5. Remove the cross pin J and rotate the handle up until it comes to a stop.
6. Remove the final M10 flathead screw K.
7. Carefully remove the blade assembly P.
8. Locate and remove the 6-M8 screws and nuts Q holding the blade P1 to the blade support P2.
Use caution while removing these screws as the blade and its supports will become loose.
9. Remove the blade P1 from support P2.
10. Replace the blade with new, or reverse the current blade so that a new cutting edge is exposed.
11. Reassemble and secure the screws and nuts Q holding the blade P1 to the blade support P2.
TIGHTEN THESE FASTENERS UNTIL THEY ARE JUST SNUG.
12. Reverse steps 2-8 for reassembly.

Die Removal and Replacement:

1. Remove blade following preceeding instructions.
2. Locate and remove the 5-M6 flathead screws R holding
the die S to the die support. Use caution while removing
these screws as the die will become loose.
3. Remove the die S.
4. Replace the die with new, or reverse the current die
so that a new cutting edge is exposed.
5. Reverse steps 1-3 for reassembly of the die.
Refer to preceding instructions for blade reinstall.
SCSRC1 / SCSRC1 EV
Q
S
R
EN
Q
P2
P1
P
Blade Assembly
(View from table side)
3
