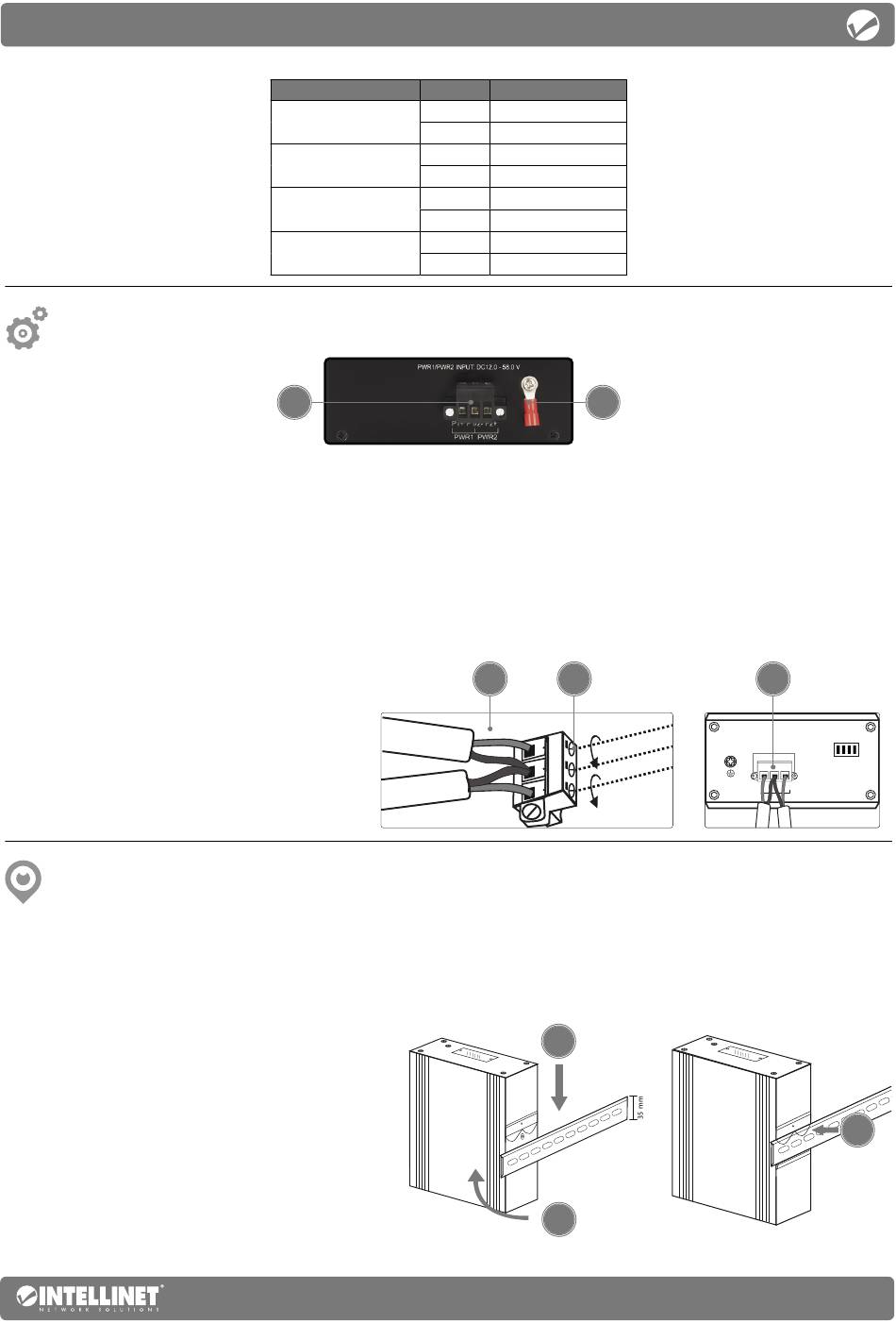

Side Panel - Intellinet Network Solutions 508322 V2 Bedienungsanleitung

DIP Switch

Side Panel

A—Grounding
ATTENTION: When installing unit, connect the chassis ground first; when uninstalling unit, disconnect chassis ground last.
Wire the grounding terminal to an earth grounding object to protect equipment from external electrical surges.
B—Terminal Block Installation
NOTE: Ensure all power is off/disconnected before beginning!
1 Loosen appropriate screws. Insert bare power-supply wires into appropriate terminal
slots (positive wire into positive slot; negative wire into negative slot).
2 Tighten appropriate screws to secure wires.
3 Install block into the device and tighten screws.
Placement
Desktop Installation
Prior to use, place/position the device:
• on a level surface with at least 25 mm (approx. 1") of clearance for ventilation;
• away from sources of electrical noise: radios,
transmitters, broadband amplifiers;
• within 100 m (approx. 328') of network
devices it's to be connected to.
DIN-Rail Installation
1 Angle spring of mounting clip
over top lip of DIN rail.
2 Push device down till clip clicks onto rail.
3 Ensure installation is stable.
Switch Position
On
1-I/R
Port Isolation
Off
On
2-VLAN
VLAN Isolation
Off
On
3-Q/I
QOS
Off
On
4-F/P
Flow Control
Off
B
Description
Enable port isolation
Turn off port isolation
Enable VLAN Isolation
Turn off VLAN Isolation
Enable QOS function
Turn off QOS function
Enable flow control
Turn off flow control
A
1 2
+
-
-
+
2
1
Instructions
3
PWR1/PWR2 INPUT:DC10V-58V
P1+ P1/2- P2+
PWR1 PWR2
3
English 3
