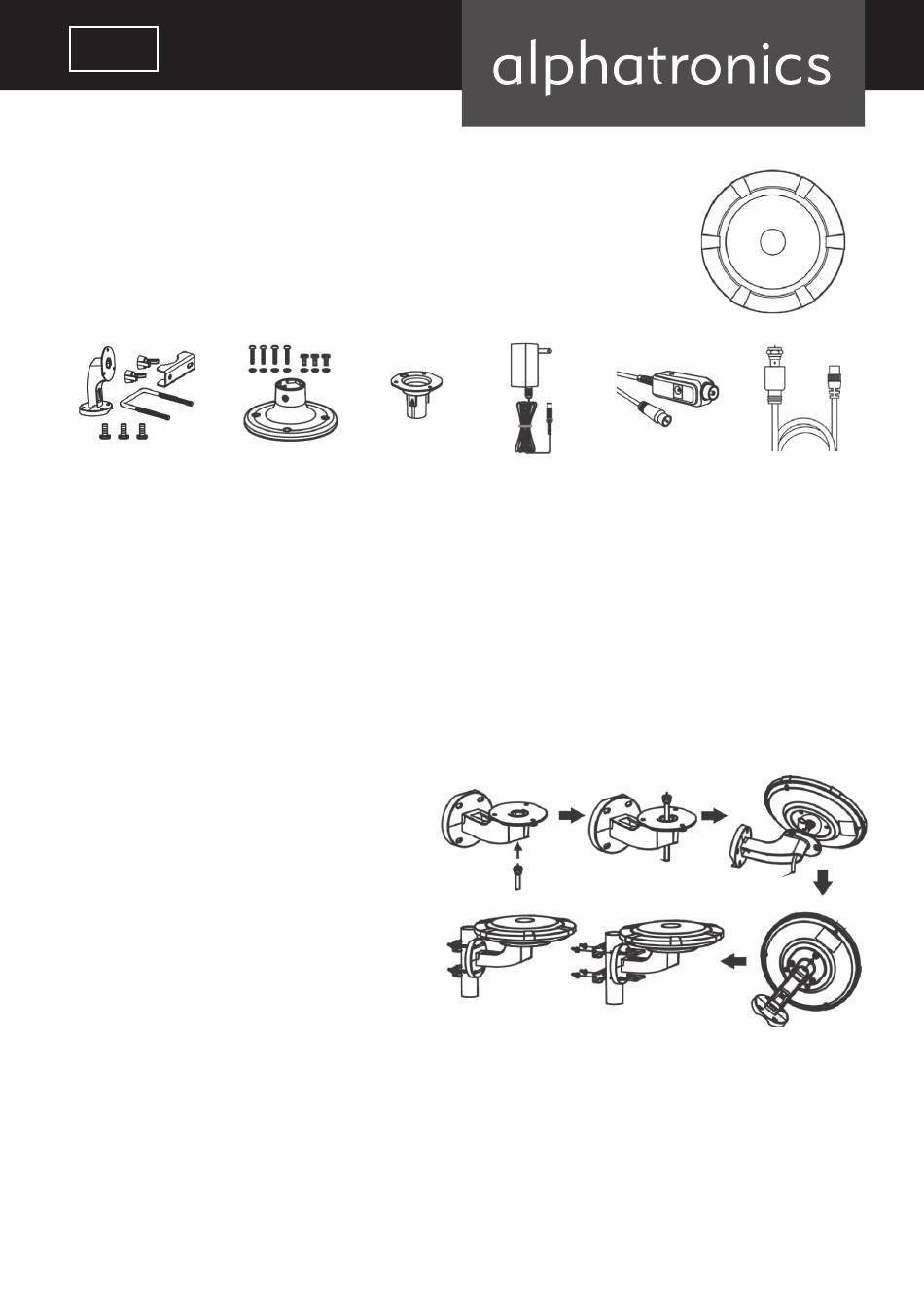

PACKAGE CONTENT

Please check the content before your installation.
1. AN 2 main unit
2. Pole mounting kits
(pole mounting fixing base, U-type screw×2, backplanex2, butterfly-type screw cap×4)
3. Surface mount fixing base
4. Antenna Base
5. Power adaptor
6. Power inserter
7. Coaxial cable × 1
INSTALLATION Antenna Placement:
Pole Mounted Application
1. Take out coaxial cable and pole
mounting fixing base.
2. Take the coaxial cable through the
fixing base.
3. Connect coaxial to the antenna main unit.
4. Fix the fixing base on the main unit with screws.
5. Attach backplane, then use U-type screws & 4 butterfly type screws nuts to fix the base
on the pole.
