ENGLISH

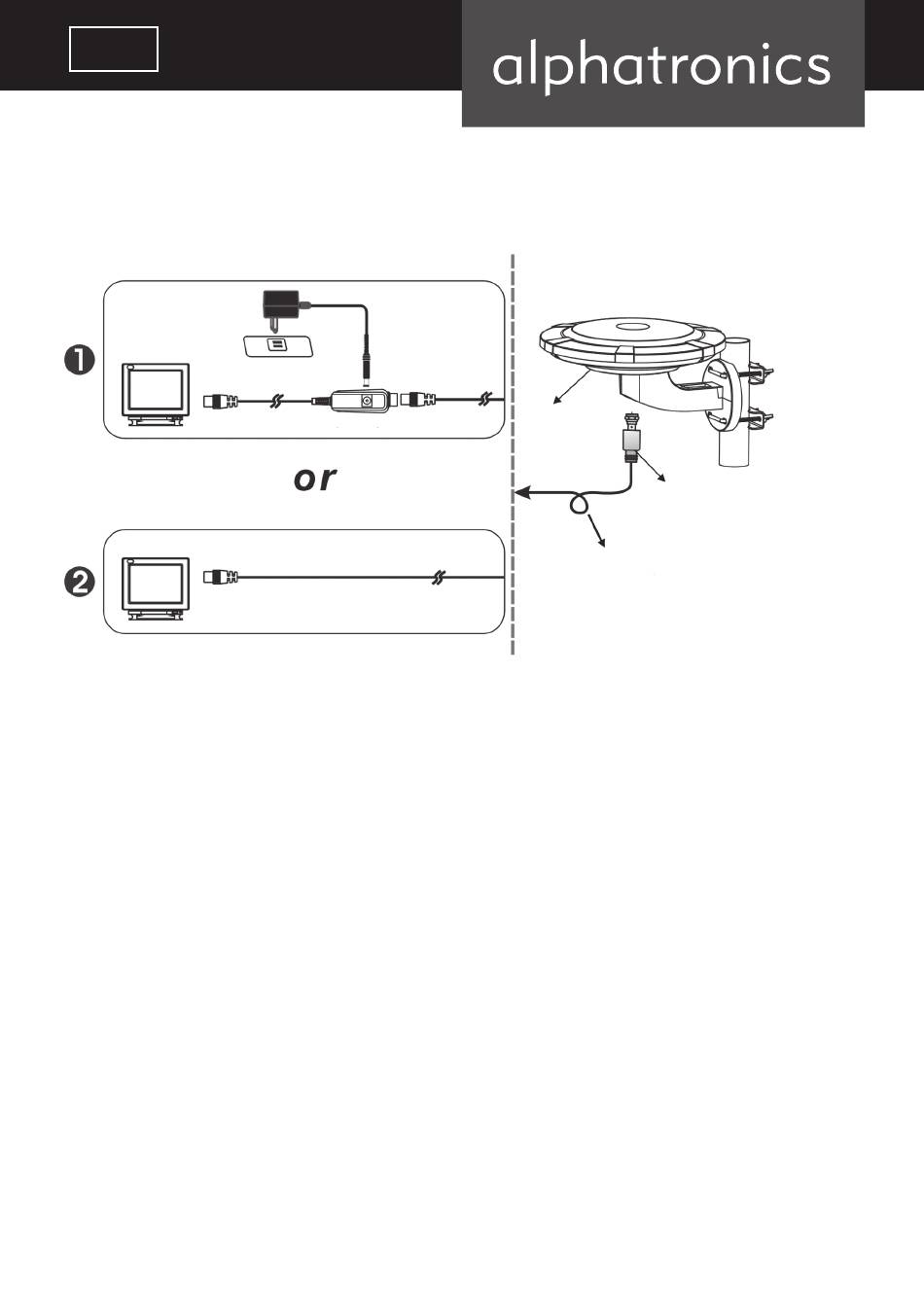

Antenna Connection:
Powered by a Power Adaptor
Power Inserter
(AC 230 V input)
STB or Digital TV
STB or Digital TV
Powered by a STB or Digital TV
Powering the Antenna by a Power Adaptor
1. Follow one of the antenna placement instructions above
2. Connect the other end of the coaxial cable to the power inserter.
3. Connect another end of the power inserter to your Set-Top-Box (or Digital TV set).
4. Take out the power adaptor, connect to the DC IN of the power inserter (the LED on the
power inserter will indicate the power status), and then connect the other end of the power
adaptor to a power outlet. Please use the provided power adaptor only.
5. Turn on the power of STB and TV, and check for the signal.
Powering the Antenna by STB or Digital TV
1. Follow one of the antenna placement instructions above.
2. Connect the other end of coaxial cable to the STB or Digital TV directly.
Coaxial Cable
Coaxial Cable
Screws
Rubber cover
Water Drop Loop
Recommended
