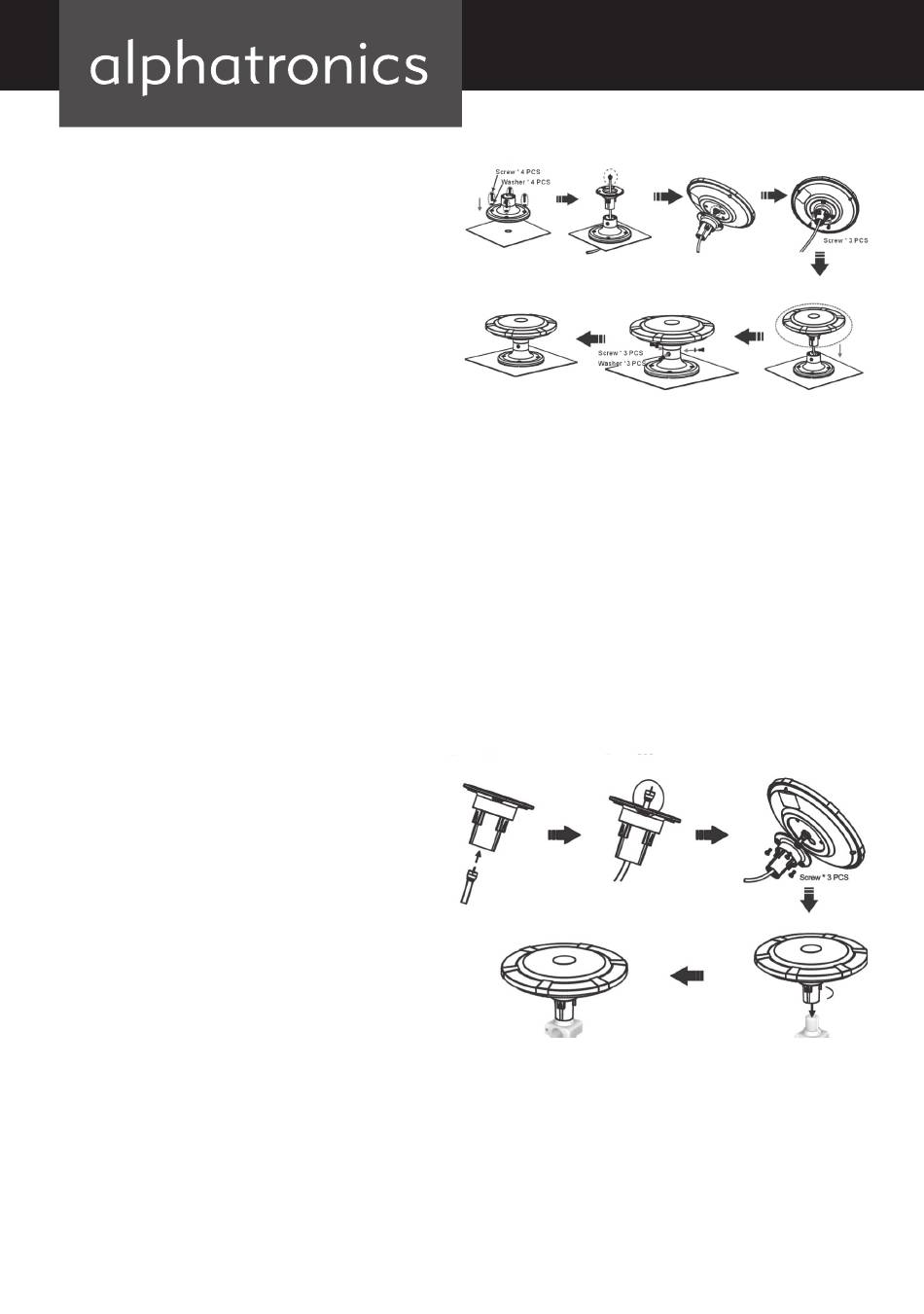

Vehicle (Caravan) Application
1. Place the fixing base with screws and
washers on the vehicle kits (provided
by vehicle accessories suppliers).
2. Take out the coaxial cable through the
vehicle kit, fixing base, and antenna base.
3. Connect coaxial cable to antenna main unit.
4. Fix the antenna base on the main unit.
5. Place the main unit on the fixing base.
6. Fix the screws (3pcs) on the fixing base and main unit
7. Finish installation
Please note:
Vehicle kits for the antenna may be varied, please check with local vehicle accessories
suppliers.
Please note:
Please make sure the bottom of fixing base contain rubber O type ring; in order to perform
waterproof function well.
Yacht Application
1. Take out the coaxial cable and antenna
base.
2. Take the coaxial cable through the
antenna base.
3. Connect coaxial cable to the main unit
and fix the antenna base on the main unit
with screws (3 pcs)
4. Fix the antenna base on the yacht kits
(provided by yacht accessories suppliers).
5. Finish installation
Please note:
Yacht kits for the antenna may be varied, please check with local yacht accessories suppliers
Please note: The size of thread of this antenna base is 1"-14UNC, please check with yacht
accessories suppliers to find the compatible kits
