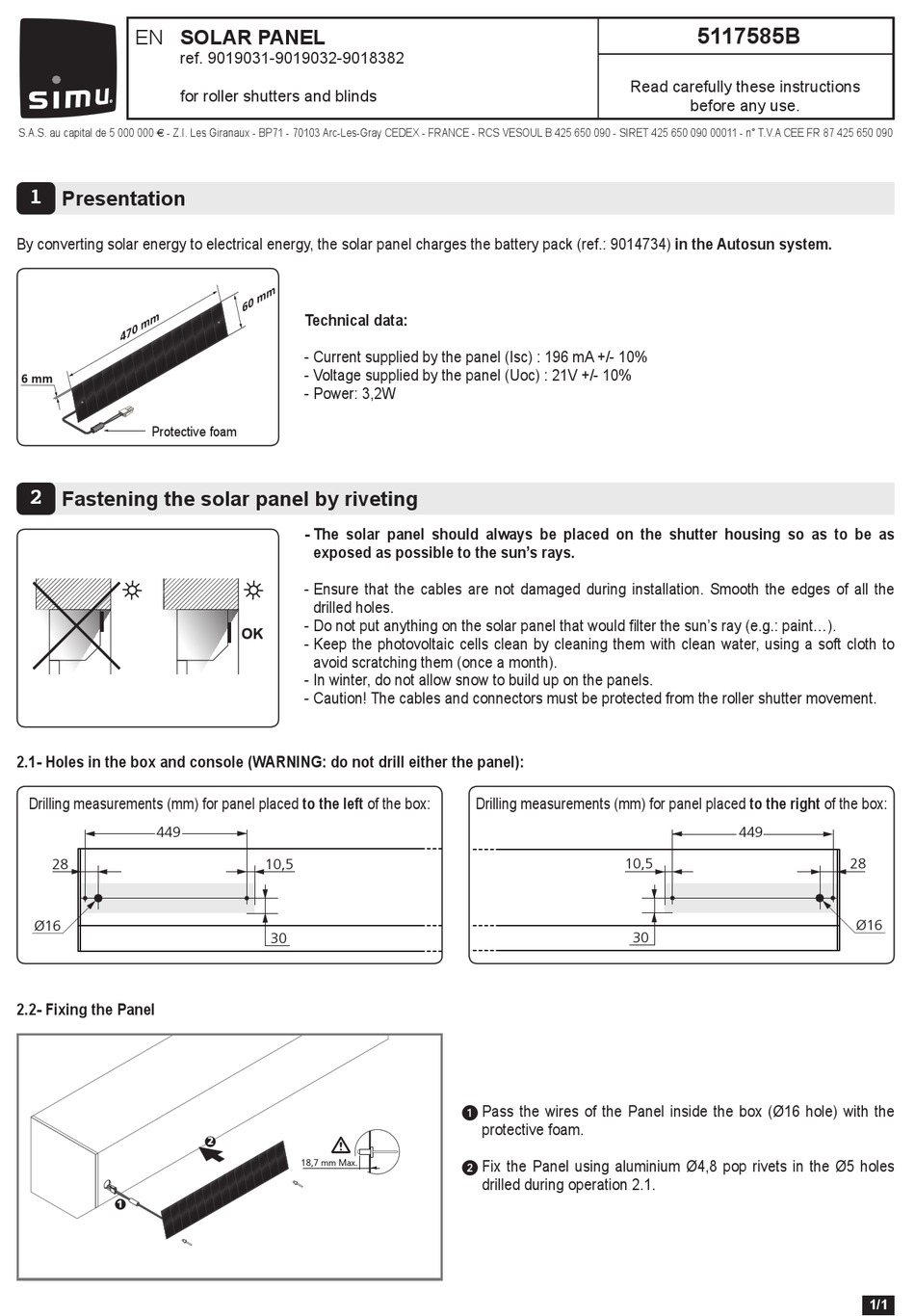

EN SOLAR PANEL
ref. 9019031-9019032-9018382
for roller shutters and blinds
S.A.S. au capital de 5 000 000 ! - Z.I. Les Giranaux - BP71 - 70103 Arc-Les-Gray CEDEX - FRANCE - RCS VESOUL B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090
1

Presentation

By converting solar energy to electrical energy, the solar panel charges the battery pack (ref.: 9014734) in the Autosun system.
m
0 m
4 7
6 mm
Protective foam
2
Fastening the solar panel by riveting
2.1- Holes in the box and console (WARNING: do not drill either the panel):
Drilling measurements (mm) for panel placed to the left of the box:
449
28
Ø16
2.2- Fixing the Panel
1
m m
6 0
Technical data:
- Current supplied by the panel (Isc) : 196 mA +/- 10%
- Voltage supplied by the panel (Uoc) : 21V +/- 10%
- Power: 3,2W
- The solar panel should always be placed on the shutter housing so as to be as
exposed as possible to the sun's rays.
- Ensure that the cables are not damaged during installation. Smooth the edges of all the
drilled holes.
- Do not put anything on the solar panel that would filter the sun's ray (e.g.: paint...).
- Keep the photovoltaic cells clean by cleaning them with clean water, using a soft cloth to
avoid scratching them (once a month).
- In winter, do not allow snow to build up on the panels.
- Caution! The cables and connectors must be protected from the roller shutter movement.
10,5
30
2
18,7 mm Max.
Read carefully these instructions
Drilling measurements (mm) for panel placed to the right of the box:
10,5
30
 Pass the wires of the Panel inside the box (Ø16 hole) with the
protective foam.
 Fix the Panel using aluminium Ø4,8 pop rivets in the Ø5 holes
drilled during operation 2.1.
5117585B
before any use.
449
28
Ø16
