USER MANUAL
Manufacturer and importer:
IMMAX, Pohoří 703, 742 85 Vřesina, EU | www.immax.cz
Designed in Czech Republic, Made in China
IMMAX NEO SMART CONTROLLER DIMMABLE V5
2-BUTTON ZIGBEE 3.0
TECHNICAL PARAMETERS:
Note: with the connection of the neutral wire, under the button
Communication protocol: ZigBee 3.0
Frequency: 2400MHz~2483.5MHz
Maximum RF output power: ZigBee: 10dBm - max 19dBm
Zigbee repeater: No
Network standby power (Pnet): 0.4W
Input power: AC 120 - 240 50 Hz / 60 Hz
Load range: 2x 100W
Thermal fuse, protection against overheating: Yes
Current fuse, protection against overvoltage and overload: Yes
Wireless range: 30 m line of sight, 10 m in built-up area
Operating temperature: -10°C to 40°C.
Operating humidity: 20% - 80%.
Dimensions: 46 x 46 x 18 mm (without holder)
Degree of protection: IP20
SAFETY NOTICE
Failure to follow the recommendations may be dangerous or cause you to break the law.
The manufacturer, importer, distributor or dealer shall not be liable for any loss or damage
resulting from failure to follow the instructions in this manual.
1. Risk of electric shock. The main circuit breaker or fuse must be turned off during
installation.
2. Only a licensed electrician may install the device.
3. Place the device out of the reach of children.
4. The device must be located away from water, excessive moisture or heat.
5. Do not install the device near a source of strong electromagnetic radiation. Interference
and malfunction could occur.
6. Do not attempt to repair, modify or disassemble the device. This could result in electric
shock and subsequent damage to equipment and property.

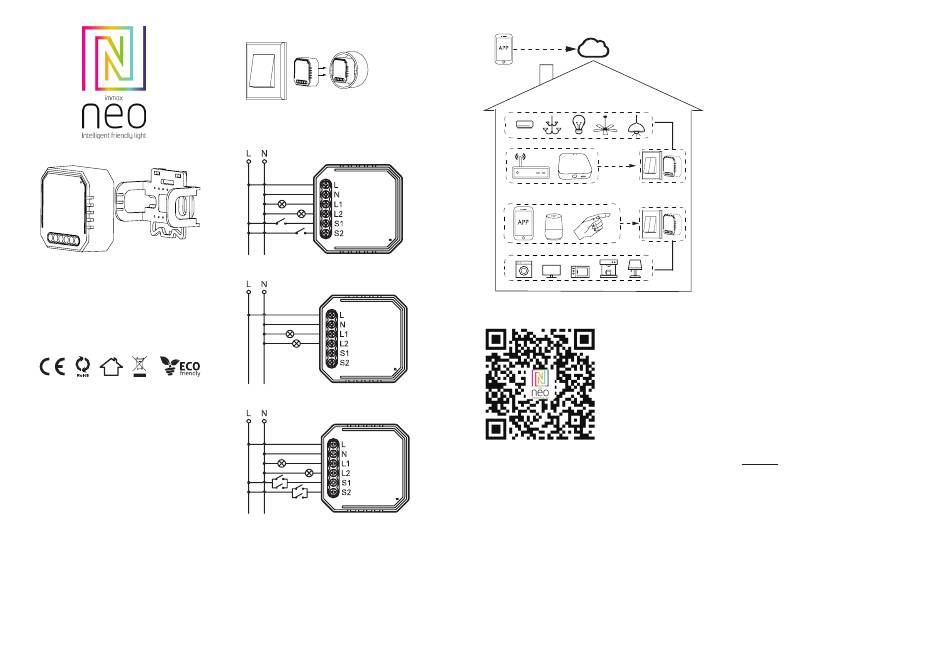

INSTALLATION AND WIRING DIAGRAM:
The V5 dimmable controller allows the end user to access a manual control function to
turn on/off or adjust the light level at the push of a push button switch.
Short press <1s - permanent on/off function
Long release >1s – lighting intensity setting
One switch
No switch
Double switch
Comment:
1) Settings in the application or manual settings of the button switch can overwrite each
other, the last setting will remain in the controller's memory.
2) App control is synchronized with manual settings.
3) Terminals S may be left unconnected unless manual operation via the push button
switch is required.
- Turn off the power supply before installation
- Connect the wires according to the diagram
- Put the module back into the wiring box
- Turn on the power supply and proceed to install the device in the Immax NEO PRO
application
CONTROL YOUR HOME FROM ANYWHERE:
DOWNLOAD IMMAX NEO PRO AND REGISTER
Scan the QR code and download the Immax NEO PRO app.
Or search for and install the Immax NEO PRO app in the App Store or Google Play.
- Launch the Immax NEO PRO app and tap "Register" to create your own account.
- Once you have completed registration, log in with your account.
PAIRING THE PRODUCT TO THE APPLICATION
Preparation: make sure your mobile phone and the Immax NEO PRO smart gateway are
connected to the internet.
Turn on the Immax NEO product, the LED should flash quickly. If not, reset the device.
Open the Immax NEO PRO app, click on the "Room" icon. Then click on the "+" icon to
add a new device. In the left column, select the Immax NEO category. Select the device
from the available products. Select the smart gateway you want to pair this device with
(note: this is necessary if you have more than one smart gateway
Click on the "Next step" icon. Confirm that the LED is flashing. Click on the "Next Step"
icon. Wait until the device is properly paired with the Immax NEO PRO smart gateway.
Enter the device name. Select the room where you want the device to be located. Click
on "Done."
RESET THE DEVICE
- Long press the button on the controller for more than 10 seconds. The LED will flash
rapidly or an audible alert will sound - the device is reset
- Switch the device off and on 5 times with the wall switch. The interval between switching
off and on should be 1-2 seconds. After 5 power-ups the LED will flash rapidly or an
audible alert will sound - the device is reset.
SAFETY INFORMATION
CAUTION: Keep out of reach of children. This product contains small parts, which may
cause suffocation or injury if swallowed.
WARNING: Every battery has the potential to leak harmful chemicals that can damage
skin, clothing or area where the battery is stored. To avoid the risk of injury, do not allow
any substance from the battery to come into contact with the eyes or skin. Every battery
may burst or even explode if exposed to fire or other forms of excessive heat. Take care
when handling the batteries. To reduce the risk of injury from mishandling the batteries,
take the following precautions:
- Do not use different brands and types of batteries in the same device
- When replacing the batteries, always replace all the batteries in the device
- Do not use rechargeable or reusable batteries.
- Do not allow children to insert batteries without supervision.
- Follow the battery manufacturer's instructions for proper battery handling and disposal.
CAUTION: The product and batteries should be disposed of at a recycling centre. Do not
dispose of them with normal household waste.
CAUTION: To ensure safe use of the product, wires must be brought at the installation site
according to valid regulations. The installation must only be carried out by an individual
with the appropriate certification in the field of electronics. During installation or when a
fault is detected, the power cable must always be disconnected from the socket (in the
case of direct connection, the relevant circuit breaker must be switched off). Improper
installation can damage the product and cause injury.
CAUTION: Do not disassemble the product, electric shock may occur.
CAUTION: Use only the original power adapter provided with the product. Do not
operate the device if the power cord shows signs of damage. CAUTION: Follow the
instructions in the enclosed manual.
MAINTENANCE
Protect the device from contamination and soiling. Wipe the device with a soft cloth, do
not use rough or coarse materials.
DO NOT USE solvents or other aggressive cleaners or chemicals.
A Declaration of Conformity has been issued for this product. More information can be
found at www.immax.cz
If you have any questions or need advice, please contact us at support@immax.eu
