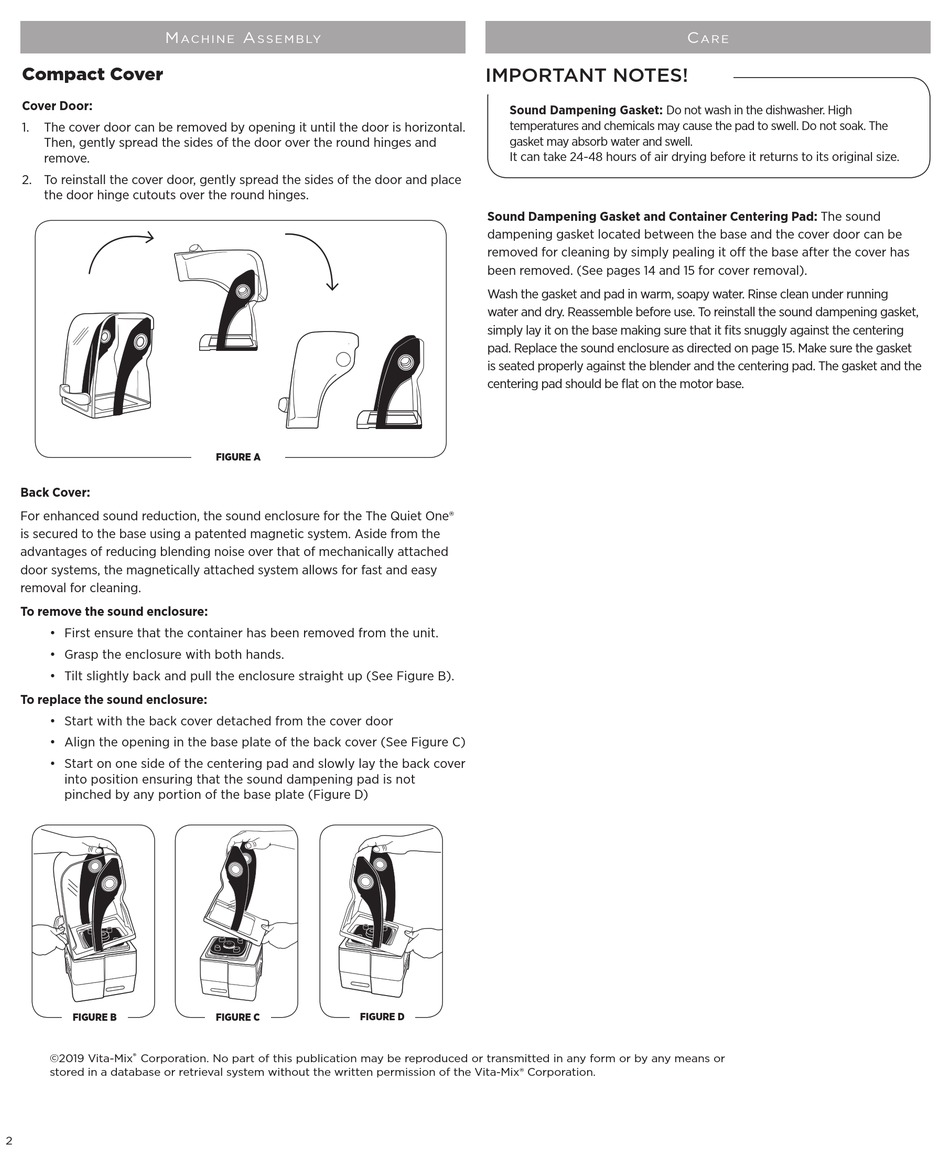

Compact Cover
Cover Door:
1. The cover door can be removed by opening it until the door is horizontal.
Then, gently spread the sides of the door over the round hinges and
remove.
2. To reinstall the cover door, gently spread the sides of the door and place
the door hinge cutouts over the round hinges.
Back Cover:
For enhanced sound reduction, the sound enclosure for the The Quiet One®
is secured to the base using a patented magnetic system. Aside from the
advantages of reducing blending noise over that of mechanically attached
door systems, the magnetically attached system allows for fast and easy
removal for cleaning.
To remove the sound enclosure:
• First ensure that the container has been removed from the unit.
• Grasp the enclosure with both hands.
• Tilt slightly back and pull the enclosure straight up (See Figure B).
To replace the sound enclosure:
• Start with the back cover detached from the cover door
• Align the opening in the base plate of the back cover (See Figure C)
• Start on one side of the centering pad and slowly lay the back cover
into position ensuring that the sound dampening pad is not
pinched by any portion of the base plate (Figure D)
FIGURE B
®
©2019 Vita-Mix Corporation. No part of this publication may be reproduced or transmitted in any form or by any means or
stored in a database or retrieval system without the written permission of the Vita-Mix® Corporation.
2
a
S S e m b ly
FIGURE A
FIGURE D
FIGURE C
IMPORTANT NOTES!
Sound Dampening Gasket: Do not wash in the dishwasher. High
temperatures and chemicals may cause the pad to swell. Do not soak. The
gasket may absorb water and swell.
It can take 24-48 hours of air drying before it returns to its original size.
Sound Dampening Gasket and Container Centering Pad: The sound
dampening gasket located between the base and the cover door can be
removed for cleaning by simply pealing it off the base after the cover has
been removed. (See pages 14 and 15 for cover removal).
Wash the gasket and pad in warm, soapy water. Rinse clean under running
water and dry. Reassemble before use. To reinstall the sound dampening gasket,
simply lay it on the base making sure that it fits snuggly against the centering
pad. Replace the sound enclosure as directed on page 15. Make sure the gasket
is seated properly against the blender and the centering pad. The gasket and the
centering pad should be flat on the motor base.
