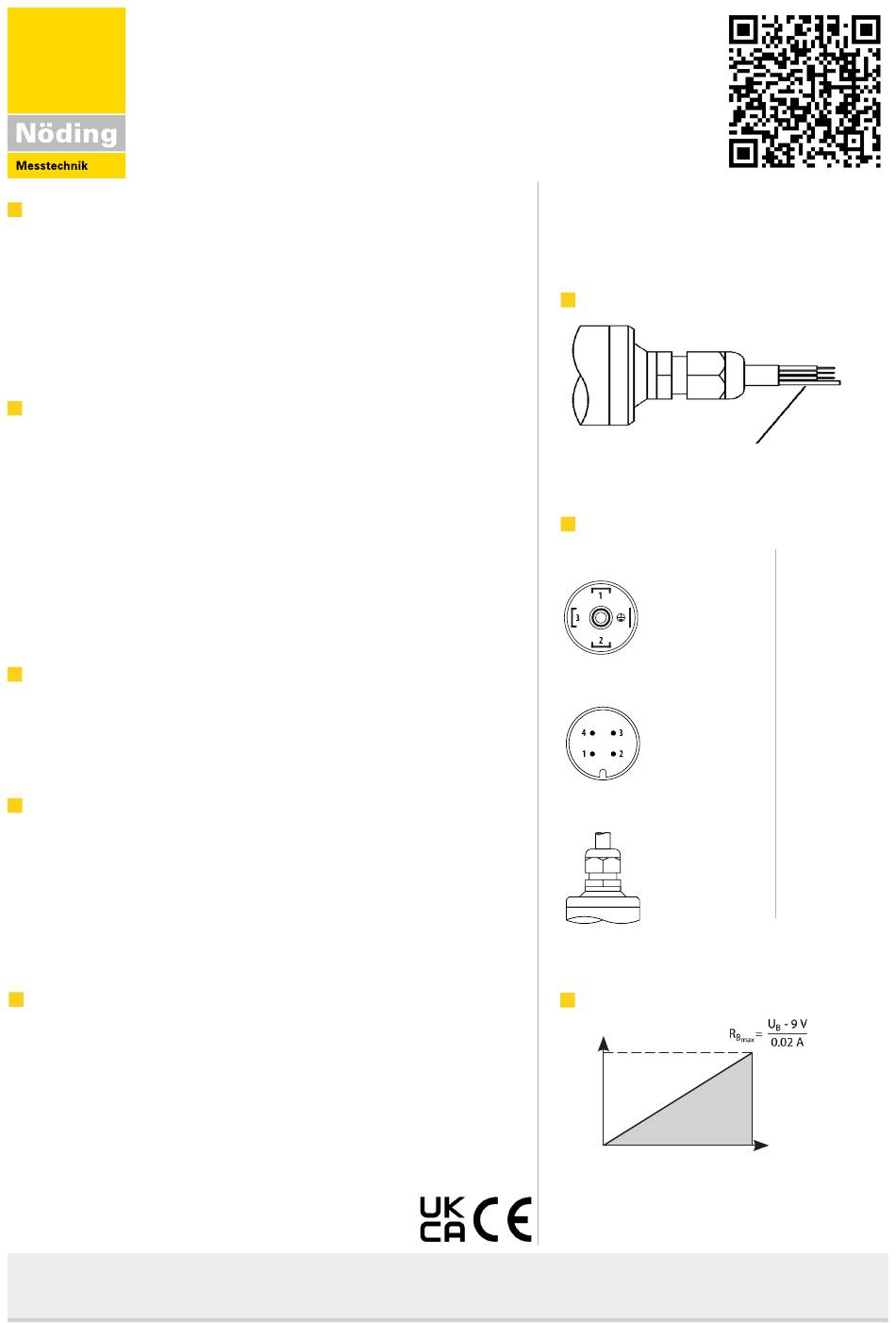

P20
Kurzanleitung Drucktransmitter
Short Guide Pressure Transmitter
SAFETY NOTES
If  the  device  is  used  incorrectly,  application  related  dangers  may  arise. 
The transmitter must be installed, connected, commissioned, operated 
and  maintained  by qualified and authorised personnel only  and  un-
der strict observance of these operating  instructions,  relevant  national 
standards, legal requirements, and where appropriate, the product cer-
tification. 
INSTALLATION
The function of the transmitter is nearly independent of its orientation. 
To  protect  the  process  connection  and  pressure  diaphragm  from  da-
mage,  remove  the  protective  cap  just  before  installation. The  pressure 
transmitter  must  be  installed  in  accordance  with  applicable  national 
guidelines for pressure components. We recommend the use of isolating 
valves, syphons etc. During installation, ensure that no water enters the 
housing. To orientate the valve connector, the union nut must only be 
loosened slightly and the connector then rotated only 180° in each direc-
tion to avoid cable breakage.
INTENDED APPLICATION
The pressure transmitter is designed for measuring absolute and gauge 
pressure of gases, vapours and liquids. Operation is only intended with 
the specifications stated on the product label.
CLEANING
The measuring device is maintenance-free.
Certain media can cause build-up and clogging of the sensor. Accumu-
lated deposits can lead to incorrect measurements. In the case of media 
that  tend  to  form  deposits,  the  sensor  must  be  cleaned  regularly,  for 
example with clear water. Do not use sharp or hard tools or corrosive 
chemicals to clean the sensor.
OPERATING CONDITIONS
Surrounding temperature: -25...80 °C
Storage temperature: -40...85 °C
Medium temperature: -25...100 °C (High temp. version -25...125 °C)
Revision: 11 / 2022 A
Technische Änderungen vorbehalten
Subject to change without prior notice
Nöding Messtechnik GmbH  •  Oldenfelder Bogen 29  •  D-22143 Hamburg, Germany  •  Tel.: +49  40  67 58 51 – 0
Fax: +49  40  67 58 51 – 49  •  Internet: www.noeding-messtechnik.de  •  E-mail: info@noeding-messtechnik.de
Further information can be found using
the QR code or at
www.noeding-messtechnik.de
INSTALLATION NOTE
For cable version: Vented cable with capillary 
Do not close off capillary! Protect from 
ingress of water!
ELECTRICAL CONNECTION
Connector
4...20 mA 2-wires
EN 175301-803A
PIN 1: 
PIN 2: 
U = 9...30V DC
Connector
4...20 mA 2-wires
M12
PIN 1: 
PIN 3: 
U = 9...30V DC
4...20 mA 2-wires
Cable connection
red: 
black: 
U = 9...30V DC
LOAD
R
/ Ω
B
1050
9V
0 ...10 V 3-wires
Signal +
PIN 1: 
in +
Signal –
PIN 2: 
in –
PIN 3: 
out +
U = 15...30V DC
0 ...10 V 3-wires
Signal +
PIN 1: 
in +
Signal –
PIN 3: 
in –
PIN 4: 
out +
U = 15...30V DC
0 ...10 V 3-wires
Signal +
red: 
in +
Signal –
black: 
in –
white: 
out +
U = 15...30V DC
u
B
30V
