AN Collection BETA Montageanleitung Seite 7

Preliminary remarks

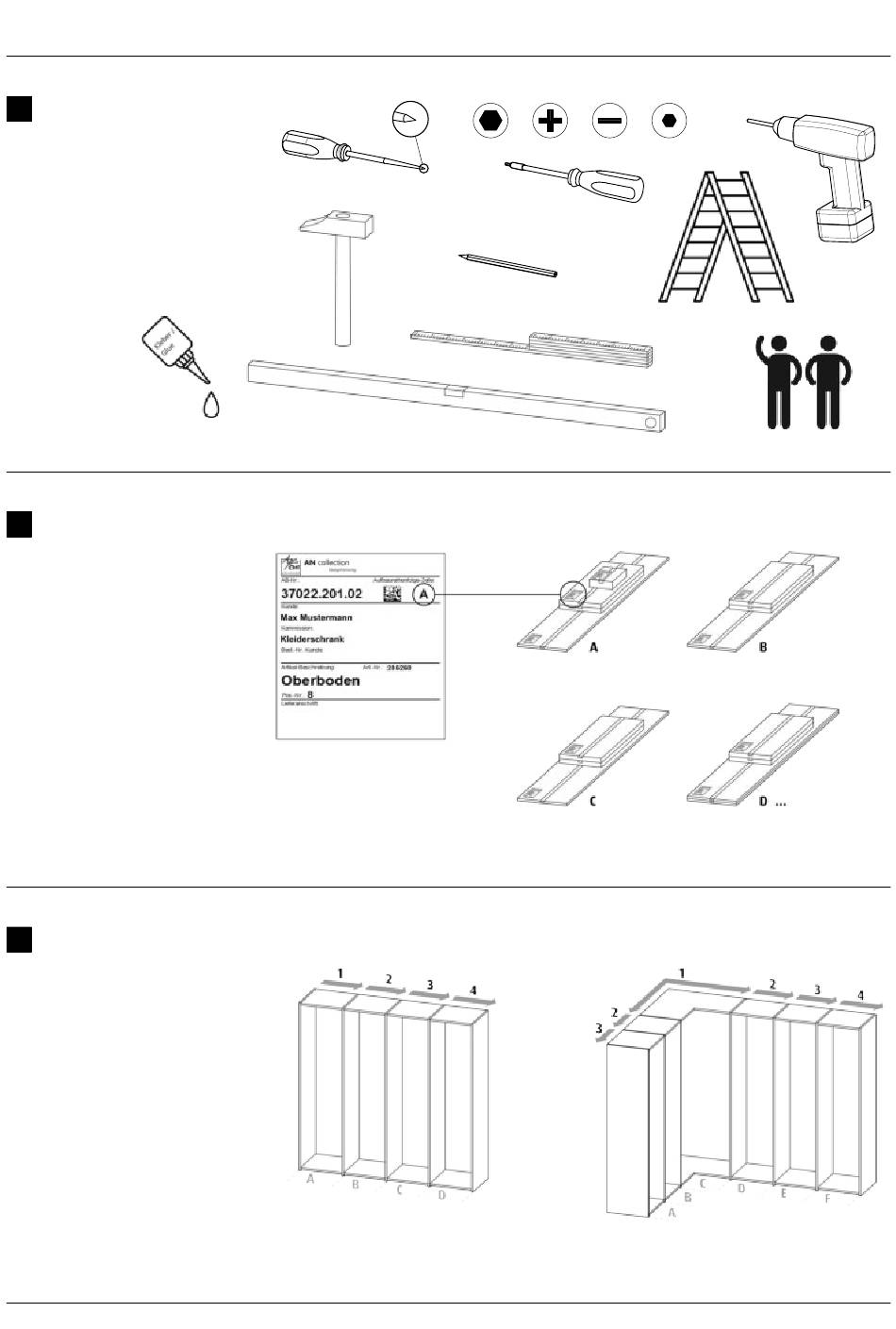

Keep your tools close at hand.
1
You will need a pencil, a point-
brad awl, several hexagonal screwdrivers,
a cross-head screwdriver, a slotted
screwdriver, a drill, glue, a spirit level,
a ladder, a folding rule (mm) and
a hammer.
You will also need the help of a
second person for some of the work
steps.
First, sort all the packages by
2
the letters on their labels. The
letters show the position of every
component in the overall view.
Please note that every plan has been
individually customised and that the
components are not always listed
in the exact order in which they are
also mounted in these mounting
instructions.
There is an overview drawing for
every plan which specifies the position
of every component.
Mount the carcass sides, bases
3
and top panels and, where
necessary, the rear walls now. Normally,
you can proceed from left to
right. However, if your shelving unit
contains a corner element, you must
begin with this and then mount all
the other elements outwards, to the
left and right of it.
Pages 10 – 14
Please take note of the power cables.
If the shelving unit is to be fitted
with lights, the supply lines for the
transformers under the cover panel
must be prepared before assembly.
Pages 9
6
4mm
2,5mm
