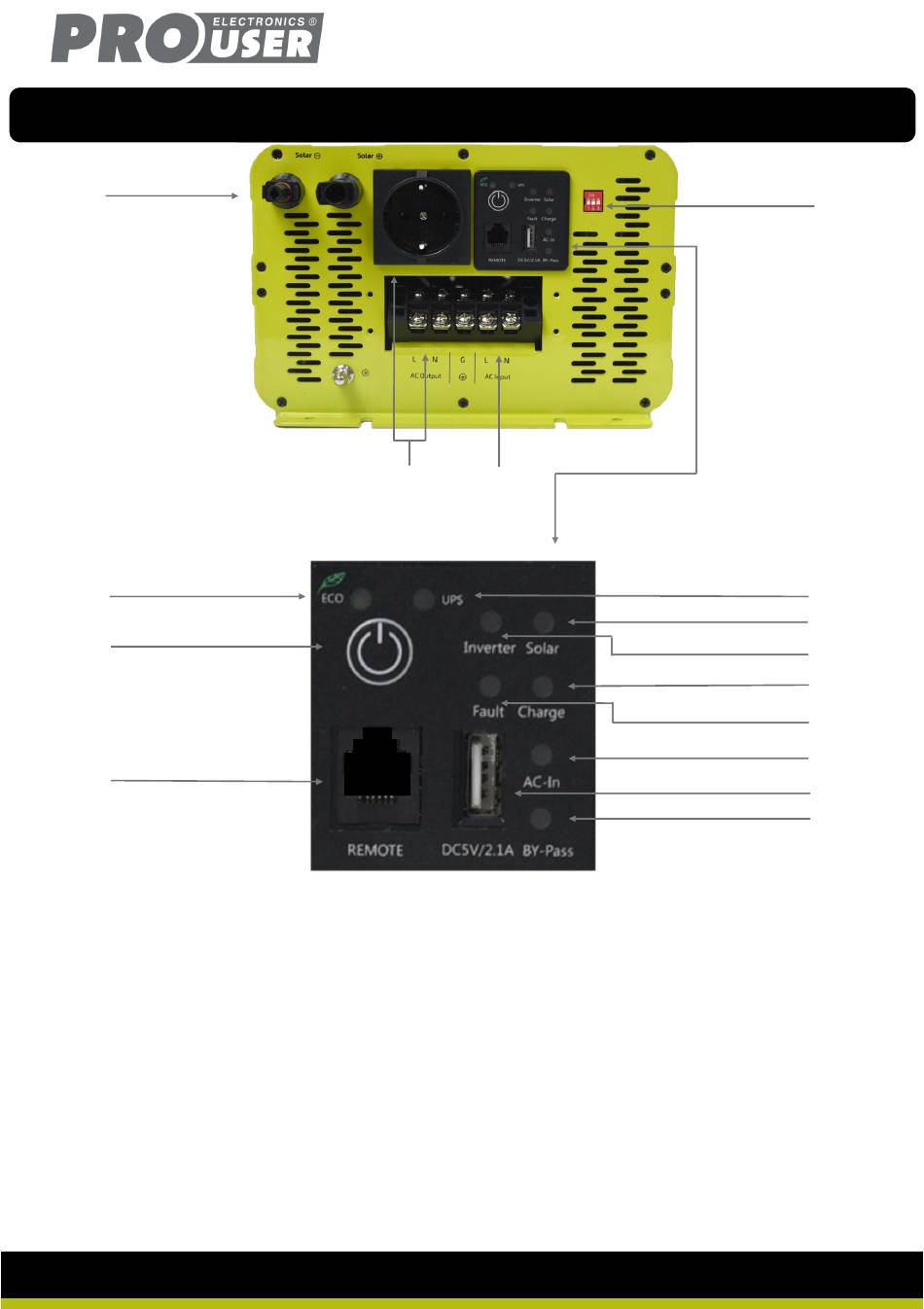

TECHNICAL DESCRIPTION 3000W & HYBRID PSI-SERIES
A
E
F
G
A) Solar panel input (MC4 Hybrid only)
B) Output 230V AC connections
C) Input 230V AC connection
D) Battery setup dipswitches (Hybrid only)
E) ECO mode indication led
F) Power switch
G) Remote control wiring connection
H) UPS indication led
I) Solar charge function indication led (Hybrid only)
J) Inverter function indication led
K) 230V AC charge function indication led (Hybrid only)
L) Fault indication led
M) AC incoming indication led
N) USB output
O) BY-Pass indication led
B C
9
D
H
I
J
K
L
M
N
O
