pROpeR use
The permanent lifting magnet TML 400 R is designed to lift ferromagnetic, metallic loads and may only be
used according to its technical data and determination. Proper use includes adherence to the start-up,
operating, environment and maintenance conditions specified by the manufacturer. The user bears sole
responsibility for understanding the operating manual as well as for proper use and maintenance of the
lifting magnet.
device descRipTiOn
The TML 400 R (Thin Material Lifter) is a switchable lifting magnet with manual actuation for the lifting,
transporting and lowering of ferromagnetic materials. By pressing the lever (F) down, the magnetic field
generated by the permanent magnet can be activated in the lower magnetic plate (C) area.
Thanks to the special design, a very compact magnetic field is generated which develops excellent adhesive
force, especially on thin materials (less than 10 mm). The magnet can be deactivated by first pressing the
safety tab (E) with the heel of the hand and then moving the lever upwards. An adjustable oil damper is
incorporated underneath the safety tab in order to absorb the recoil energy of the lever, especially during use
on thin materials. Additional threads for mounting are located on either front side of the magnet which, if
desired, can be used as holding device. An eyelet is situated on the top of the lifting magnet for attachment
to a crane. The load-bearing capacity of the lifting magnet is equivalent to 1/3 of the maximum breakaway
force of the magnet and thus is equivalent to the standard safety factor 3:1. A groove in the magnetic contact
area (I) allows also for the lifting of round pipes.
16

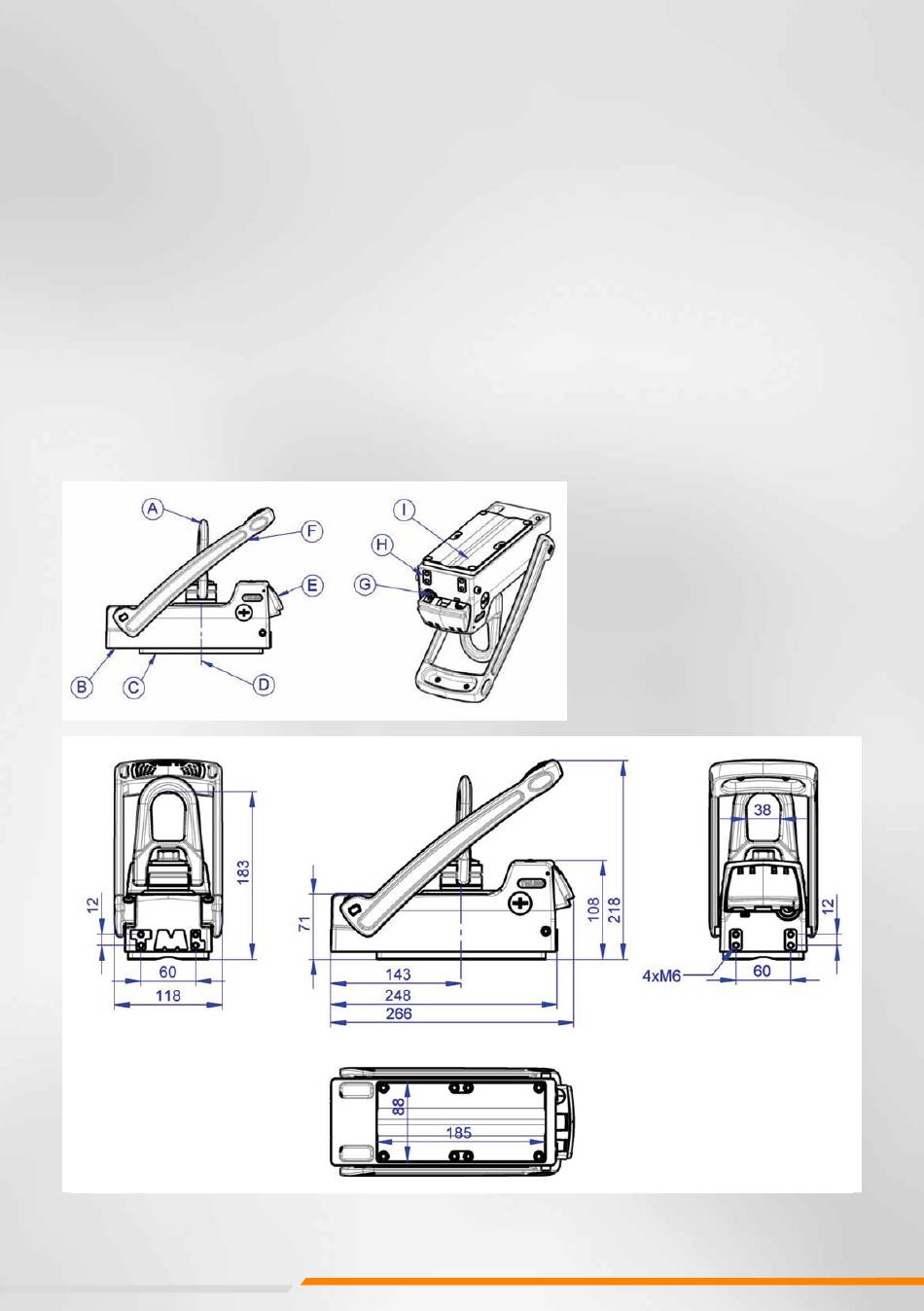

A) Load hook
B) Basic body
C) Magnetic contact area
D) Magnetic center of the magnet
E) Safety tab
F) Lever for activation / deactivation
G) Shock absorber for lever
H) Additional threads for mounting
I) Groove for round pipes
