DSF 32-05 - DFS 40-22

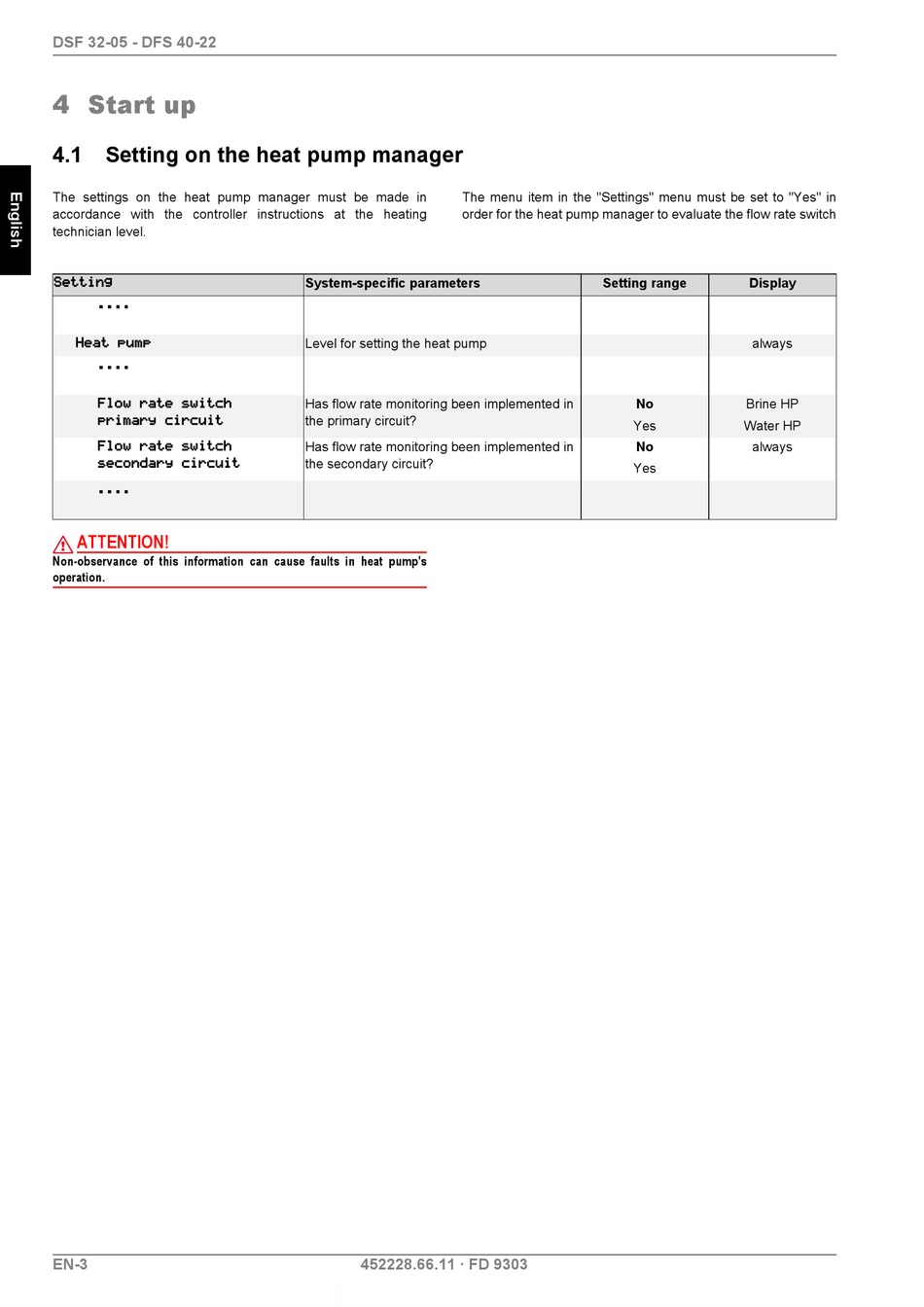

4 Start up
4.1 Setting on the heat pump manager
The settings on the heat pump manager must be made in
accordance with the controller instructions at the heating
technician level.









ATTENTION!
Non-observance of this information can cause faults in heat pump's
operation.
EN-3
The menu item in the "Settings" menu must be set to "Yes" in
order for the heat pump manager to evaluate the flow rate switch
System-specific parameters
Level for setting the heat pump
Has flow rate monitoring been implemented in
the primary circuit?
Has flow rate monitoring been implemented in
the secondary circuit?
452228.66.11 · FD 9303
Setting range Display
always
No Brine HP
Yes Water HP
No always
Yes
