DSF 32-05 - DFS 40-22

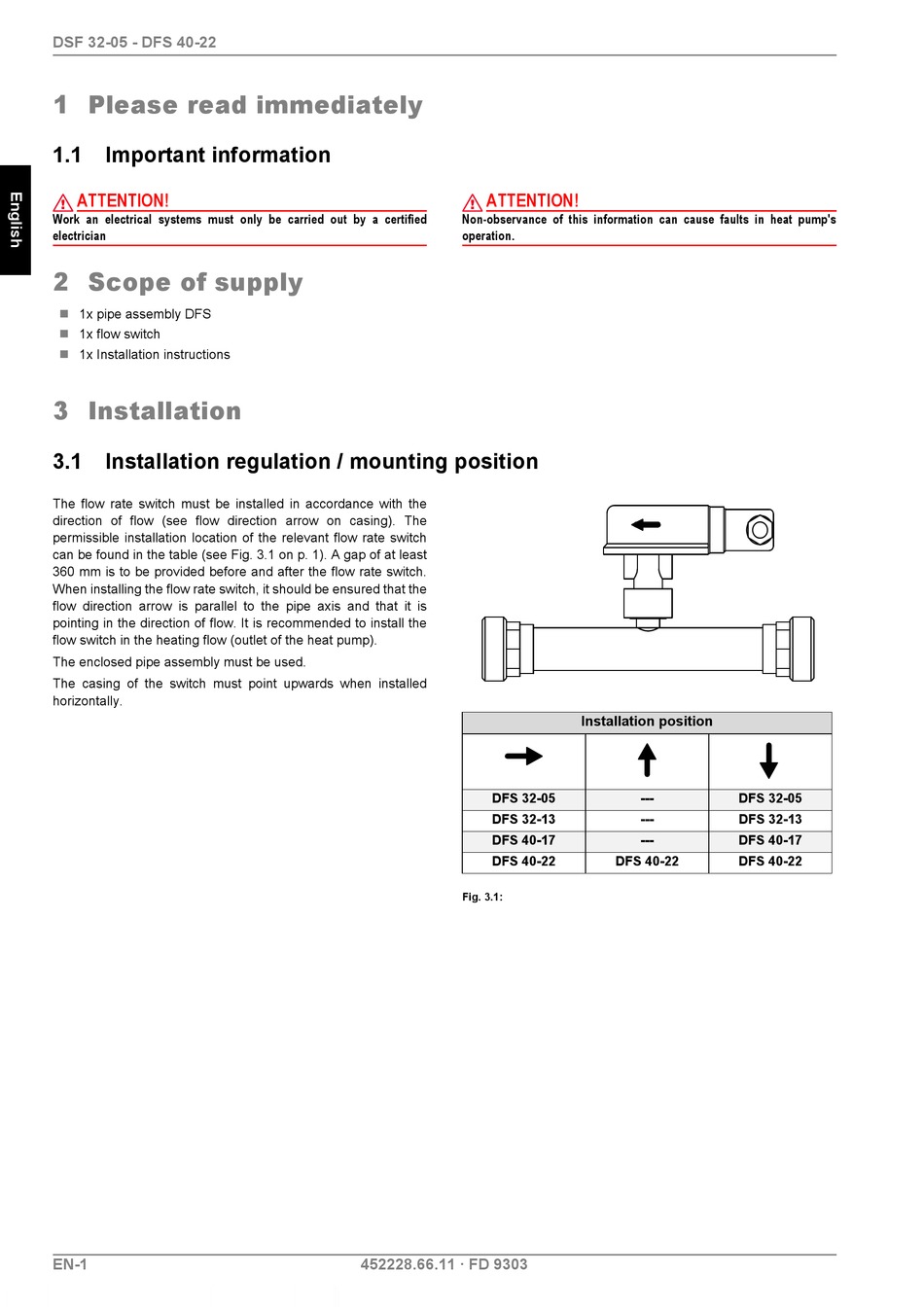

1 Please read immediately

1.1 Important information
ATTENTION!
Work an electrical systems must only be carried out by a certified
electrician

2 Scope of supply

 1x pipe assembly DFS
 1x flow switch
1x Installation instructions


3 Installation

3.1 Installation regulation / mounting position
The flow rate switch must be installed in accordance with the
direction of flow (see flow direction arrow on casing). The
permissible installation location of the relevant flow rate switch
can be found in the table (see Fig. 3.1 on p. 1). A gap of at least
360 mm is to be provided before and after the flow rate switch.
When installing the flow rate switch, it should be ensured that the
flow direction arrow is parallel to the pipe axis and that it is
pointing in the direction of flow. It is recommended to install the
flow switch in the heating flow (outlet of the heat pump).
The enclosed pipe assembly must be used.
The casing of the switch must point upwards when installed
horizontally.
EN-1
ATTENTION!
Non-observance of this information can cause faults in heat pump's
operation.
DFS 32-05
DFS 32-13
DFS 40-17
DFS 40-22
Fig. 3.1:
452228.66.11 · FD 9303
Installation position
--- DFS 32-05
--- DFS 32-13
--- DFS 40-17
DFS 40-22 DFS 40-22
