3.2 Electrical connection

Depending on their use, contacts 1 + 2 must be connected as
F10.1 (primary circuit) or F10.2 (secondary circuit) between
terminal connections X3/G and X3/F10.1 or X3/F10.2 of the heat
pump manager. If the two terminals are not located in the switch
box, the connection on the heat pump manager takes place in
accordance with the table below (Fig. 3.4 on p. 2).

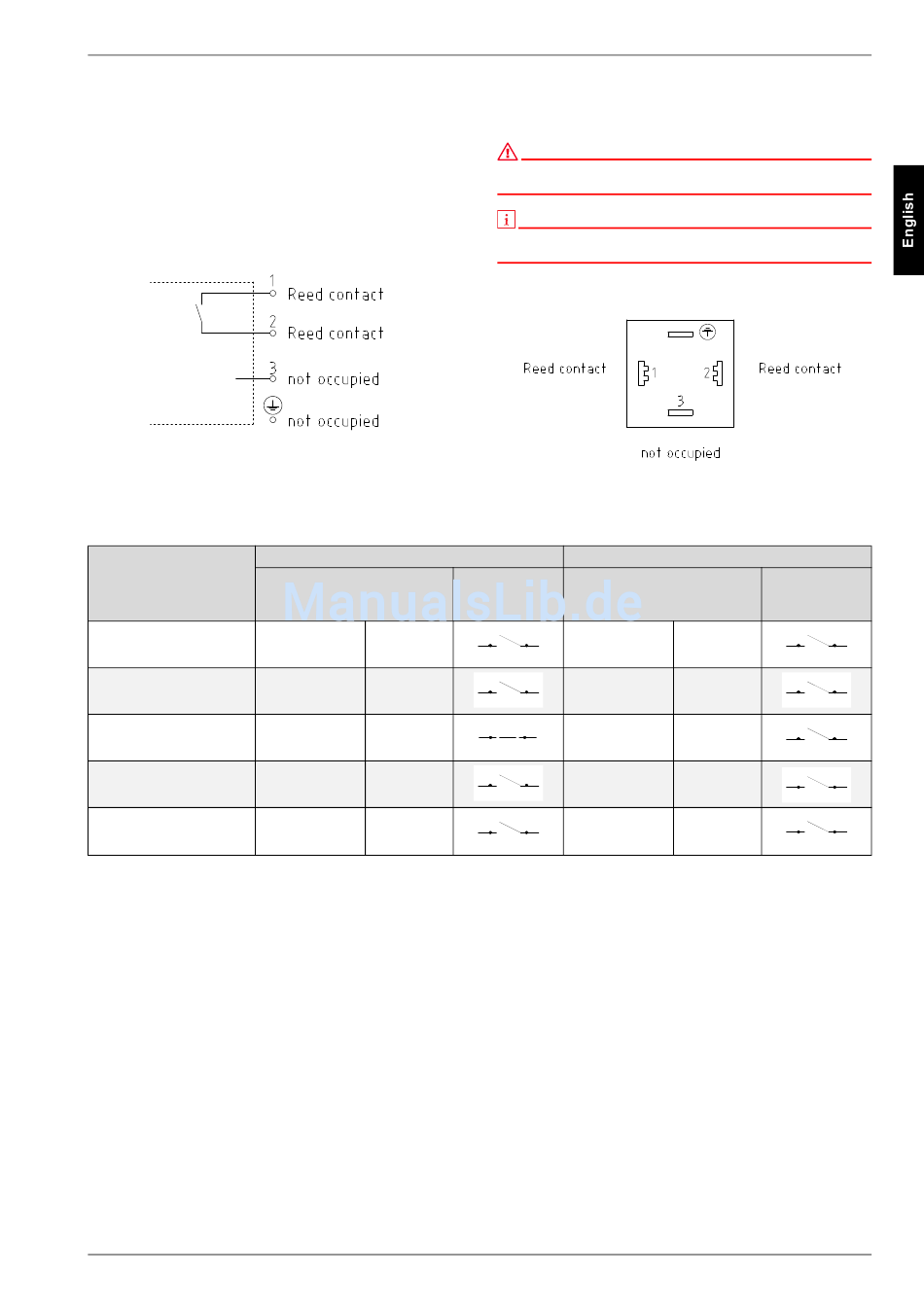

Fig. 3.2: Circuit diagram
Heat Pump type
All heat pumps with pres-
sure sensors
All other
air-to-water heat pumps
All other
water-to-water heat pumps
All other non-reversible
brine-to-water heat pumps
All other reversible
brine-to-water heat pumps
Fig. 3.4: Connection on the heat pump manager
Primary side
Connection
ID8 or
G / 24V AC
X3 / F10.1
- G / 24V AC
ID8
G / 24V AC
already integrated
ID8 G / 24V AC
ID10 G / 24V AC
452228.66.11 · FD 9303
ATTENTION!
Work an electrical systems must only be carried out by a certified
electrician
NOTE
The installation instruction of the heat pump manager must also be
complied with
Fig. 3.3: Plug assignment
Contact in inac-
tive state (no Connection
flow rate)
ID15 or
X3 / F10.2
ID8
ID10
ID10
ID8
already integrated
DSF 32-05 - DFS 40-22
Secondary side
Contact in inac-
tive state (no
flow rate)
G / 24V AC
G / 24V AC
G / 24V AC
G / 24V AC
G / 24V AC
EN-2
