3. Layout, Connections & Jumper Settings

3.3 Jumper Settings

The EX-1186HMVS-2 will be delivered with the setting Bus-Power.
cut the power at the data line.

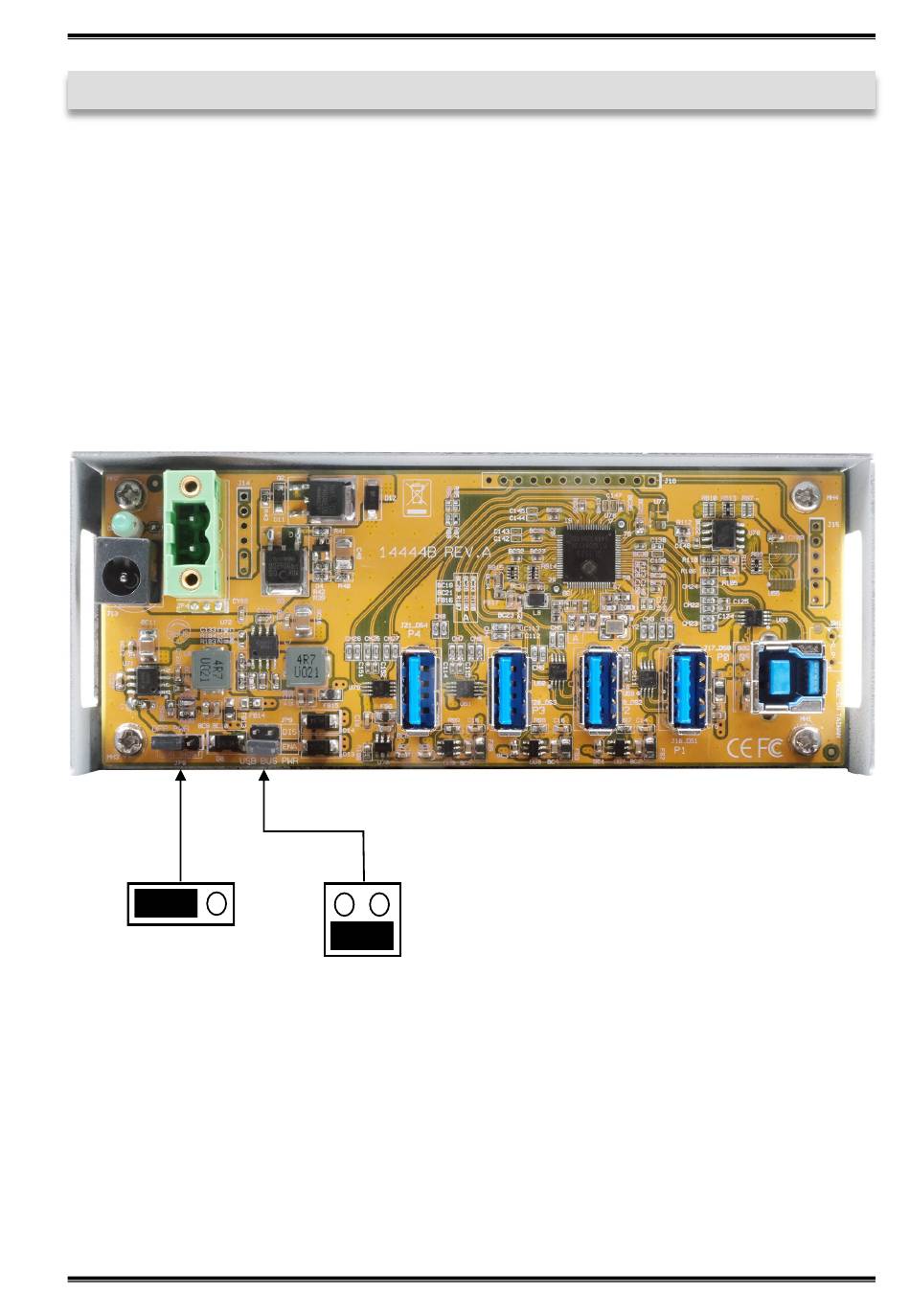

Then you must set the jumper JP9 from ENA (Enable) to DIS (Disable). See the following picture.
Attention! Only with connected Power Supply! Furthermore, you have the option to leave power
on the DFP (Downstream Facing Ports) only when the hub is connected to the host PC and the
host PC is switched on. For this you have to set the jumper JP8 to "HOST". If JP8 is set to "ON",
there is continuous power on the downstream ports. See the following picture.
JP8
ON HOST
