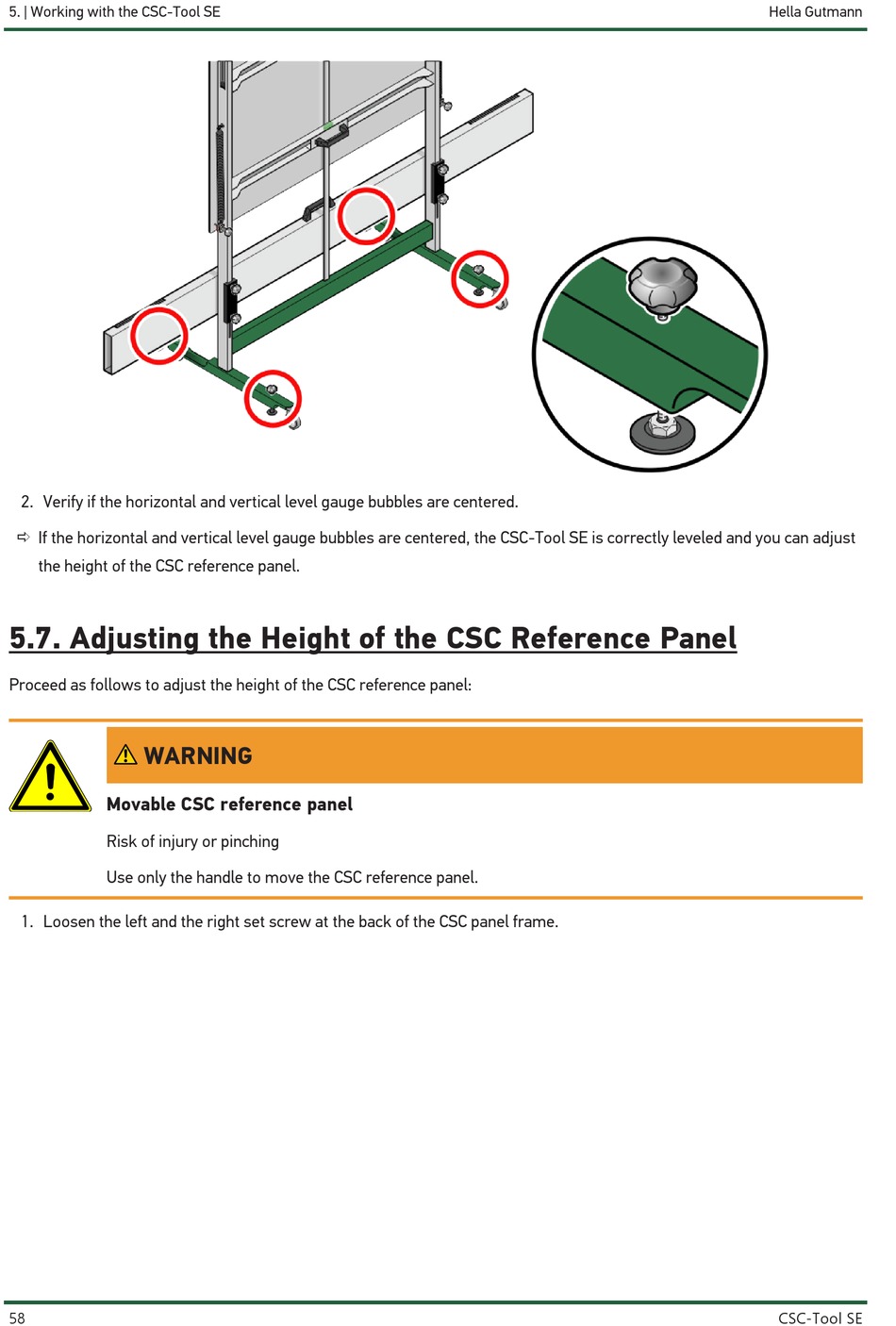

5. | Working with the CSC-Tool SE
2. Verify if the horizontal and vertical level gauge bubbles are centered.
ð If the horizontal and vertical level gauge bubbles are centered, the CSC-Tool SE is correctly leveled and you can adjust
the height of the CSC reference panel.

5.7. Adjusting the Height of the CSC Reference Panel

Proceed as follows to adjust the height of the CSC reference panel:
WARNING
Movable CSC reference panel
Risk of injury or pinching
Use only the handle to move the CSC reference panel.
1. Loosen the left and the right set screw at the back of the CSC panel frame.
58
Hella Gutmann
CSC-Tool SE
