3. Select the system to be calibrated under >Basic settings<.
4. Place the CSC-Tool SE in front of the vehicle.
5. Read the correct distance in the diagnostic device.
NOTICE
Regard the different reference marks depending on the individual manufacturer.
6. Measure the distance between e.g. the center of the wheel hub to the rear edge of the cross member with a tape
measure and position the CSC-Tool SE accordingly.
7. Perform step 6 for the second wheel clamp module SE / WA.
ð Now the CSC-Tool SE is placed at the right distance in front of the vehicle.

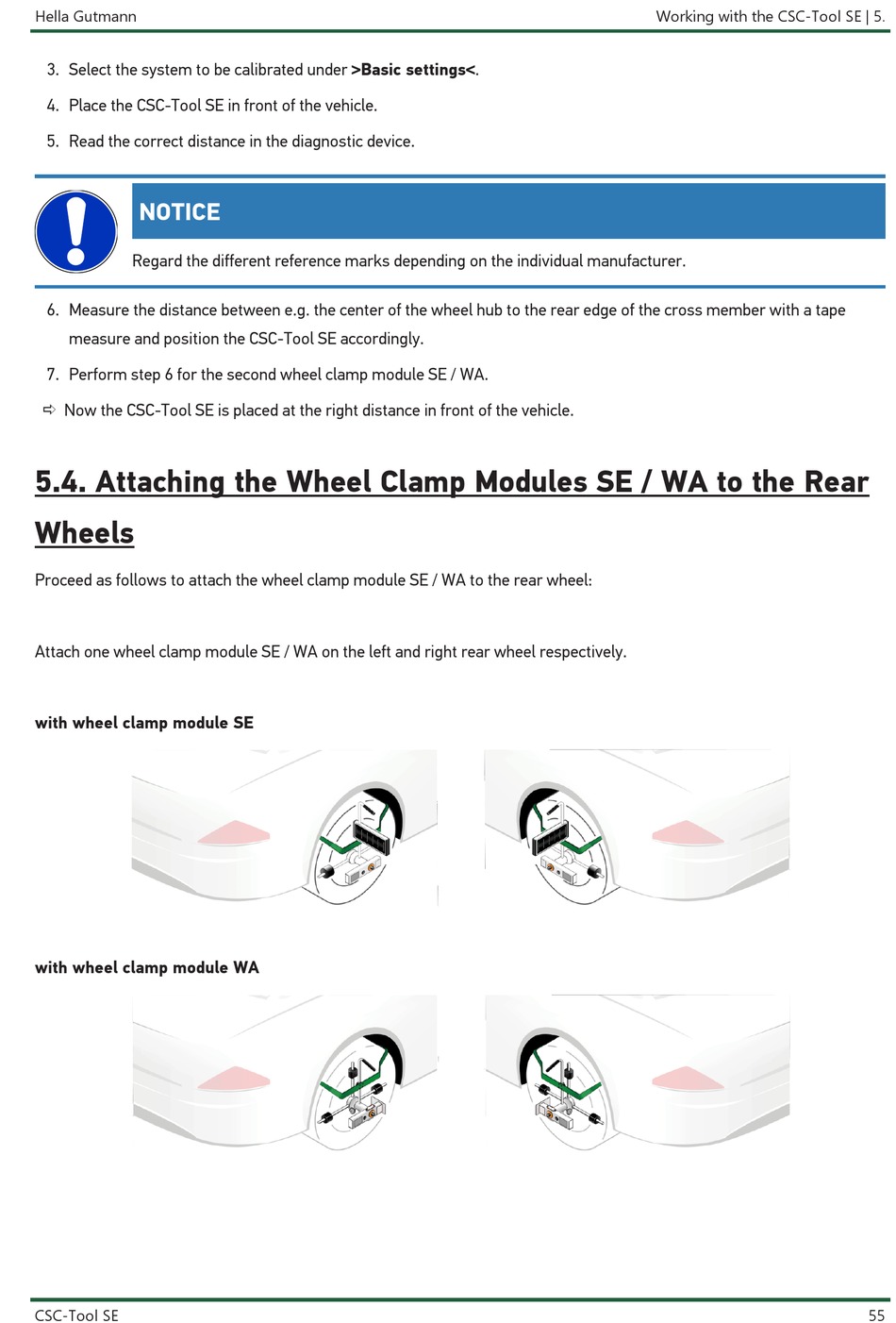

5.4. Attaching the Wheel Clamp Modules SE / WA to the Rear
Wheels
Proceed as follows to attach the wheel clamp module SE / WA to the rear wheel:
Attach one wheel clamp module SE / WA on the left and right rear wheel respectively.
with wheel clamp module SE
with wheel clamp module WA
CSC-Tool SE
