52
54

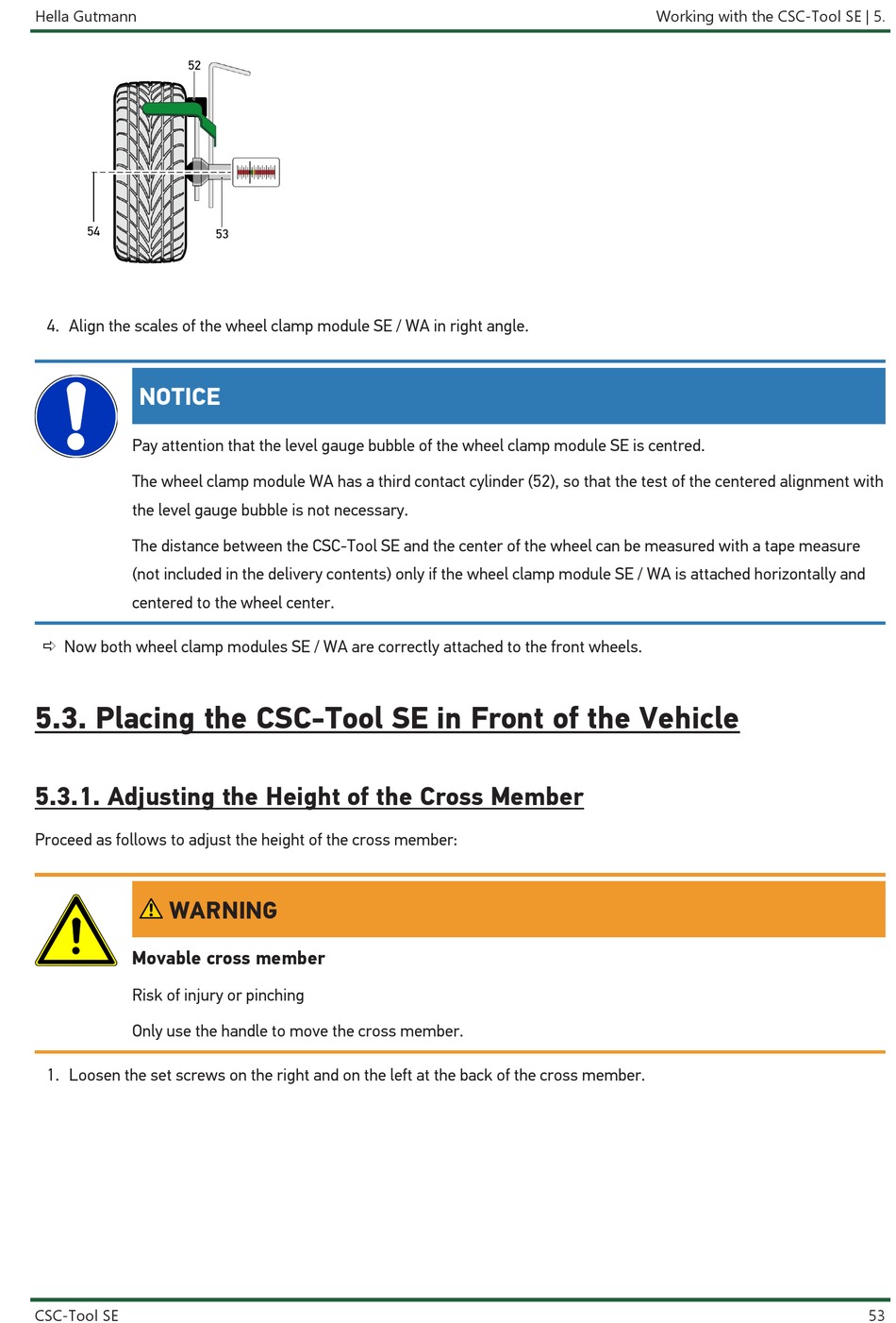

4. Align the scales of the wheel clamp module SE / WA in right angle.
NOTICE
Pay attention that the level gauge bubble of the wheel clamp module SE is centred.
The wheel clamp module WA has a third contact cylinder (52), so that the test of the centered alignment with
the level gauge bubble is not necessary.
The distance between the CSC-Tool SE and the center of the wheel can be measured with a tape measure
(not included in the delivery contents) only if the wheel clamp module SE / WA is attached horizontally and
centered to the wheel center.
ð Now both wheel clamp modules SE / WA are correctly attached to the front wheels.

5.3. Placing the CSC-Tool SE in Front of the Vehicle

5.3.1. Adjusting the Height of the Cross Member

Proceed as follows to adjust the height of the cross member:
WARNING
Movable cross member
Risk of injury or pinching
Only use the handle to move the cross member.
1. Loosen the set screws on the right and on the left at the back of the cross member.
